Electrical Diagrams



Infrared Remote Central Locking

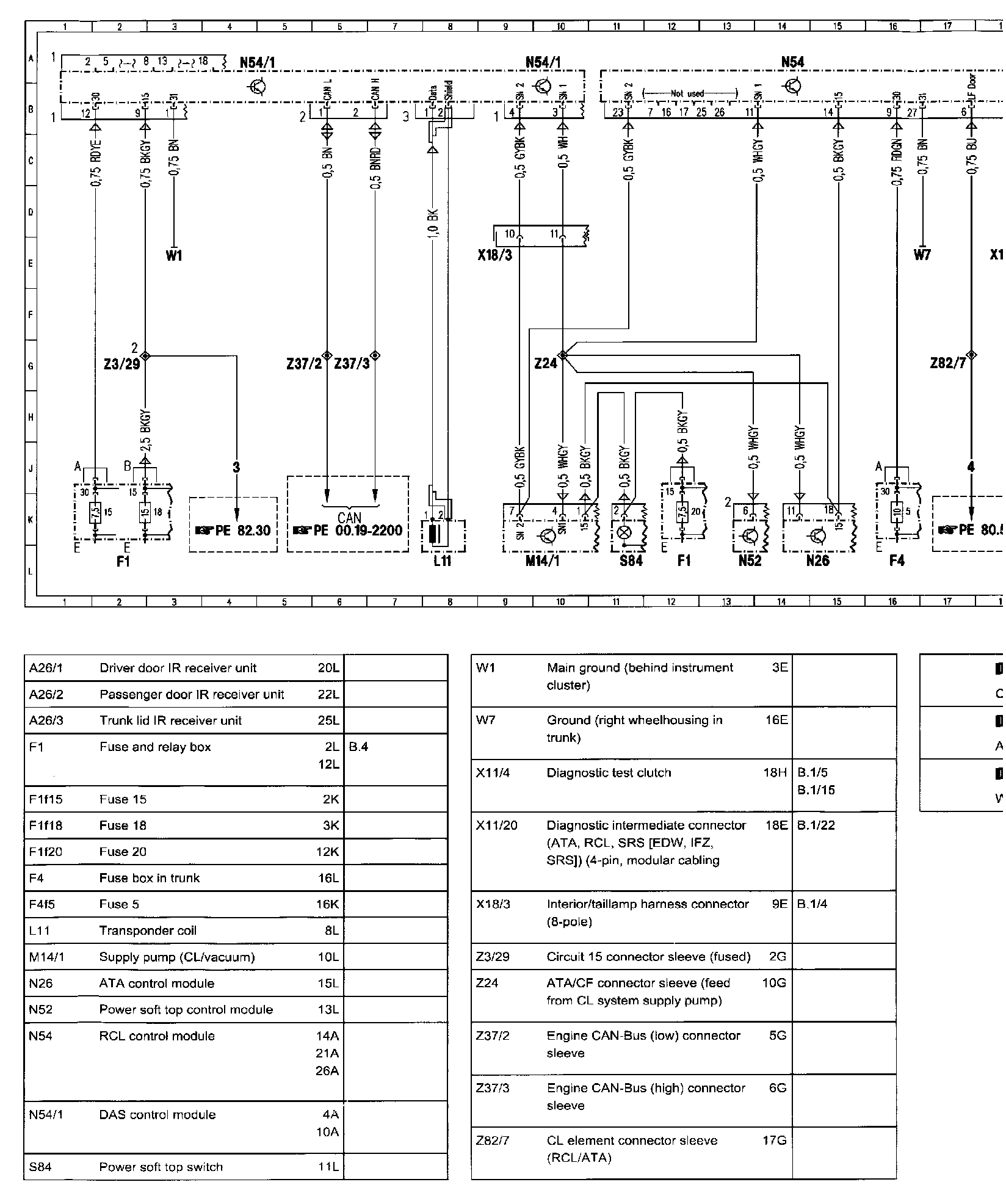

�}=Infrared Remote Central Locking PE80.30-U-2000YD:

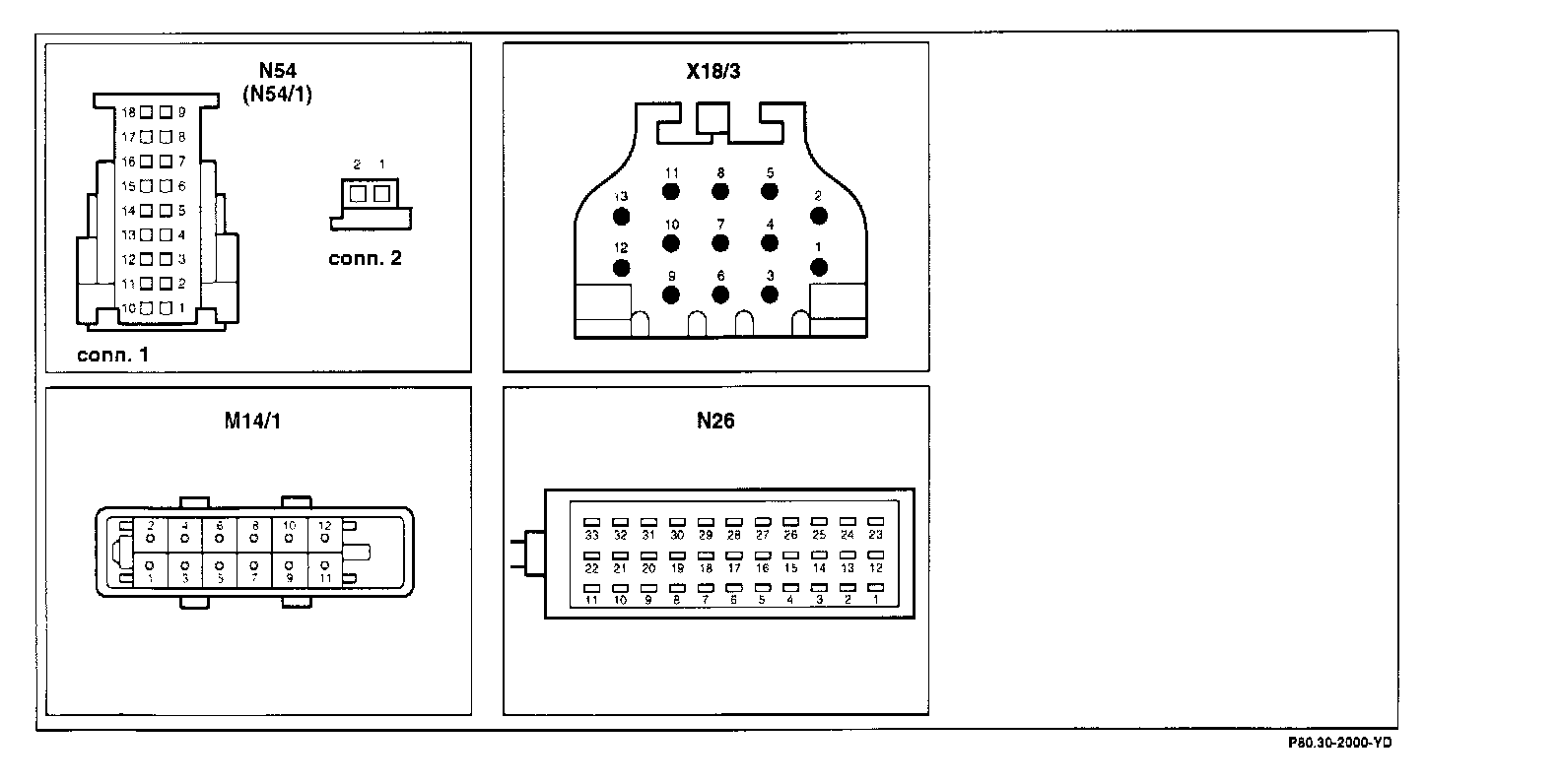

Connector Assignment:

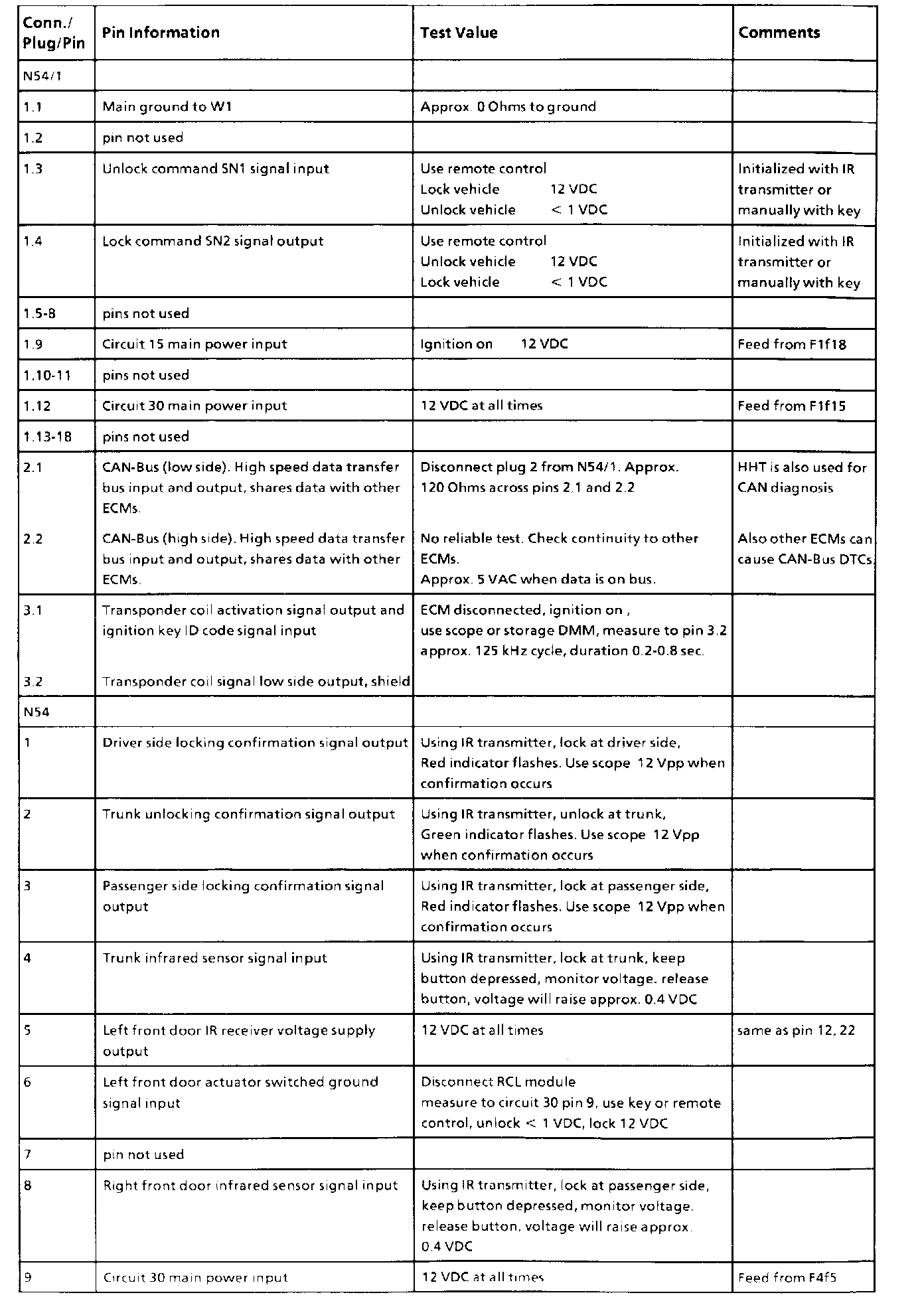

Pin Information, Part 1:







Pin Information, Part 2:
