AR33.30-P-0625-01A Removing and Installing Circlip on Intermediate Shaft

AR33.30-P-0625-01A Removing and installing circlip on intermediate shaft

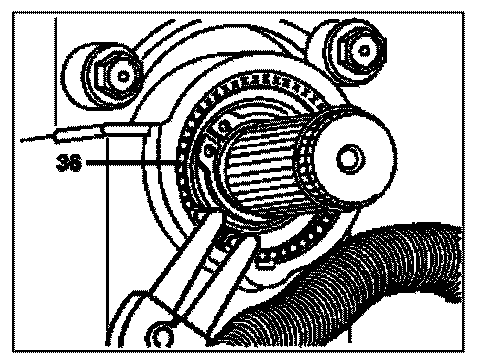

Using pliers, remove and install circlip (36).

Installation:





Ensure correct seating in groove
