AR33.30-P-0620-05D Detaching and Attaching Hexagon Collared Bolt on Front Axle Shaft



AR33.30-P-0620-05D Detaching and attaching hexagon collared bolt on front axle shaft





Detaching




1. Apply service brake.

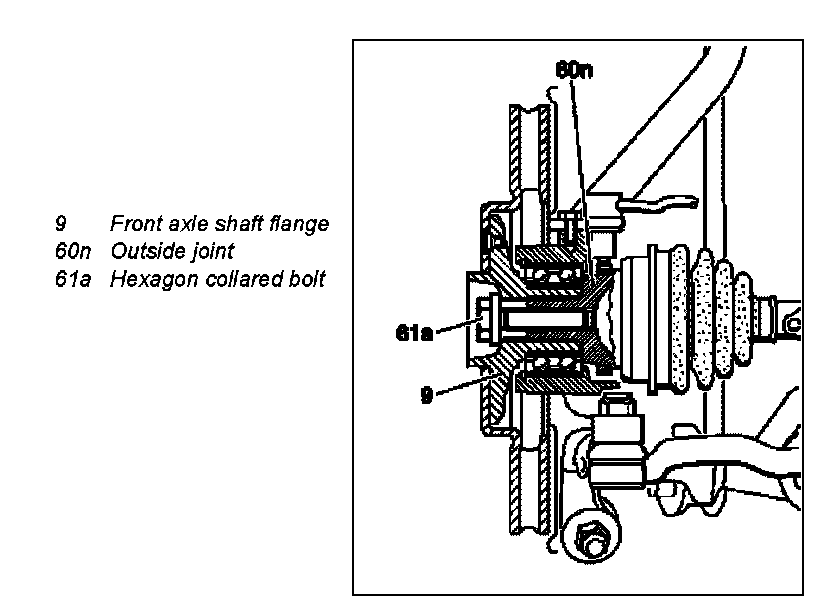

2. Slacken and unscrew hexagon collared bolt (61a) holding front axle shaft

Attaching

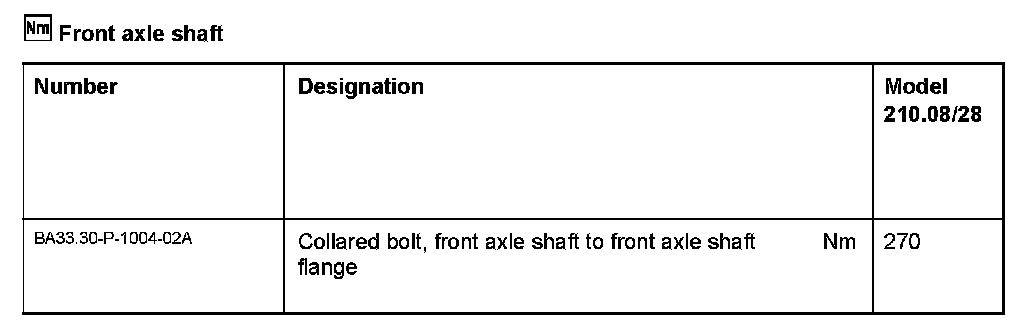

3. Screw in and tighten new hexagon collared bolt (61a). Pay attention to tightening torque.
