Connecting










1 Connect leads.


NOTE: Pay attention to coding and color.


2 Connect connectors.

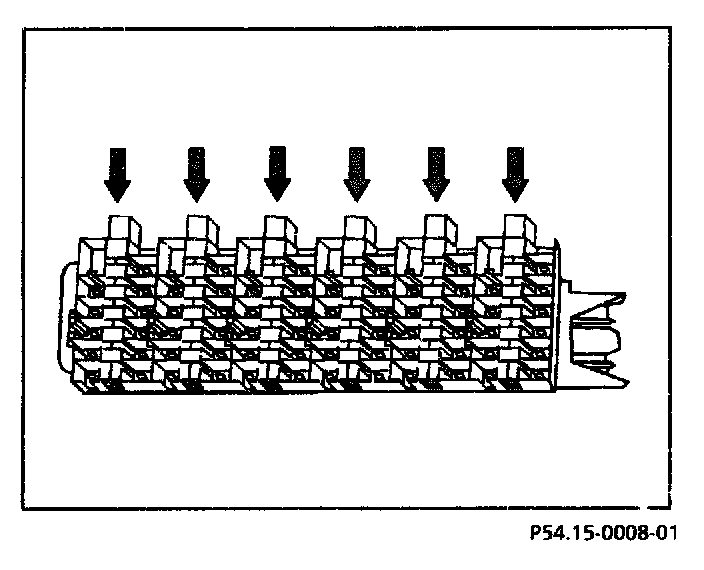

3 Press locking slide in direction indicated by arrow.
Fuse box.
