AR91.30-P-0003F Remove/Install Switches For Left and Right Rear Heated Seat



AR91.30-P-0003F Removing And Installing Switches For Left And Right Rear Heated Seat
- with CODE (872) left and right rear heated seats

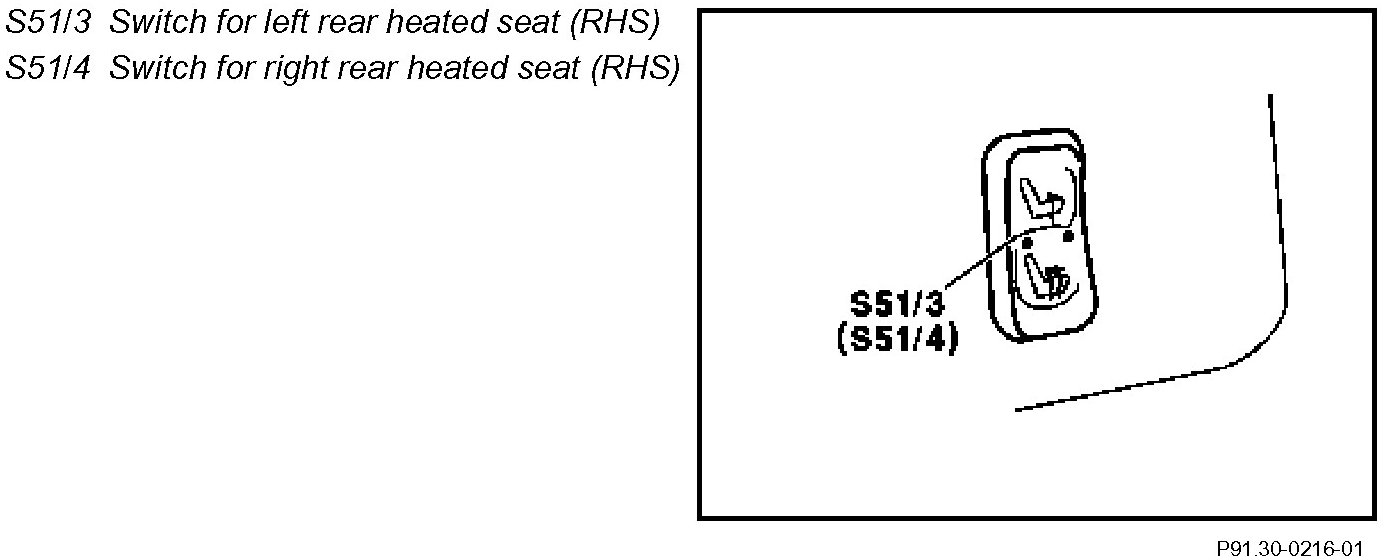

Component Identification:

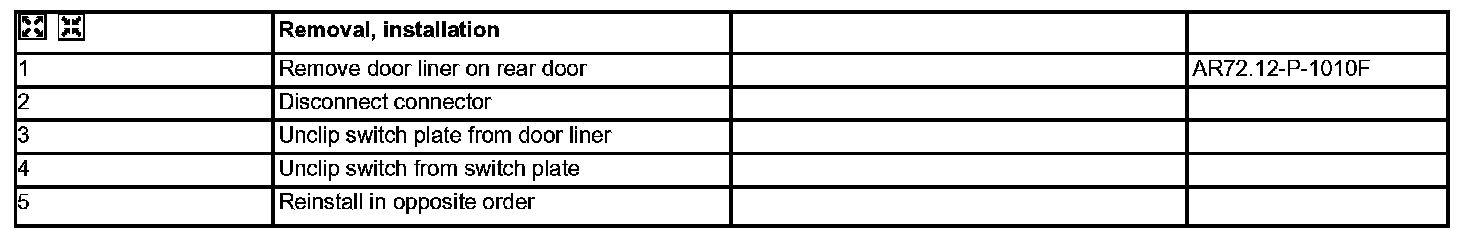

Steps 1 - 5:
