Air Injection Pump Relay: Locations

GF14.30-P-3101-01F Secondary Air Injection Relay Position
- with CODE (494a) USA version
- with CODE (498) as Model Year 97 Japanese version
- with CODE (807) Model year 1997
- with CODE (808) Model year 1998






Position

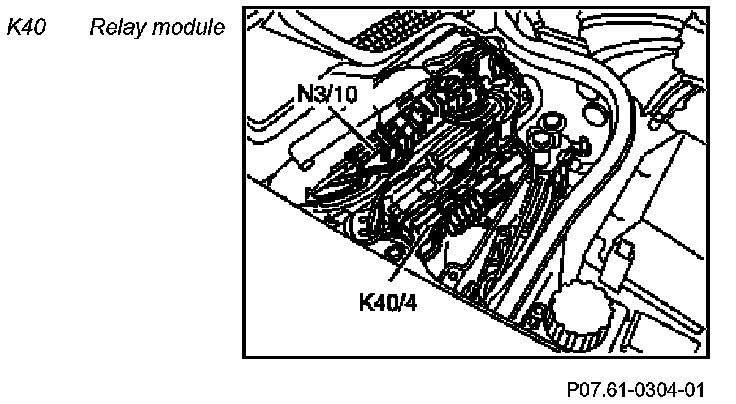

Secondary air injection relay in fuse and relay module (K40/4) or in relay module (K40)
