Fuel Tank, Location




Fuel Tank, Location

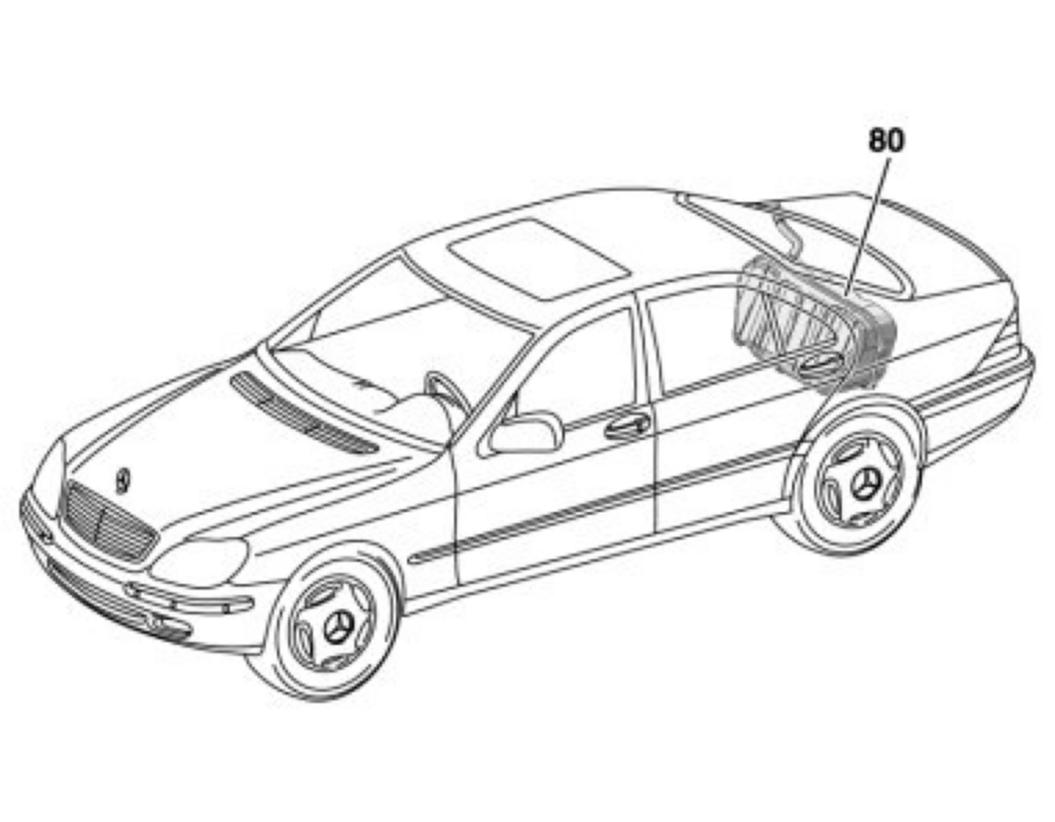

Shown on model 220
80 Fuel tank

Fuel tank position The fuel tank (80) is located in the trunk above the rear axle.
