E 320 4MATIC Wagon (210.282) V6-3.2L (112.941)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>

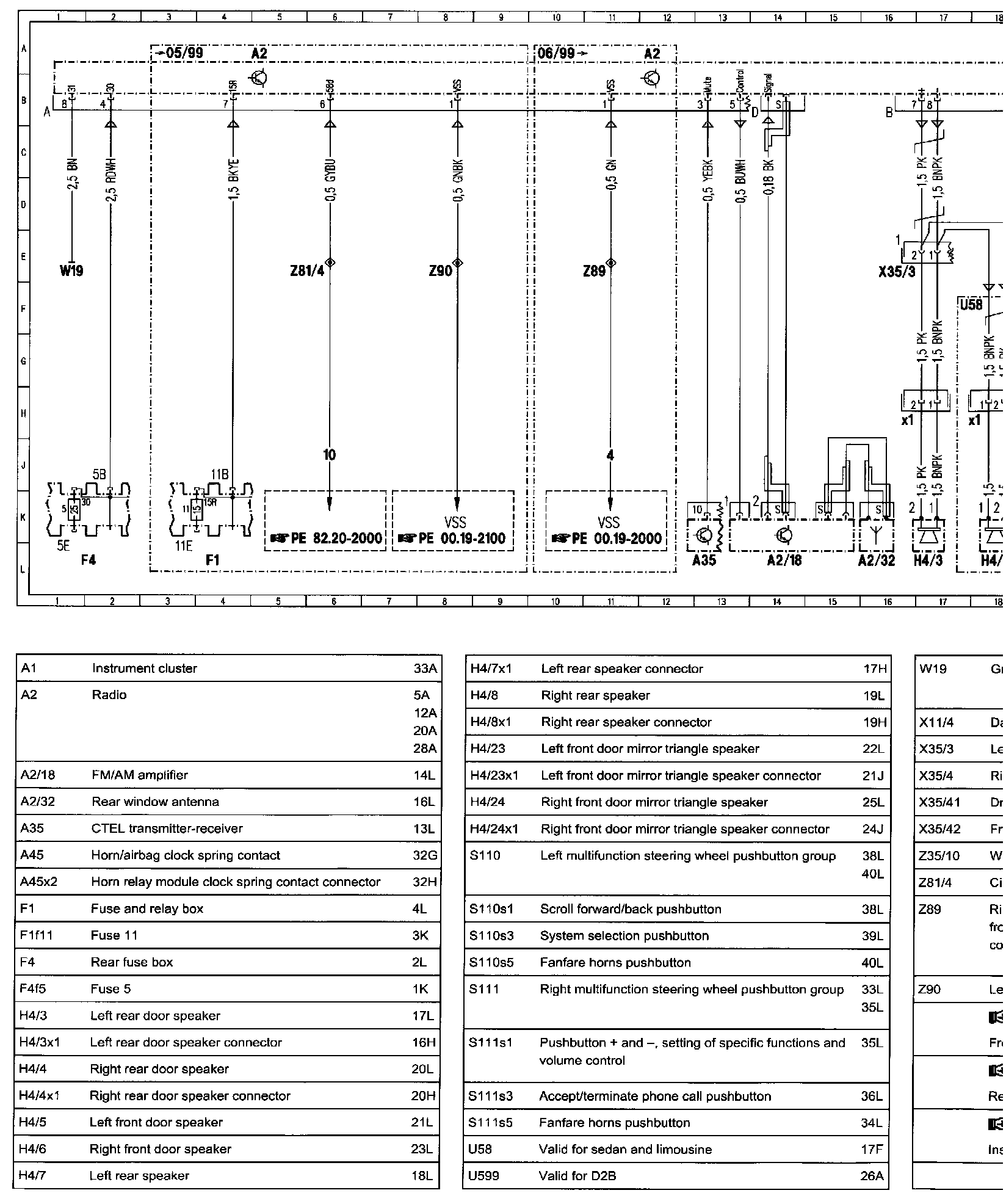

Radio (RD) Control Module PE82.60-U-2000E
Radio (RD) Control Module PE82.60-U-2000E
Radio (RD) Control Module PE82.60-U-2000E
- except CODE (810) Sound system
Jw�B_ǍBW/O Code (810) Sound System - PE82.60-U-2000:
