Mercedes Benz
>>
2001
>>
E 320 4MATIC Wagon (210.282) V6-3.2L (112.941)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
CAN Bus - Engine Compartment PE00.19-U-2200EA
CAN Bus - Engine Compartment PE00.19-U-2200EA

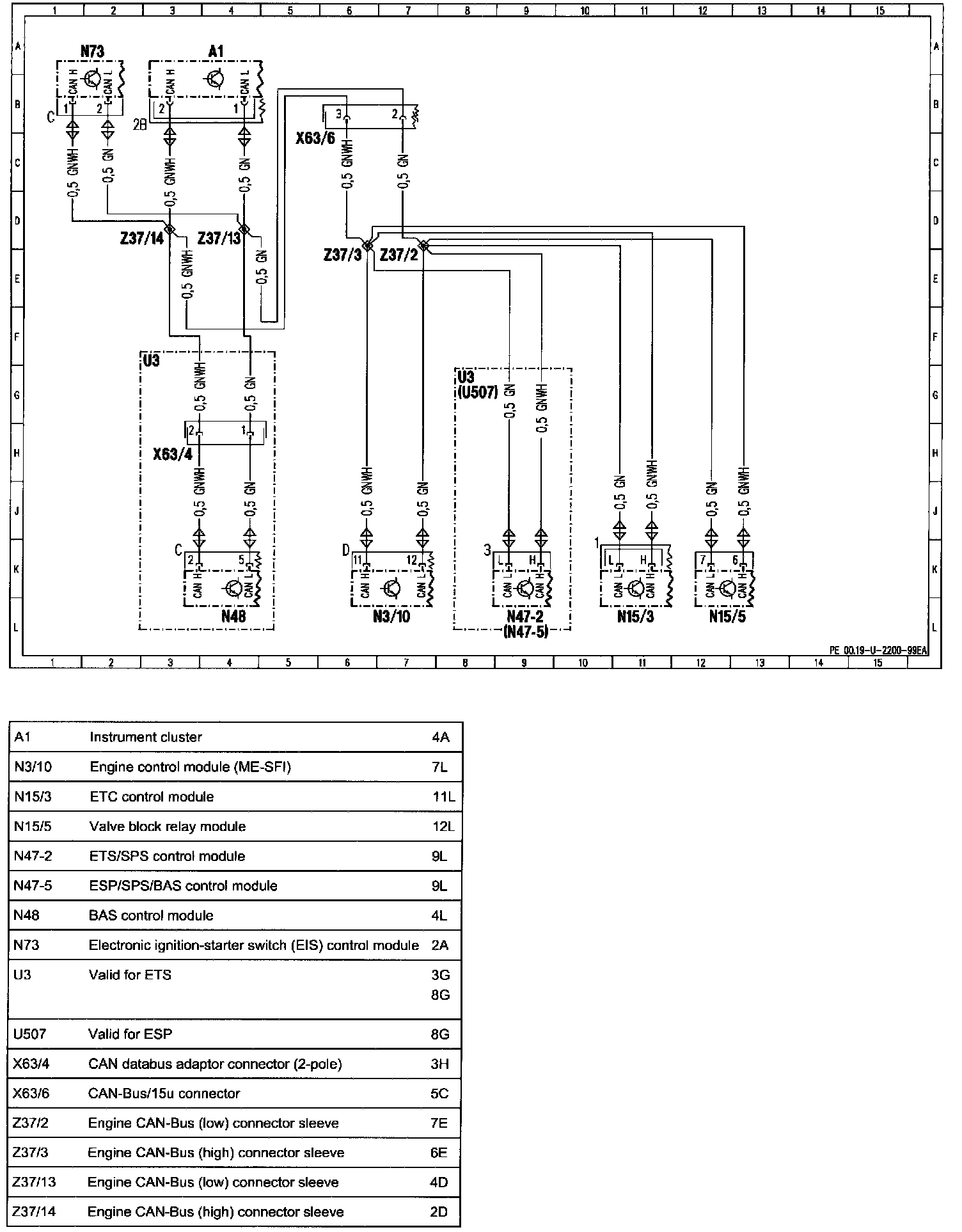

CAN Bus, Engine Compartment - PE00.19-2200EA:
