F. Installing the Optional Voice recognition Module (PTT) Lever

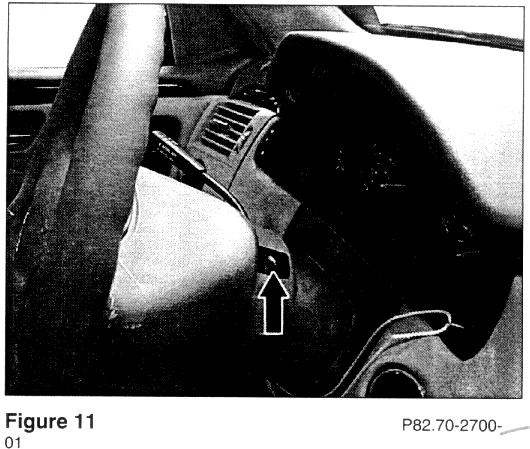

1. Remove the plug covering the PTT mounting hole (Figure 11).

2. Install the PTT lever by fully inserting it pointing toward the roof, then rotating down until it 'clicks' into place.





3. Apply a slight upward rotating pressure on the lever to verify that it is locked into place (Figure 12).

4. Proceed to:

^ Section G if installing the CD changer.

^ Section H if NOT installing the CD changer.
