C. Mounting of Telephone (VRM) Module

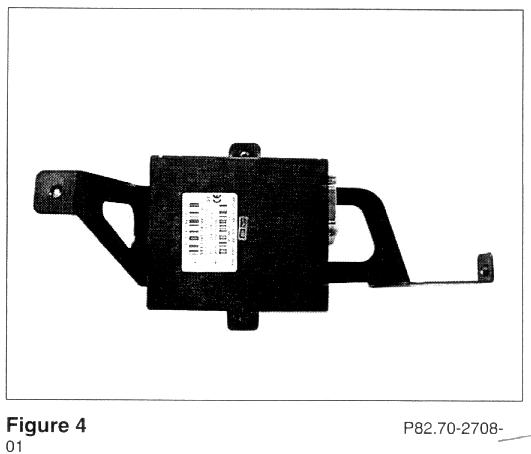

1. Fasten the VRM to the bracket with two M4 x 8 machine screws (Figure 4).

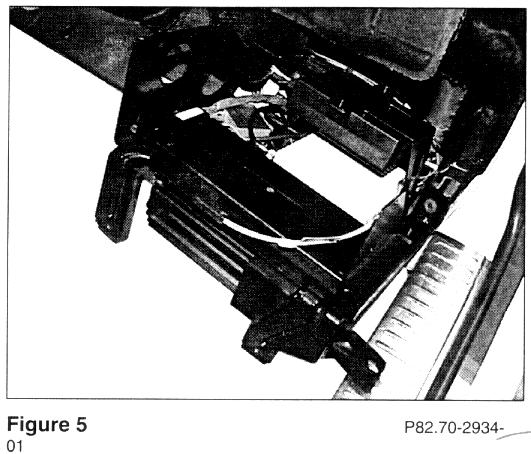

2. Mount the completed VRM assembly to the main bracket assembly with two M4 x 8 machine screws (Figure 5).

3. Connect the 15-pole D-connector to the VRM.
