AR33.20-P-0426A Check Follower Joint of Steering Knuckle Mount (Installed)

Checking Follower Joint Of Steering Knuckle Mount (installed)

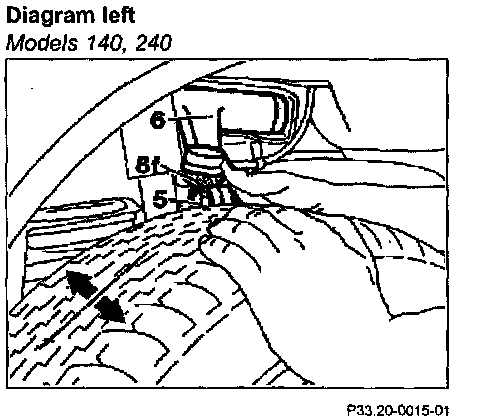

Diagram Left:

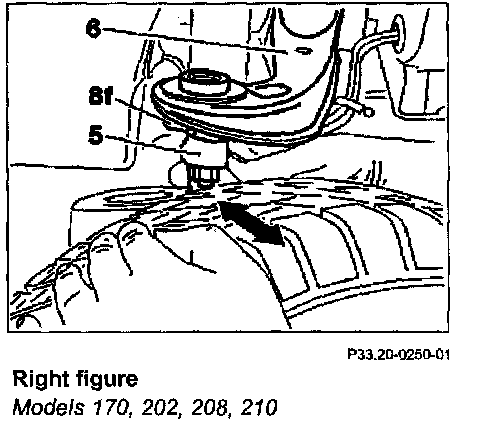

Diagram Right:

1 Raise vehicle at front

NOTE: Check for cracks and damage, if findings are negative: Replace upper transverse control arm (6).

2 Check boot (8f)
3 Check play in follower joint

NOTE:
- By pulling and pushing vigorously on the front wheel while feeling the following joint at the same time.
- If in poor condition, Replace upper transverse control arm (6).
