AR46.10-P-0100B Remove/Install
Steering Wheel

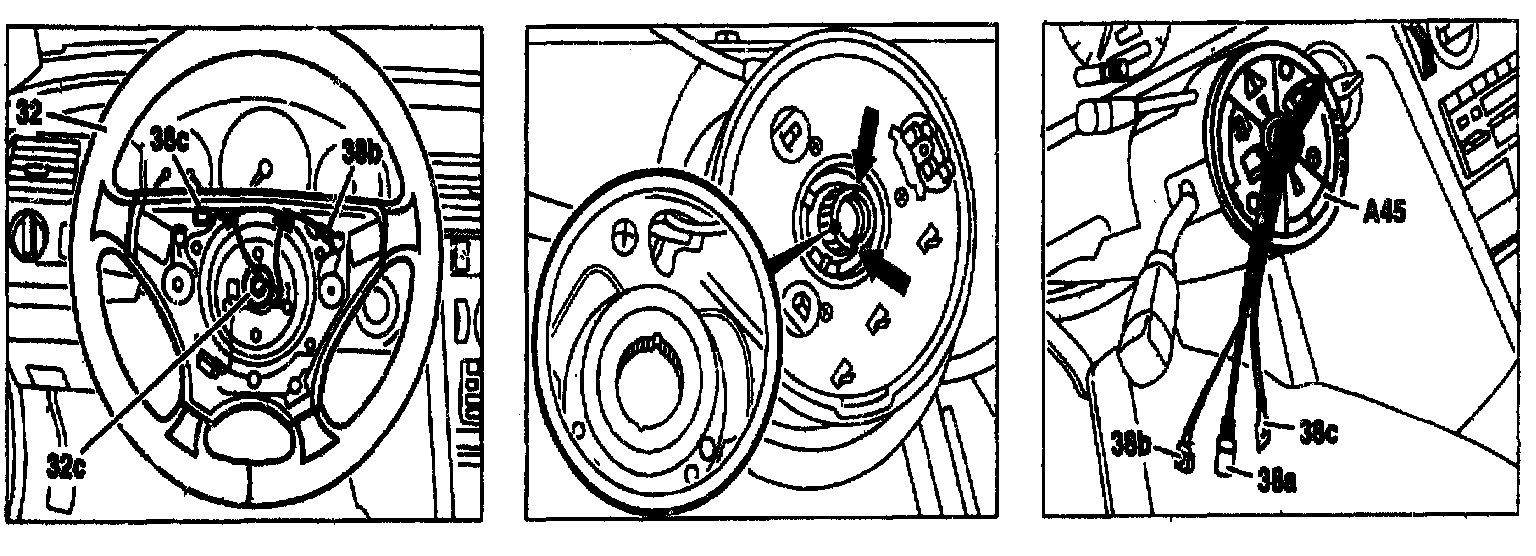

Component Identification:

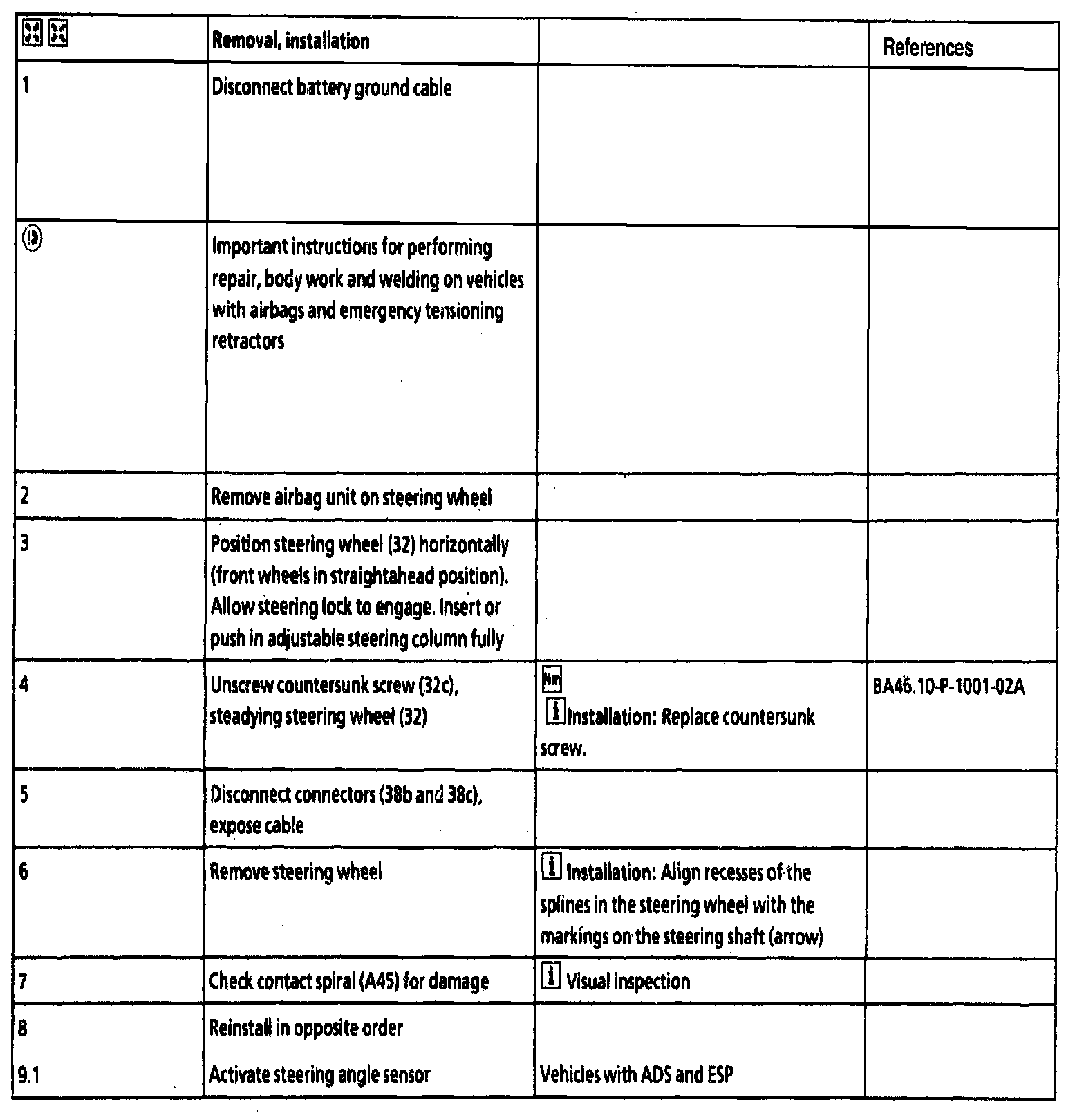

Removal/Installation, Steps 1 - 9.1:

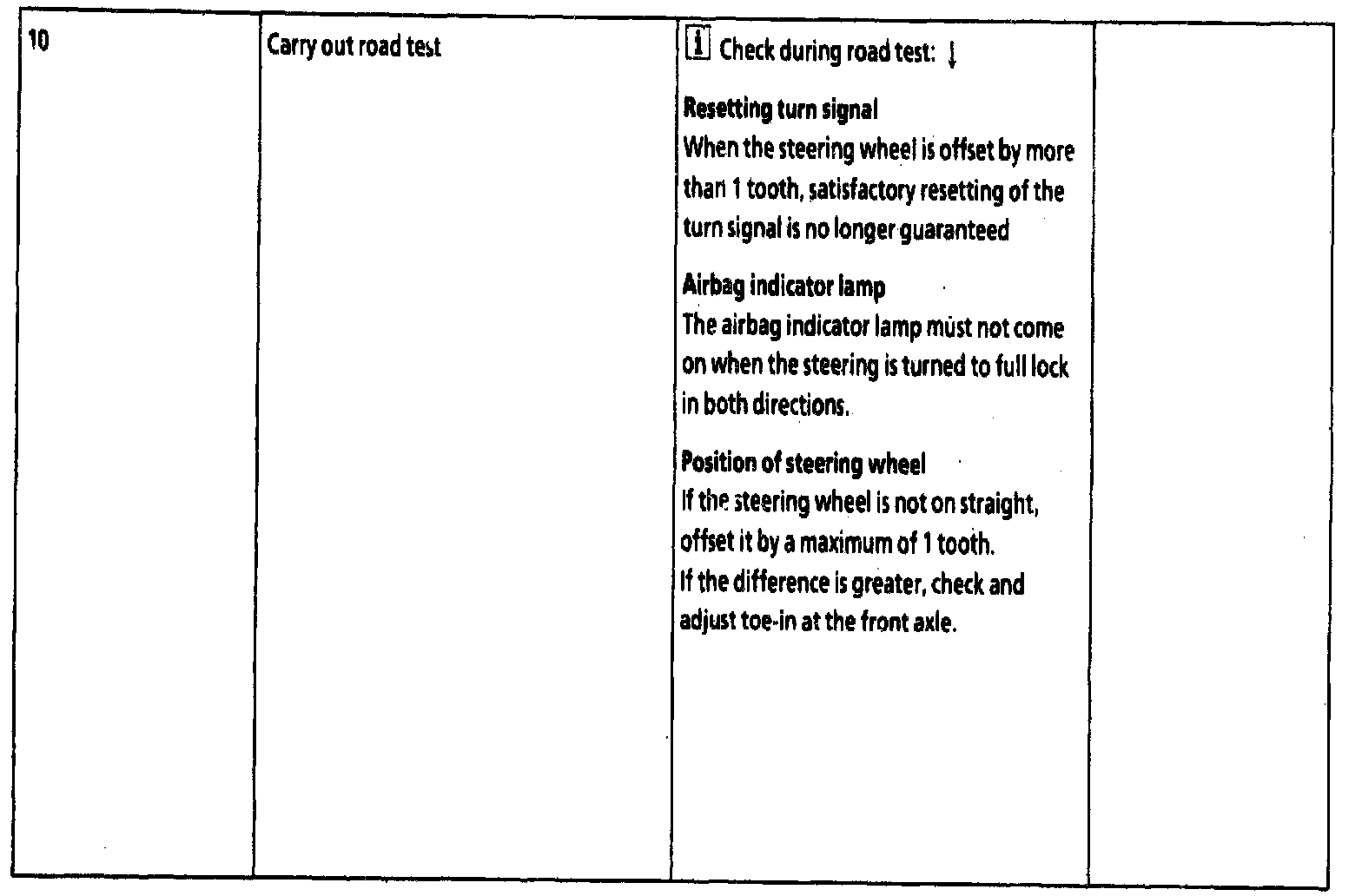

Removal/Installation, Step 10:
References (BA), Steering Wheel:
