AR91.25-P-1630E Remove/Install Control Valve For Multi-Contour Backrest



AR91.25-P-1630E Removing And Installing Control Valve For Multi-contour Backrest
- with CODE (404) orthopaedic front seat backrest, left
- with CODE (405) orthopaedic front seat backrest, right

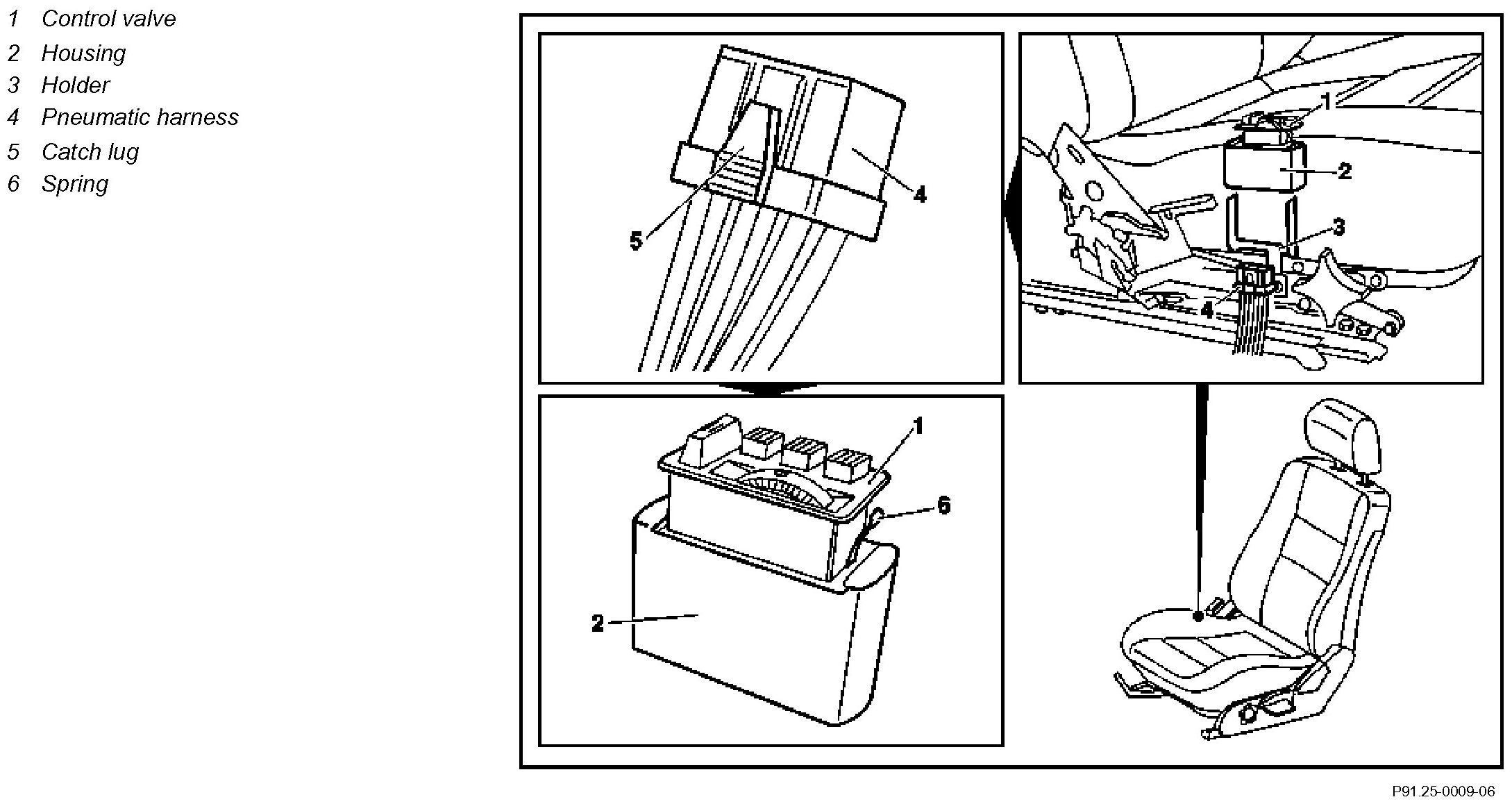

Component Identification:

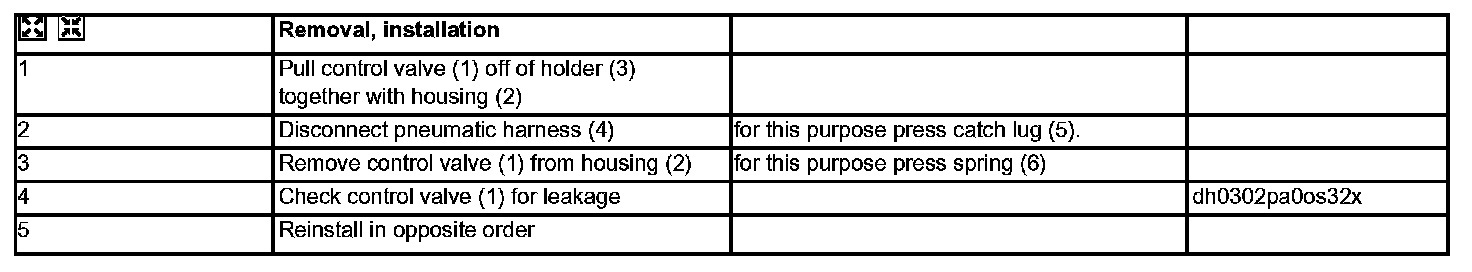

Steps 1 - 5:
