C 230K (202.024) L4-2.3L SC (111.975)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Tank
>>
Description and Operation
>>

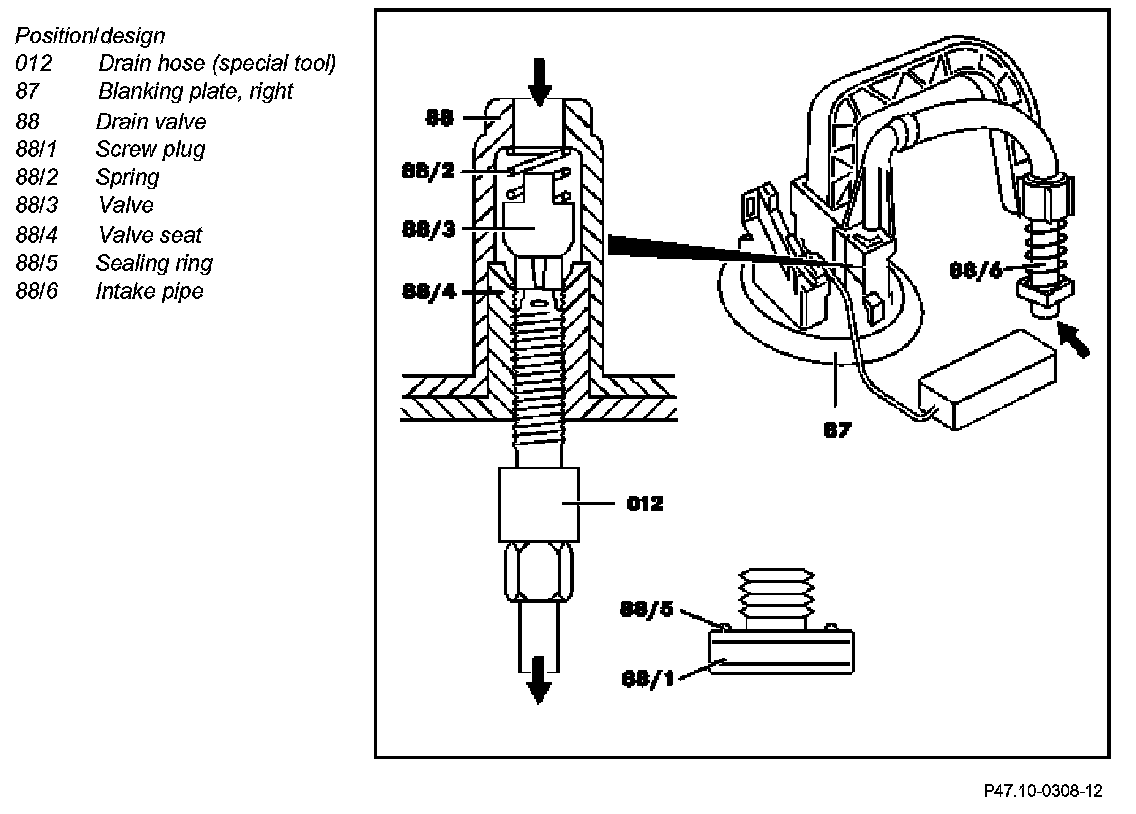

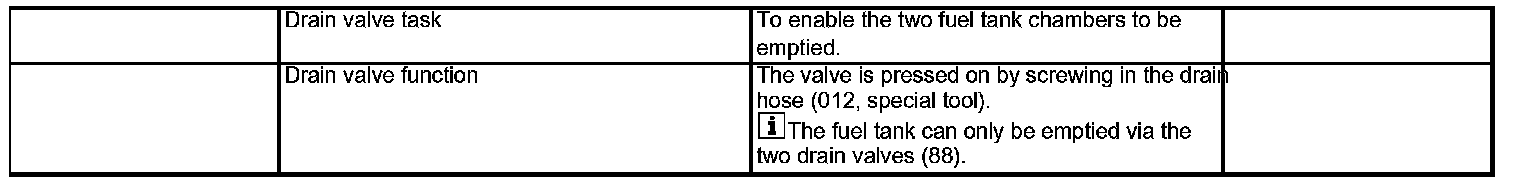

GF47.10-P-3100H Drain Valve Position/Task/Design/Function
GF47.10-P-3100H Drain Valve Position/Task/Design/Function
GF47.10-P-3100H Drain Valve Position/Task/Design/Function
