Air Shutoff Valve, Location

Air Shutoff Valve, Position

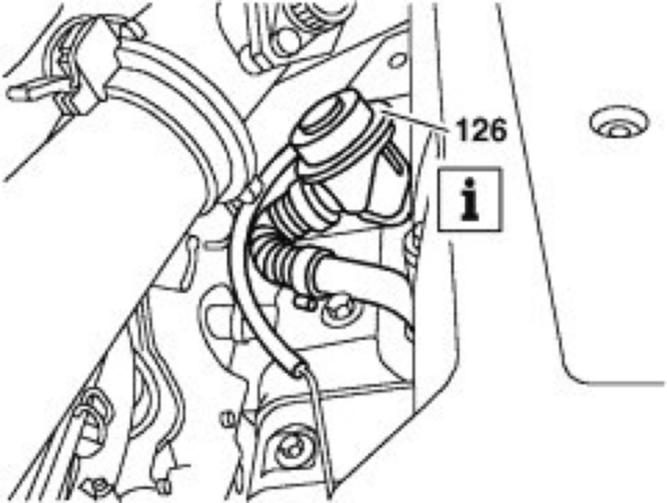

Engine 111 with supercharger
126 Air shutoff valve

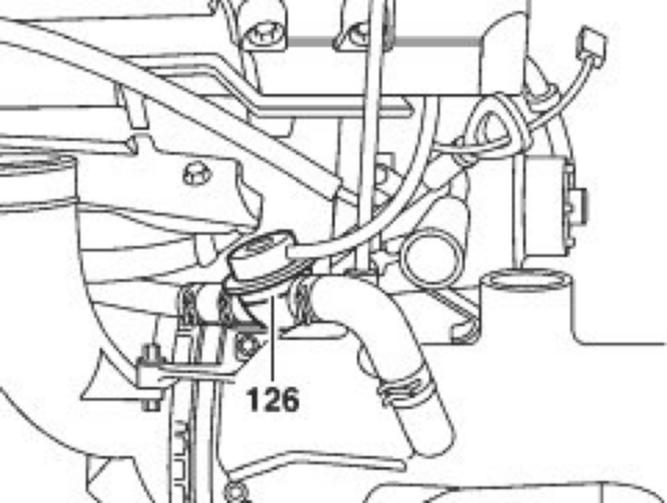

Engine 111
126 Air shutoff valve

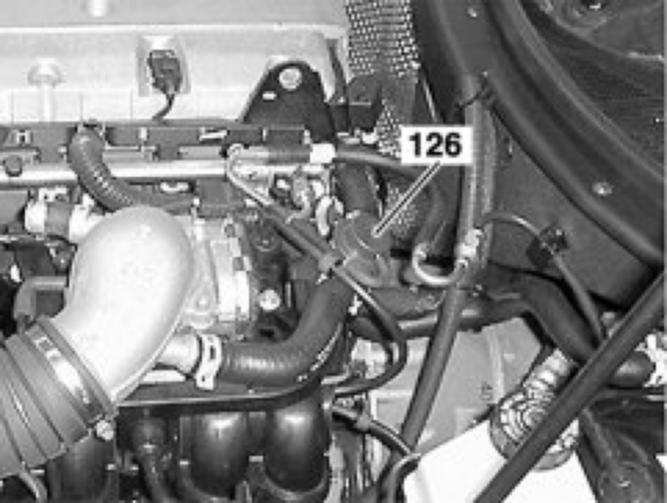

Engine 111 EVO EURO3/4 naturally aspirated engine
126 Air shutoff valve (combination valve: chevk valve integrated)
M33 Electric air pump




Engine 111 EVO EURO3/4 with supercharger
126 Air shutoff valve
