Test and Adjustment Data [Specifications]
>>

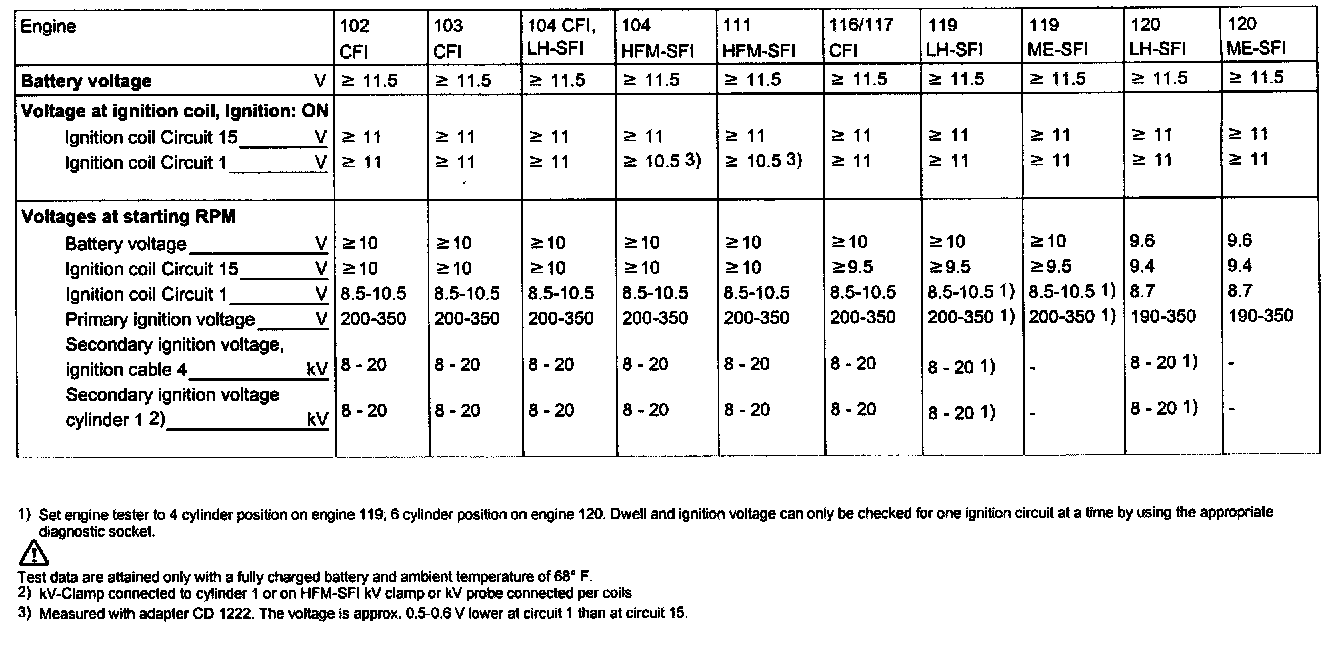

Test Data With Ignition ON and Starting RPM
Test Data With Ignition ON and Starting RPM
Test Data With Ignition ON And Starting RPM
Part 1:
Part 2:
