Home >> Mercedes Benz >> 2001 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> Test and Adjustment Data [Specifications] >> Fuel Pressures >> LH-SFI, HFM-SFI, ME-SFI

LH-SFI, HFM-SFI, ME-SFI

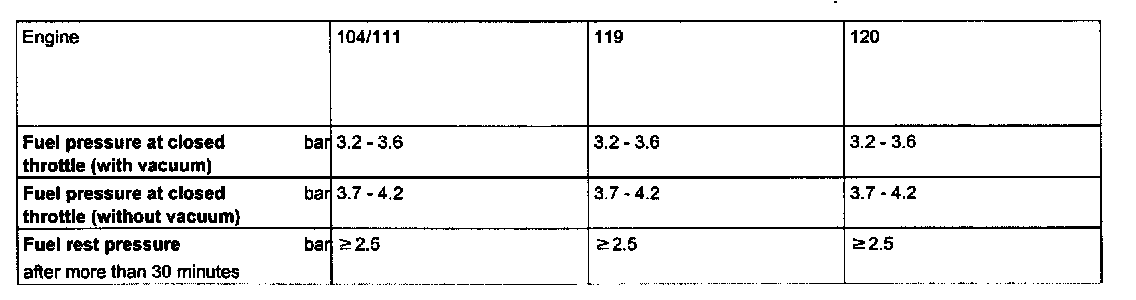

Fuel Pressure LH-SFI, HFM-SFI, ME-SFI Systems
