Home >> Mercedes Benz >> 2001 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> Test and Adjustment Data [Specifications] >> (ECT) and (IAT) Sensors

(ECT) and (IAT) Sensors

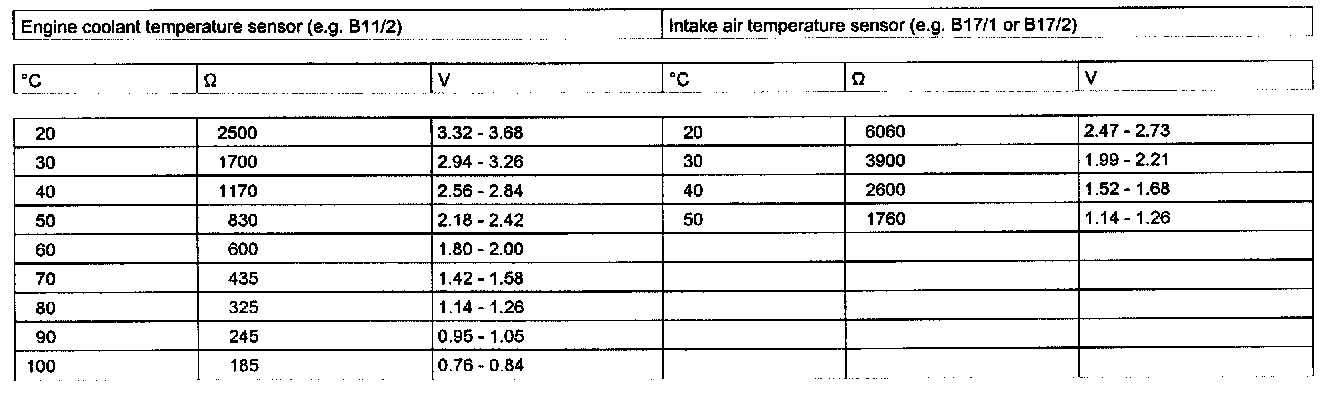

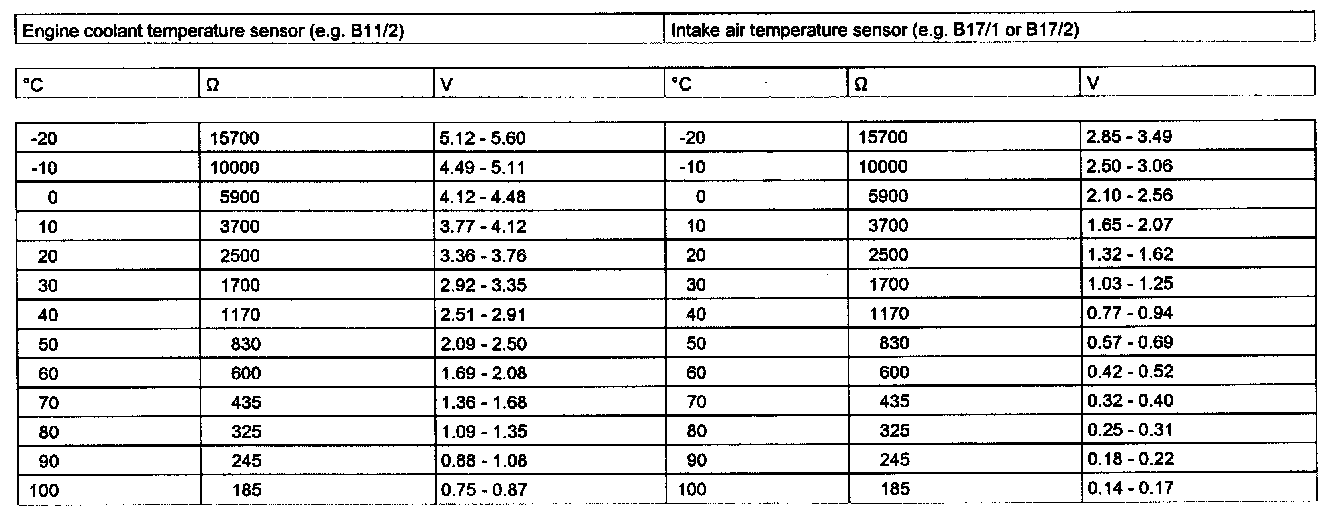

Engine Coolant Temperature (ECT) And Intake Temperature (IAT) Sensors
