Circuit 15R Wiring PE00.19-U-2722NB

Circuit 15R Wiring PE00.19-U-2722NB

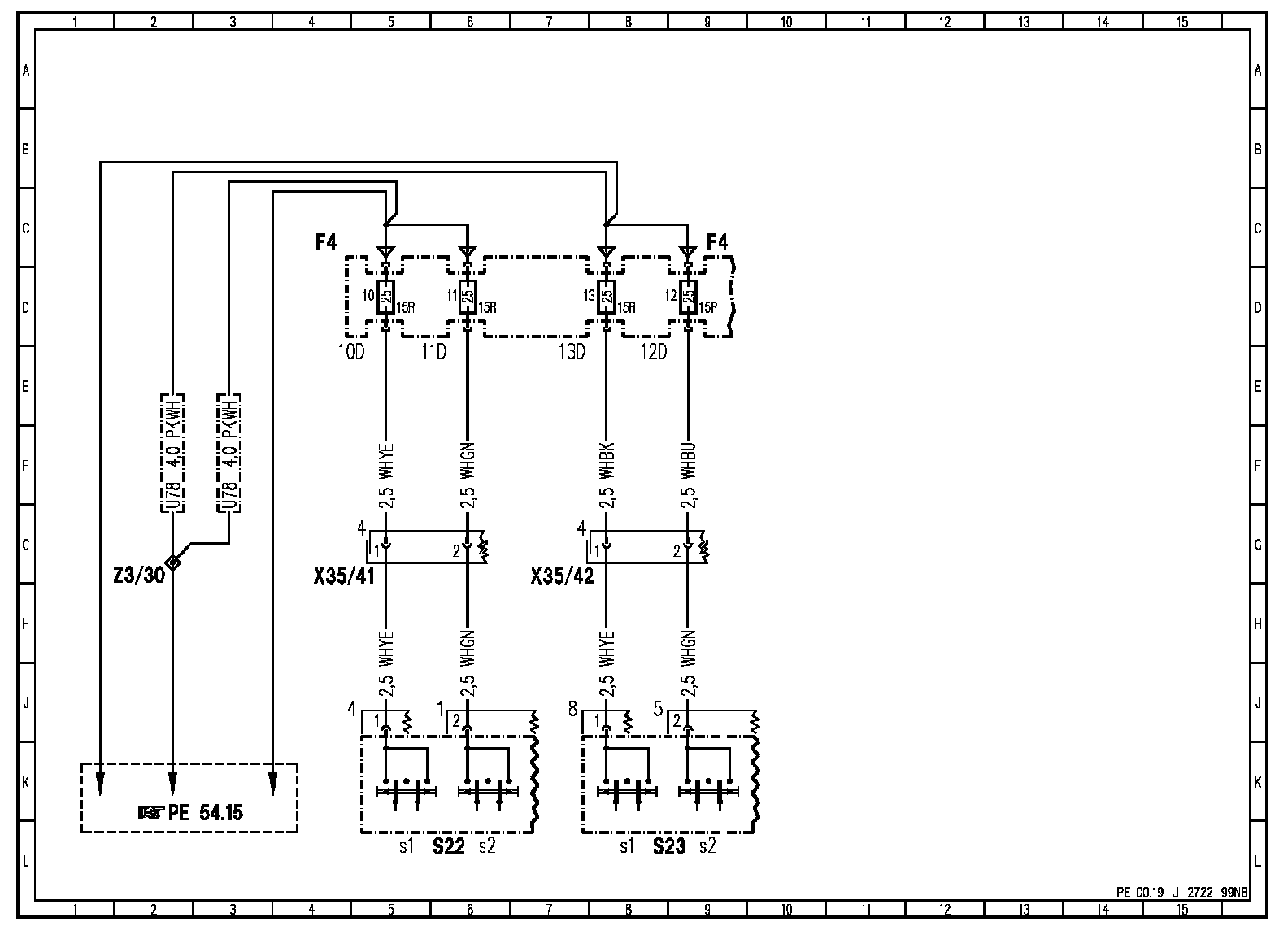

Wiring Diagram:

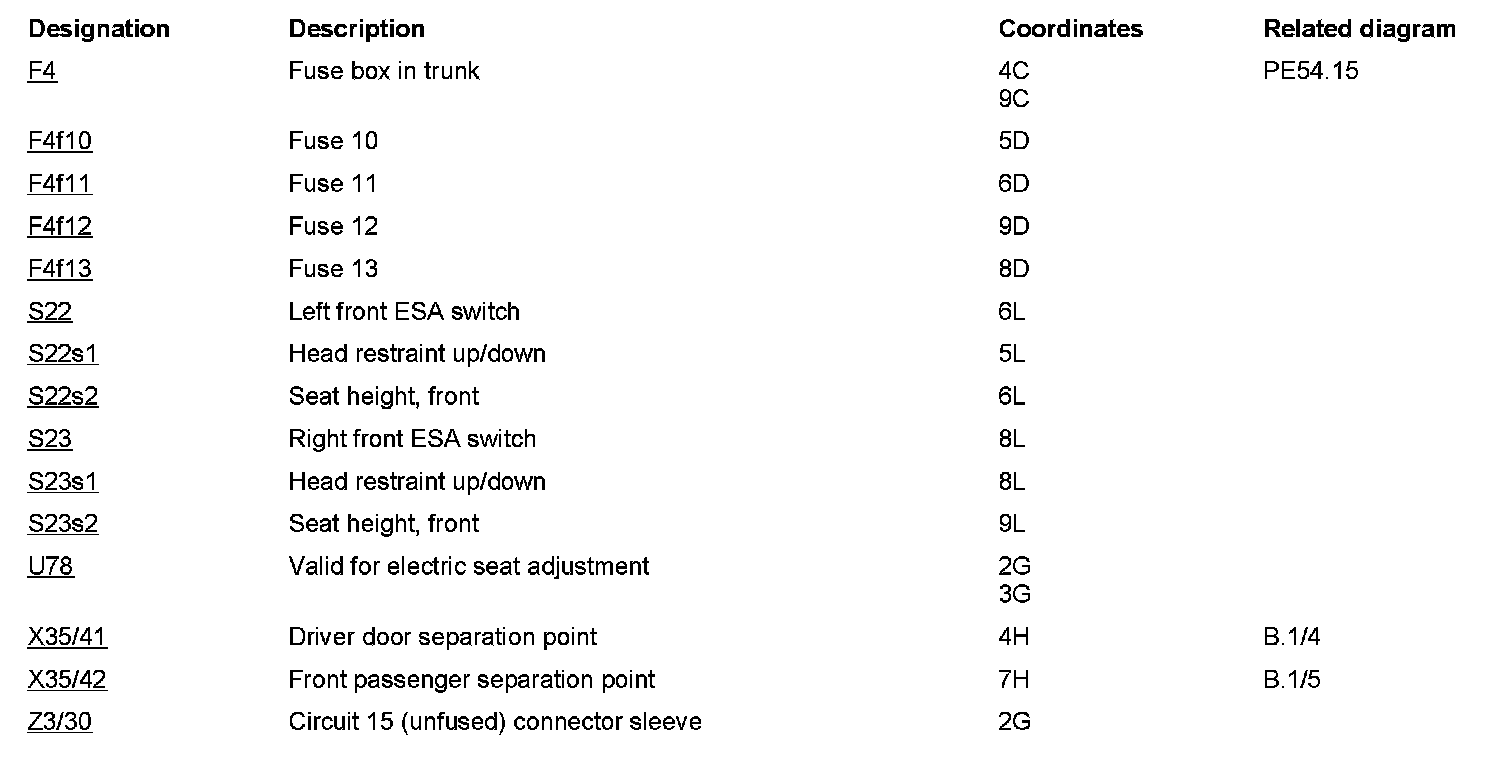

Component Description/Coordinates, F4 To Z3/30:

Component Locations: Component Location photographs can be found via their component names at the vehicle level.
