ME-SFI Fuel Injection And Ignition System PE07.61-U-2000WC



ME-SFI Fuel Injection And Ignition System PE07.61-U-2000WC
- Engine compartment

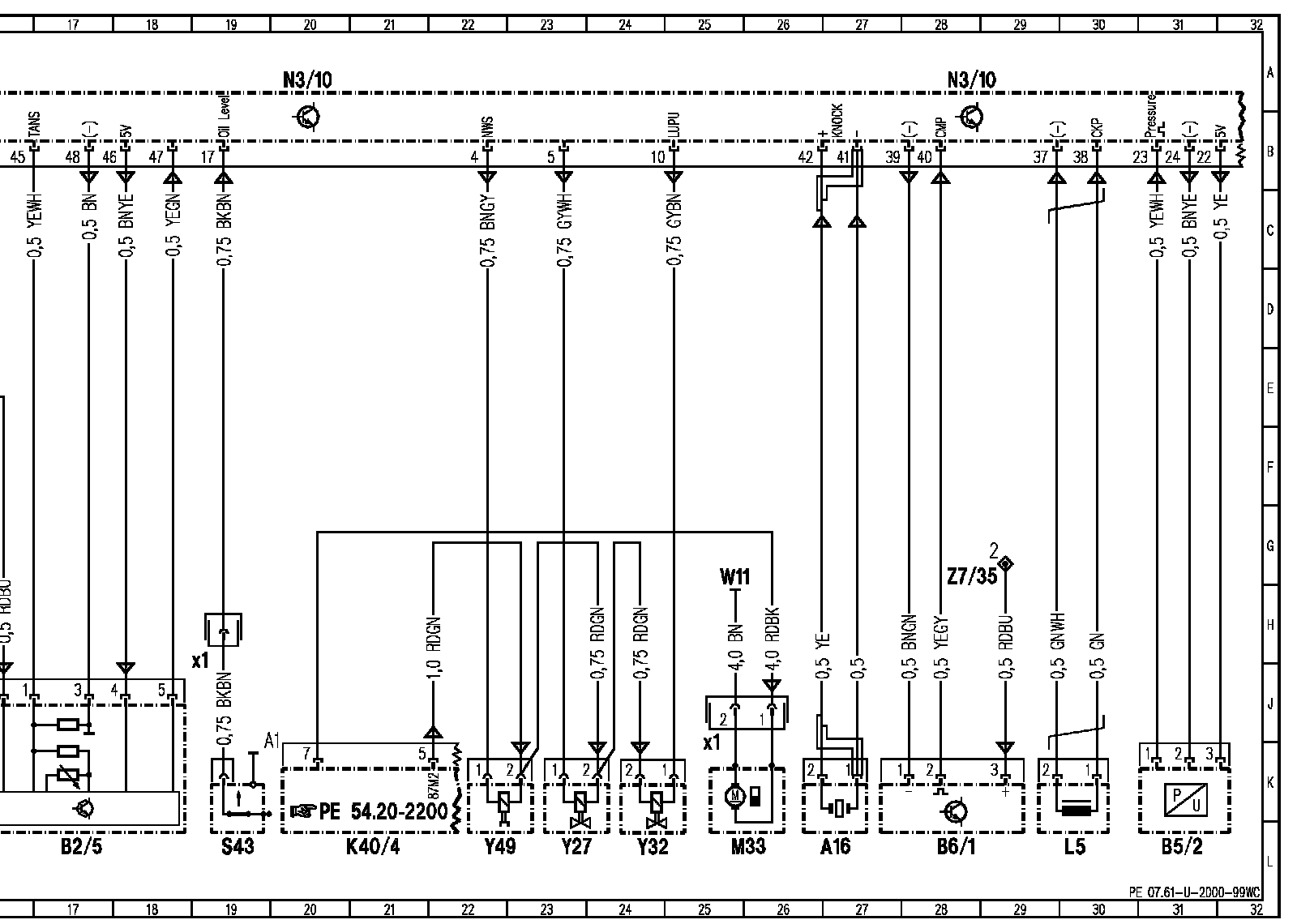

Wiring Diagram, Part 1:





Wiring Diagram, Part 2:

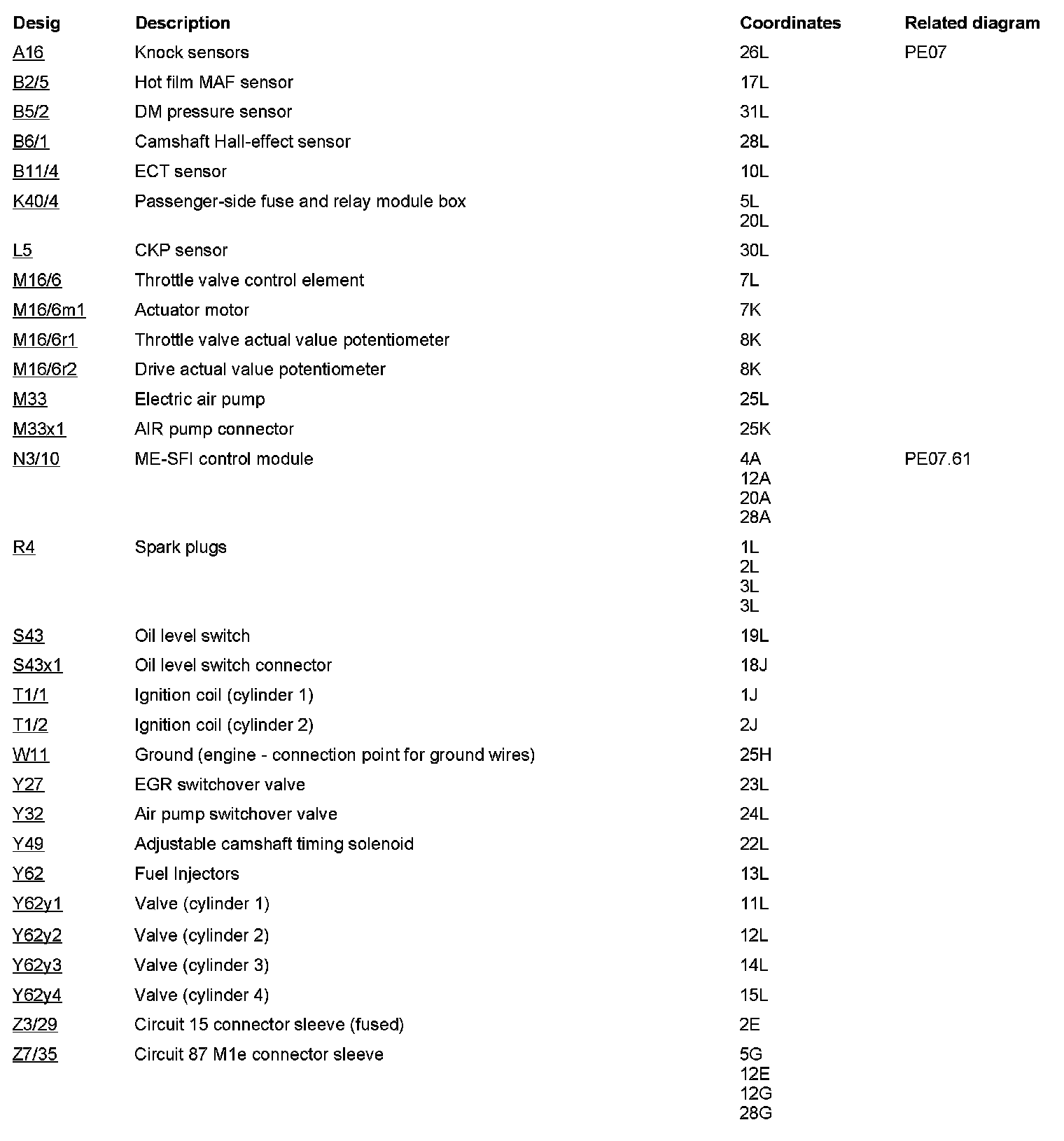

Component Description/Coordinates, A16 To Z7/35:






Component Locations: Component Location photographs can be found via their component names at the vehicle level.
