Home >> Mercedes Benz >> 2001 >> C 230K (202.024) L4-2.3L SC (111.975) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Vanity Mirror PE68.69-U-2000C

Vanity Mirror PE68.69-U-2000C



Vanity Mirror PE68.69-U-2000C

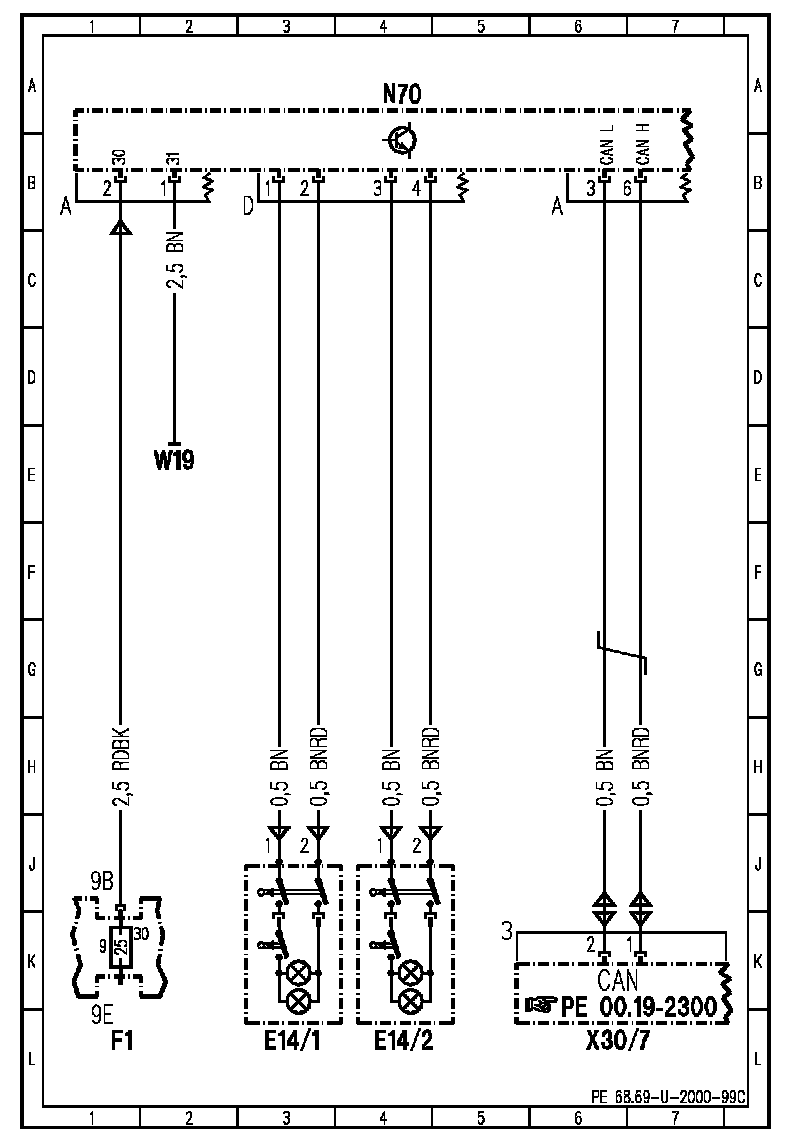

Wiring Diagram:





Component Description/Coordinates, E14/1 To X30/7:






Component Locations: Component Location photographs can be found via their component names at the vehicle level.
