Exterior Lights PE82.10-U-2000ND (Part 2)

Exterior Lights PE82.10-U-2000ND
- Part 2 - Front/rear lamp units, except Xenon headlamps and turn signal/hazard warning flashers

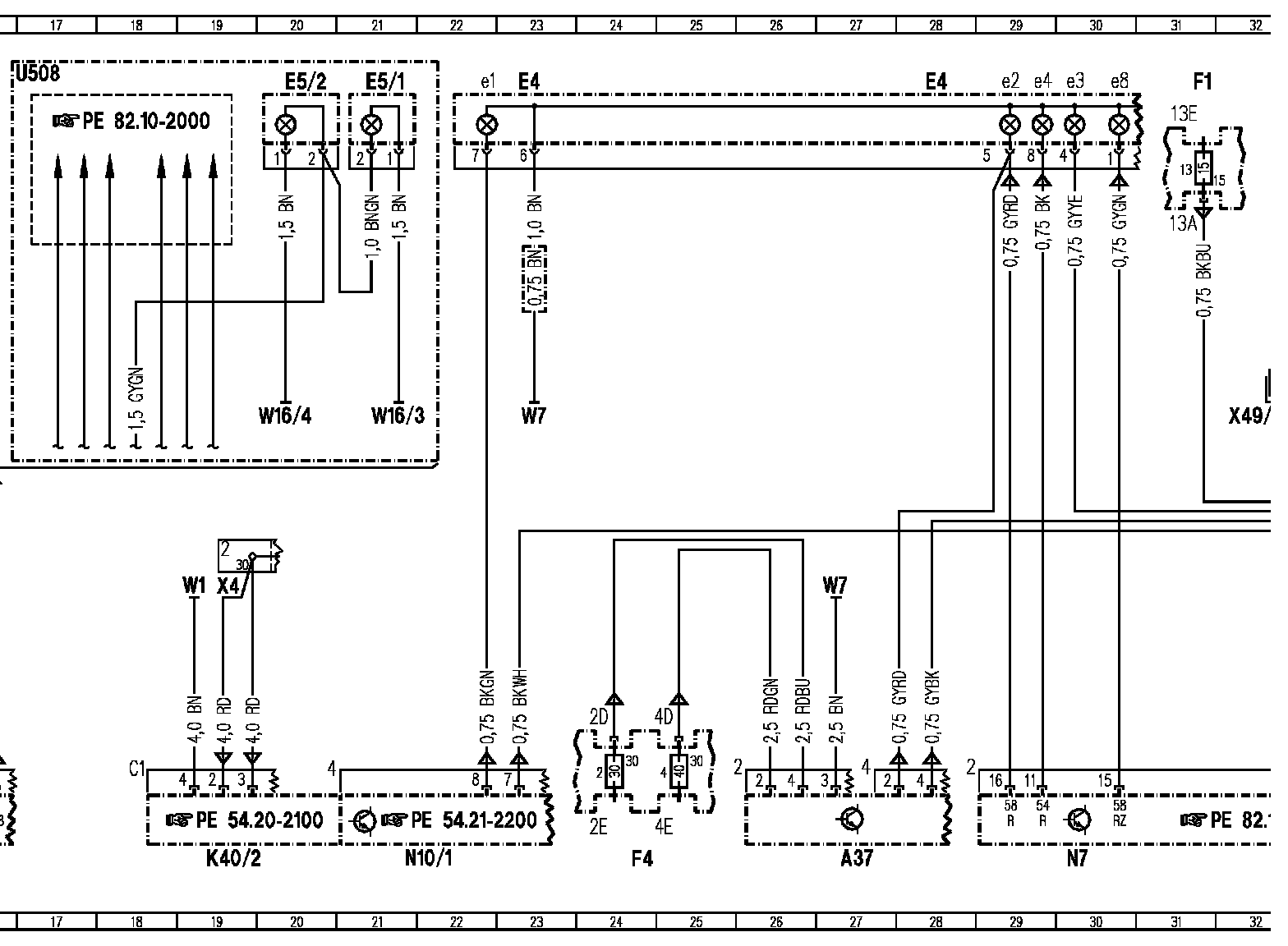

Wiring Diagram, Part 1:

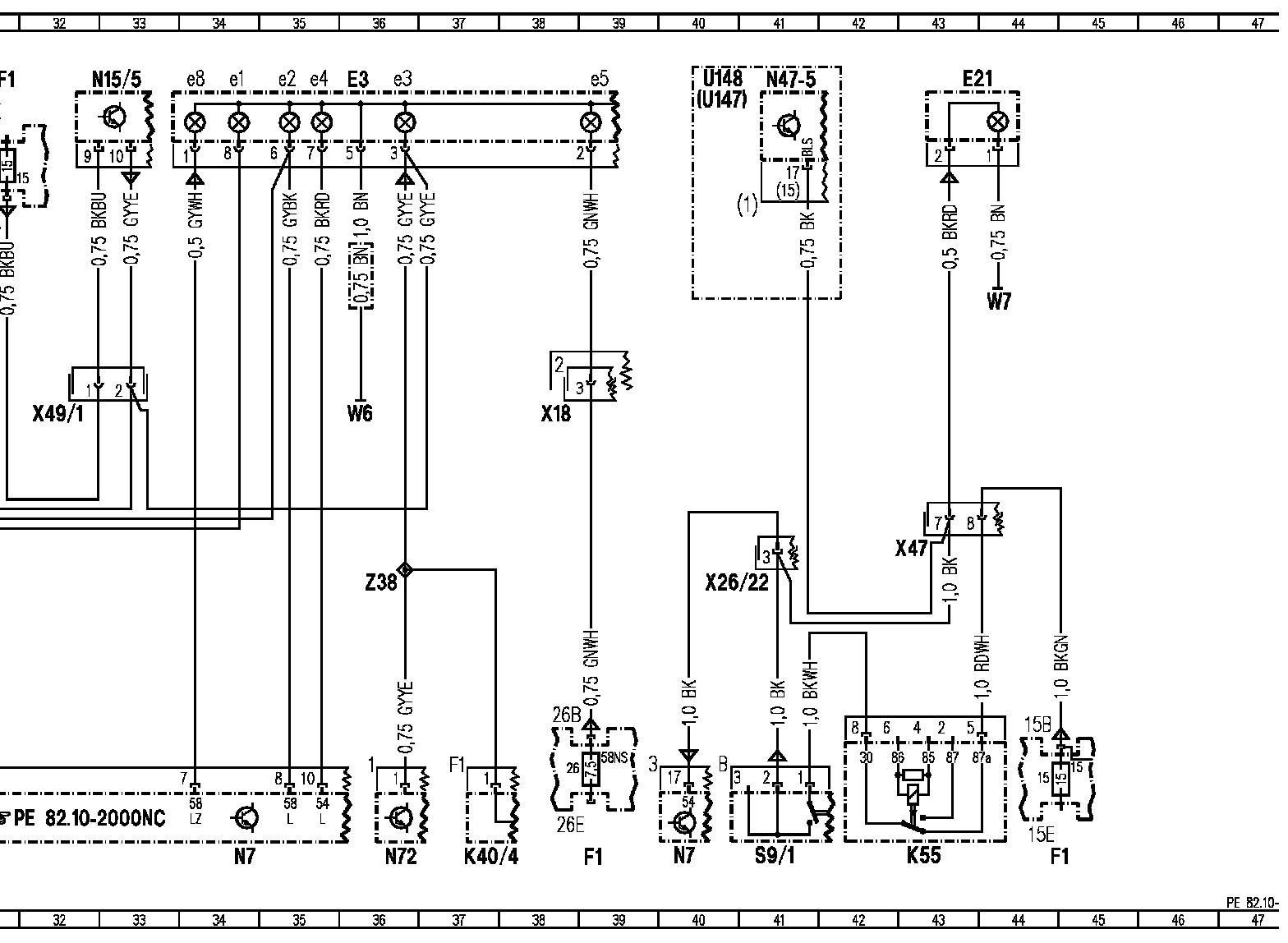

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

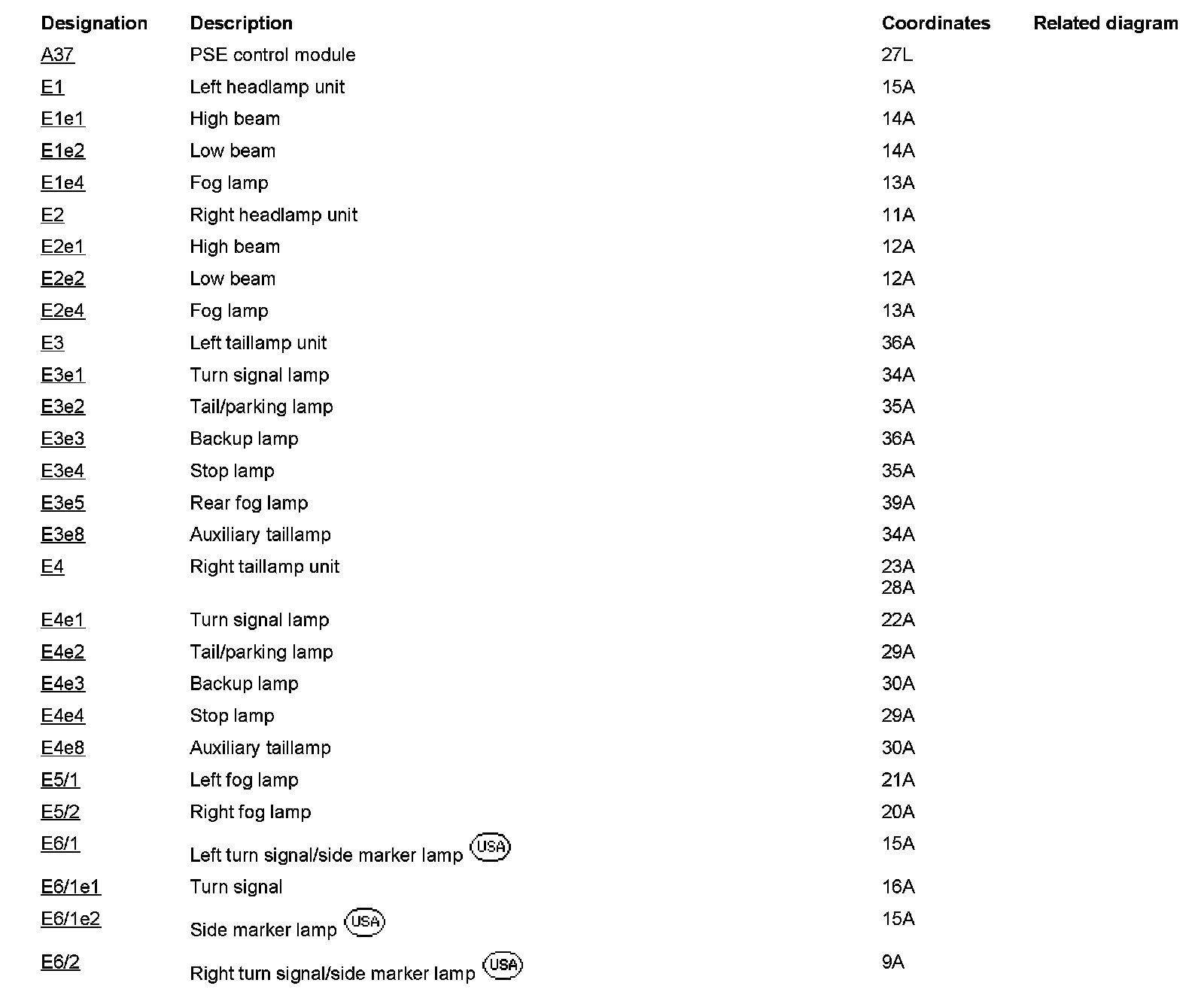

Component Description/Coordinates, A37 To E6/2:

Component Description/Coordinates, E6/2e1 To R3e1:

Component Description/Coordinates, R3r1 To Z38:

Component Locations: Component Location photographs can be found via their component names at the vehicle level.
