Towing Sensor PE80.50-U-2100C



Towing Sensor PE80.50-U-2100C
- with CODE (551a) Anti-theft alarm system (ATA)

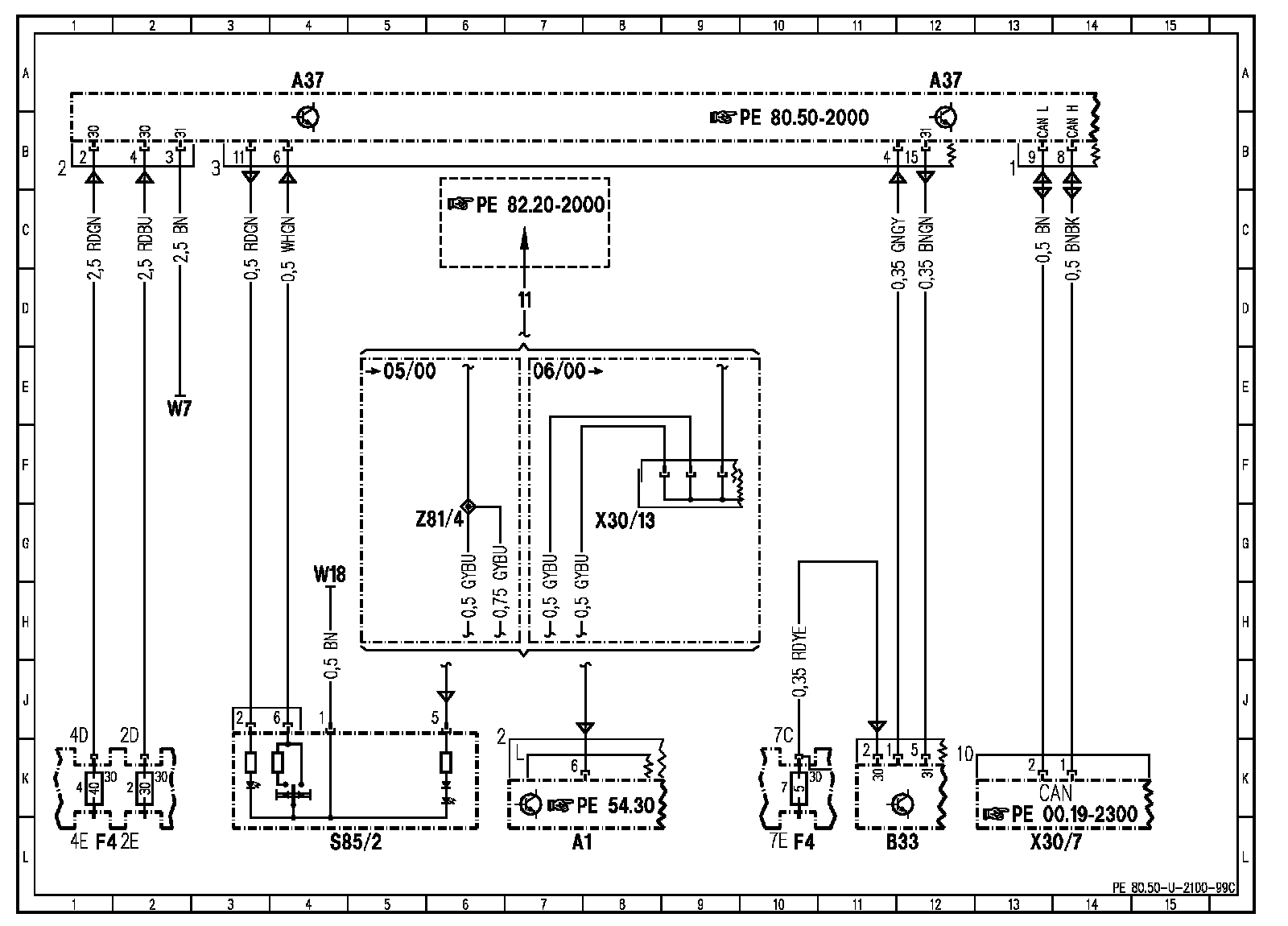

Wiring Diagram:

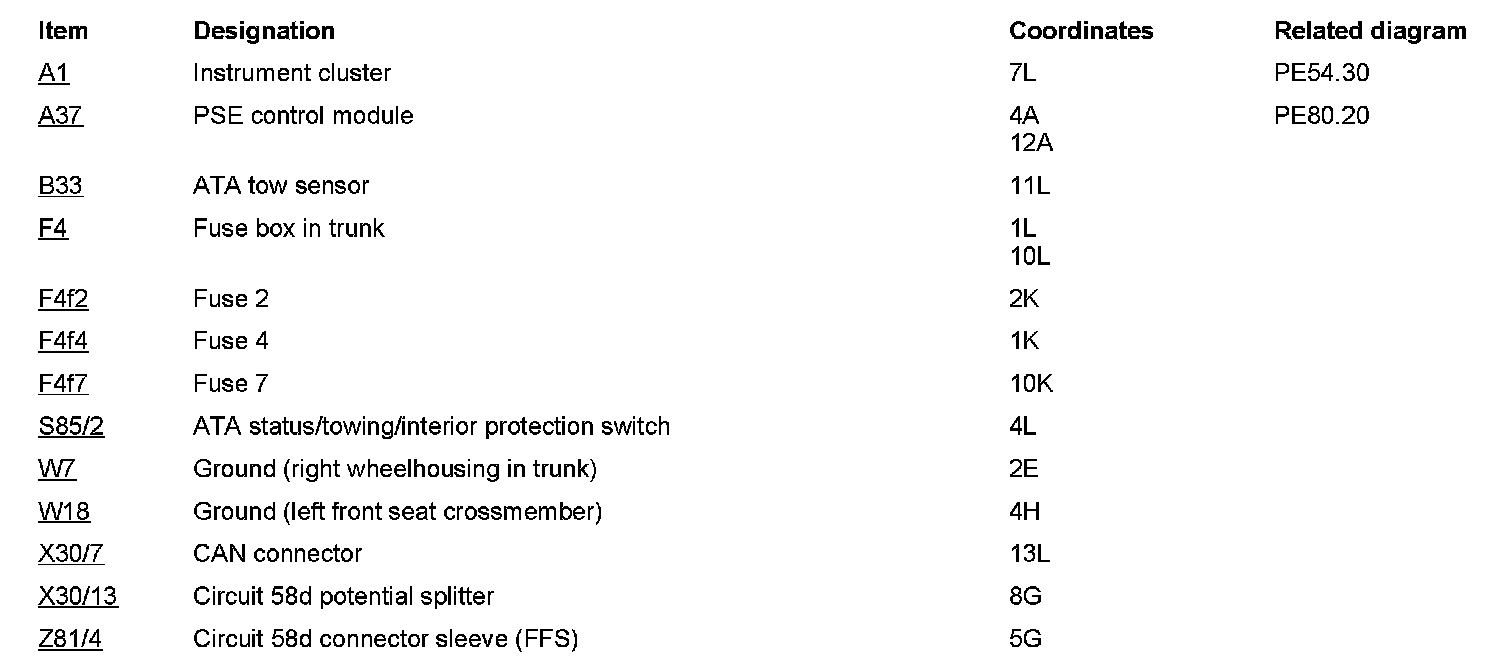

Component Description/Coordinates, A1 To Z81/4:
