AR68.30-P-4700E Remove/Install Lining on B-Pillar



AR68.30-P-4700E Removing and installing lining on B-Pillar

Component Identification:

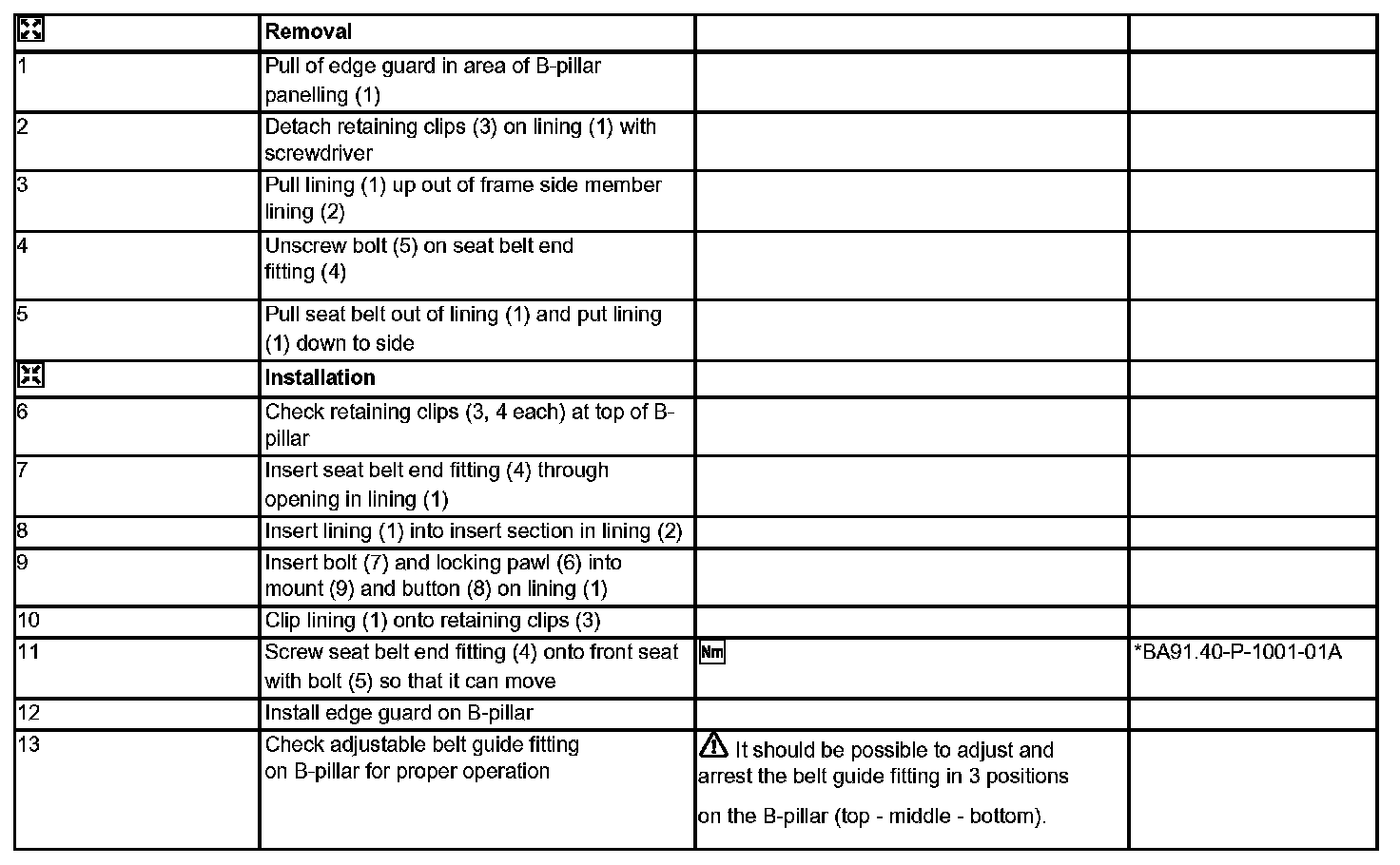

Steps 1 - 13:

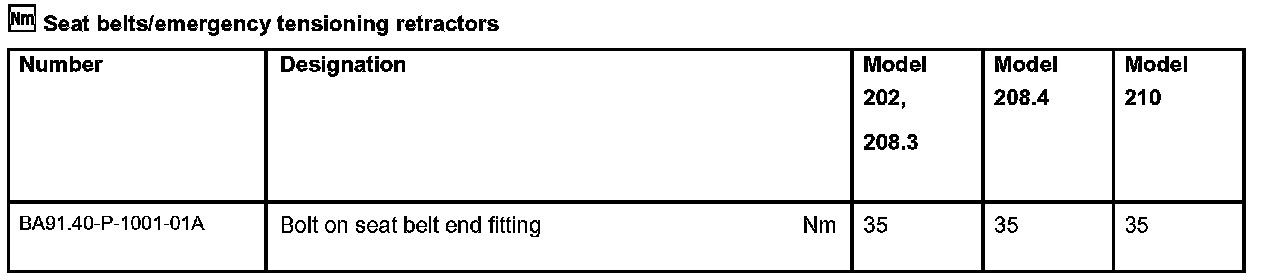

Seat Belts/Emergency Tensioning Retractors:
