Mercedes Benz
>>
2001
>>
C 230K (202.024) L4-2.3L SC (111.975)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Garage Door Opener Transmitter
>>
Service and Repair
Garage Door Opener Transmitter: Service and Repair
AR68.05-P-2000F Removing, Installing Garage Door Opener

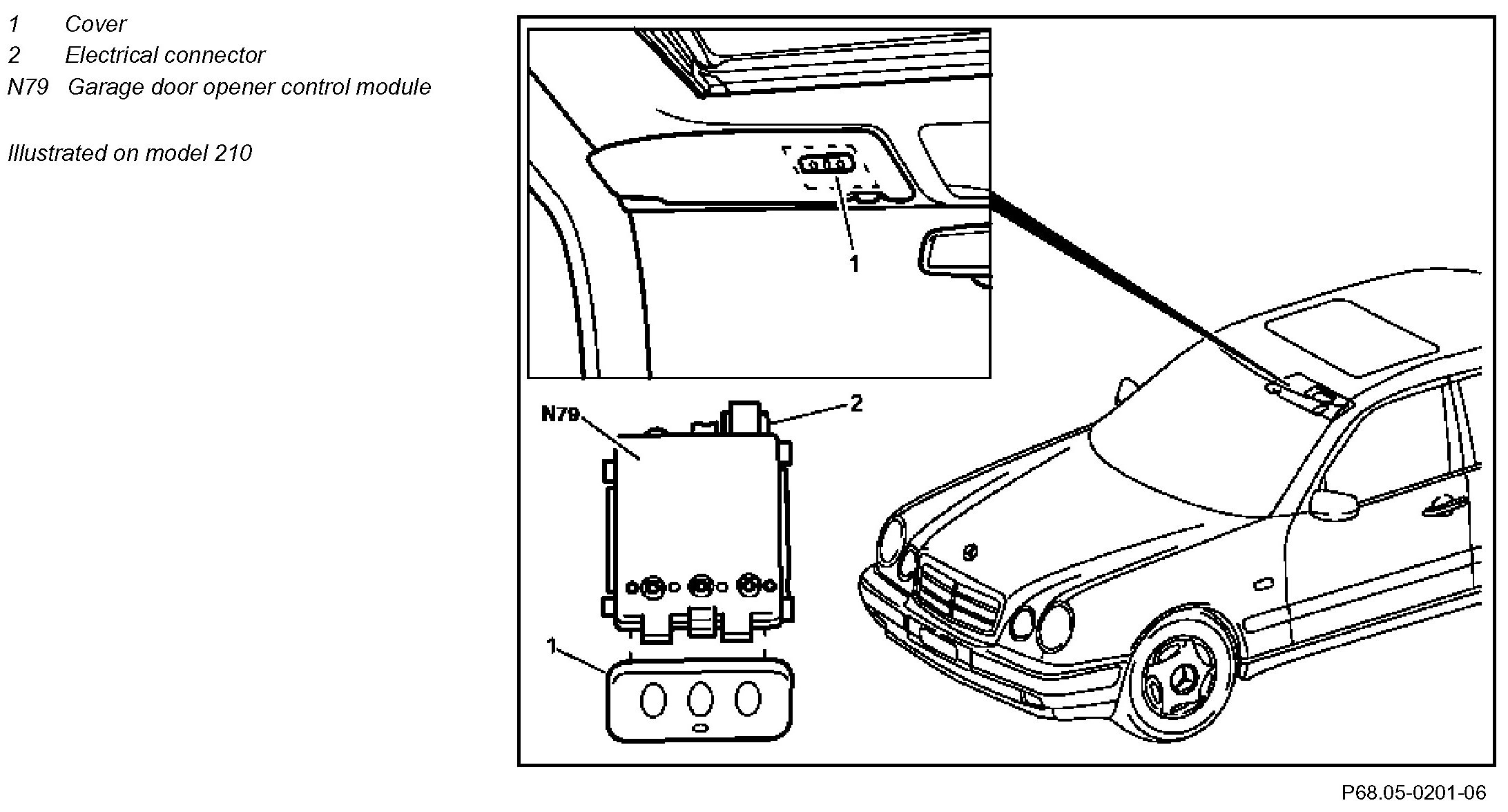

Component Identification:

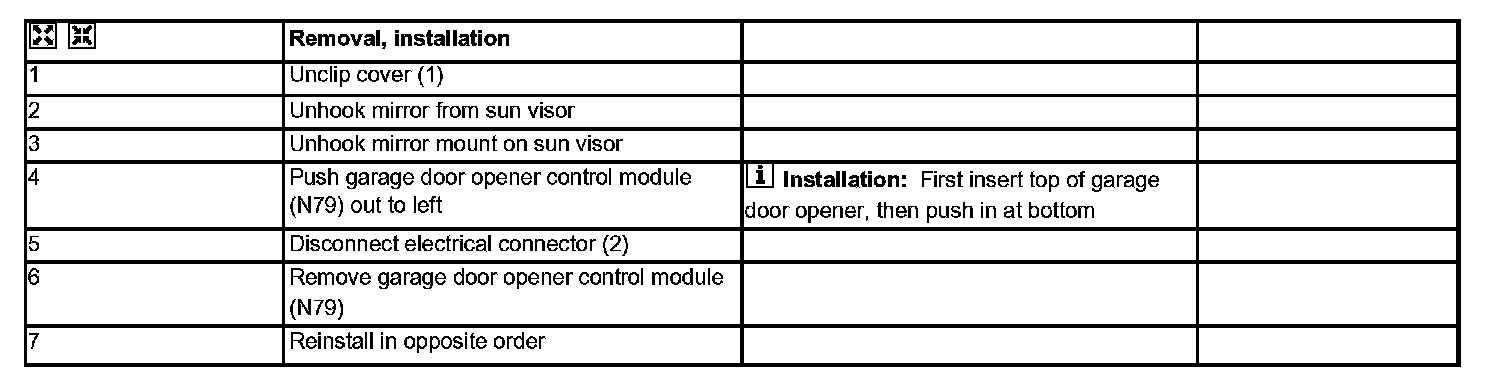

Steps 1 - 7:
