Home >> Mercedes Benz >> 2000 >> SLK 230 (170.447) L4-2.3L SC (111.973) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Regulator >> Quarter Window Regulator >> Service and Repair

Quarter Window Regulator: Service and Repair



AR67.39-P-4150G Remove/Install Electric Window Lift on Rear Side Window

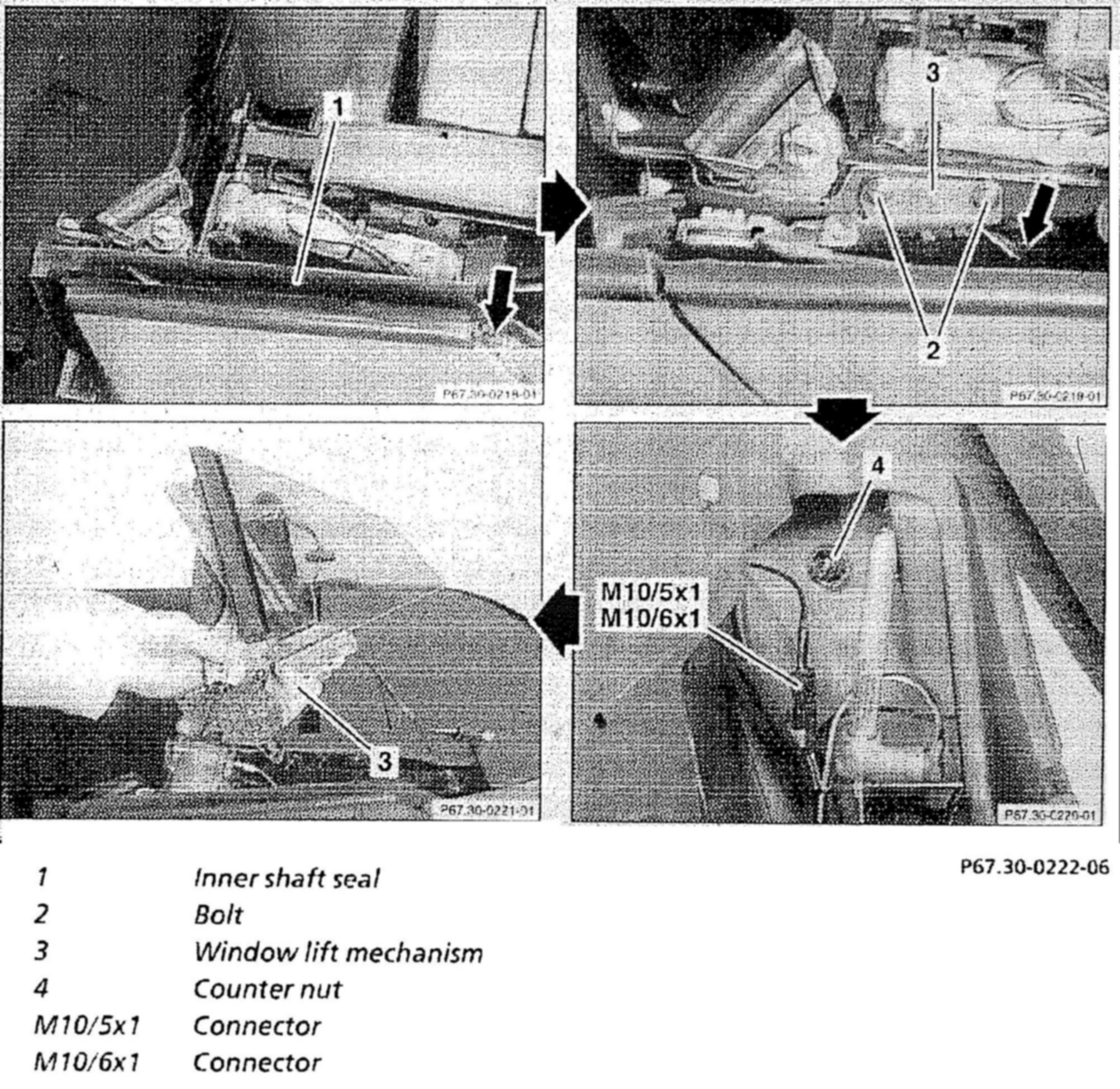

Component Identification:

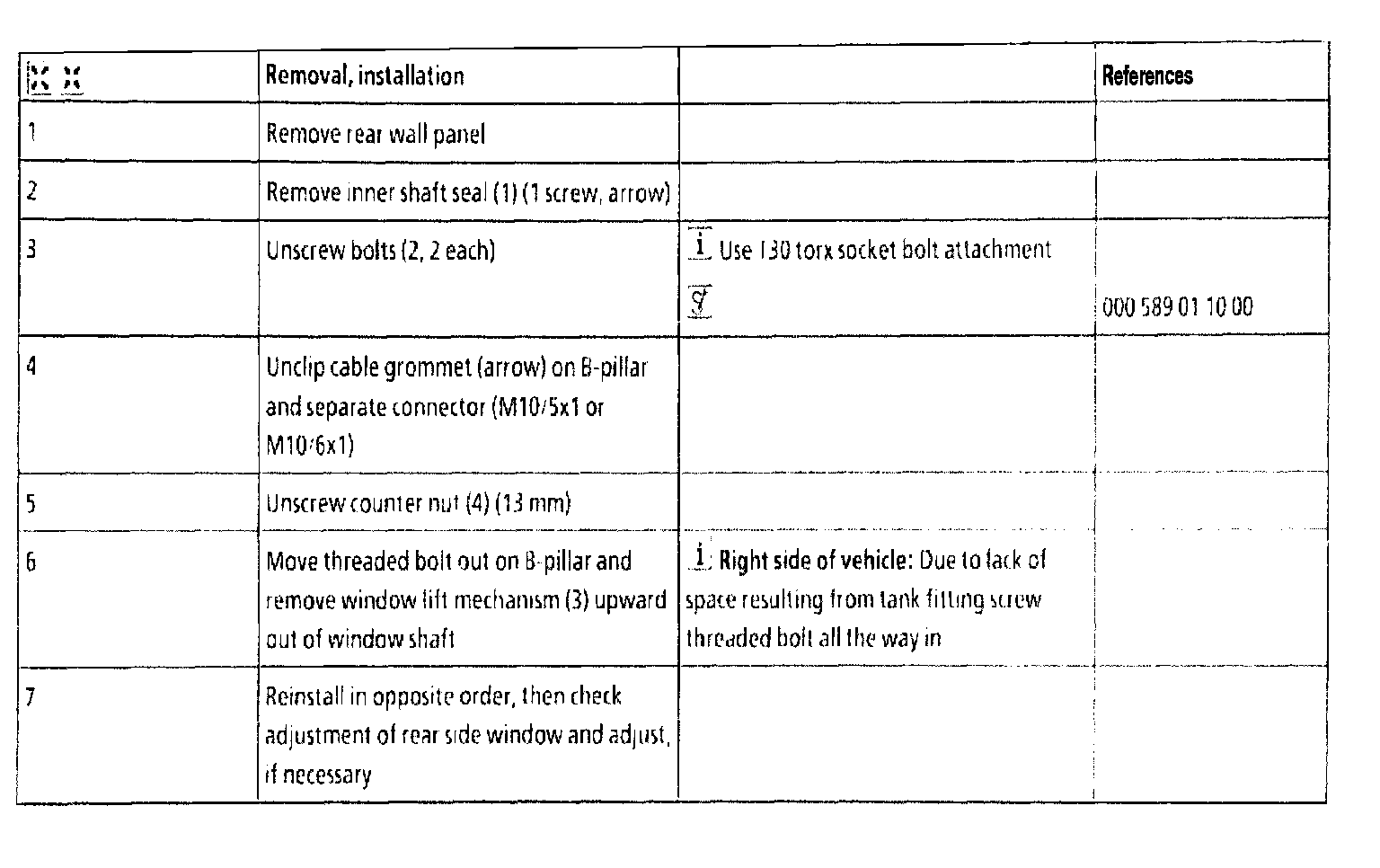

R&R of Electric Window Lift Mechanism on Rear Side Window:

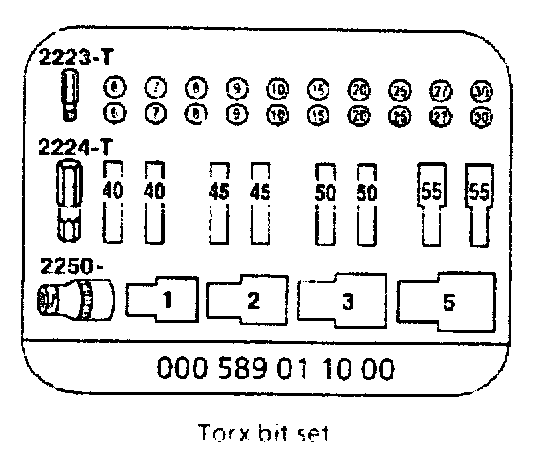

References, Special Tools:
