Electrical Diagrams

Power Windows (4 Doors)

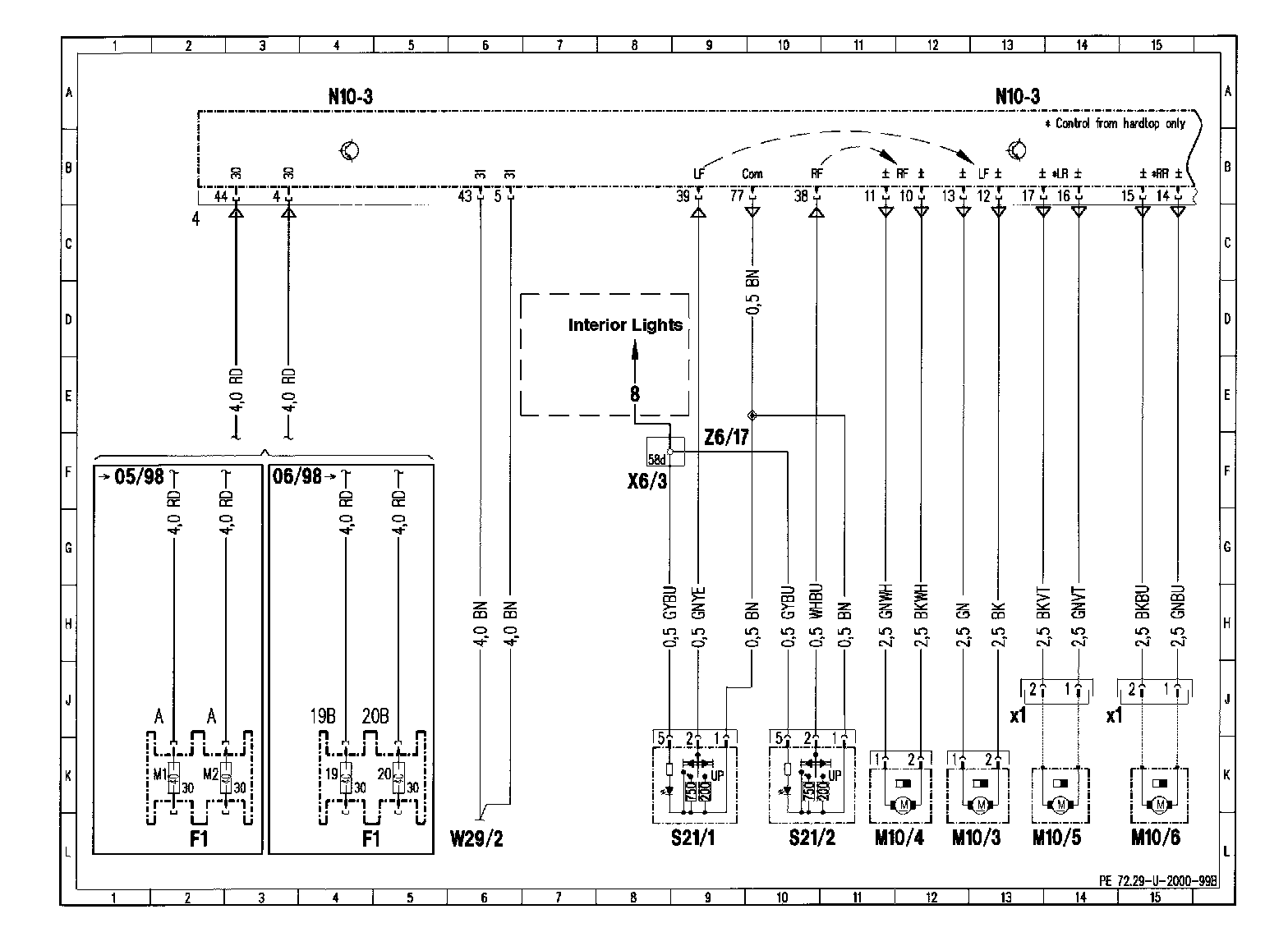

Wiring Diagram

Component Grid Location

F1 - N10-3:

S21/1 - Z6/17:

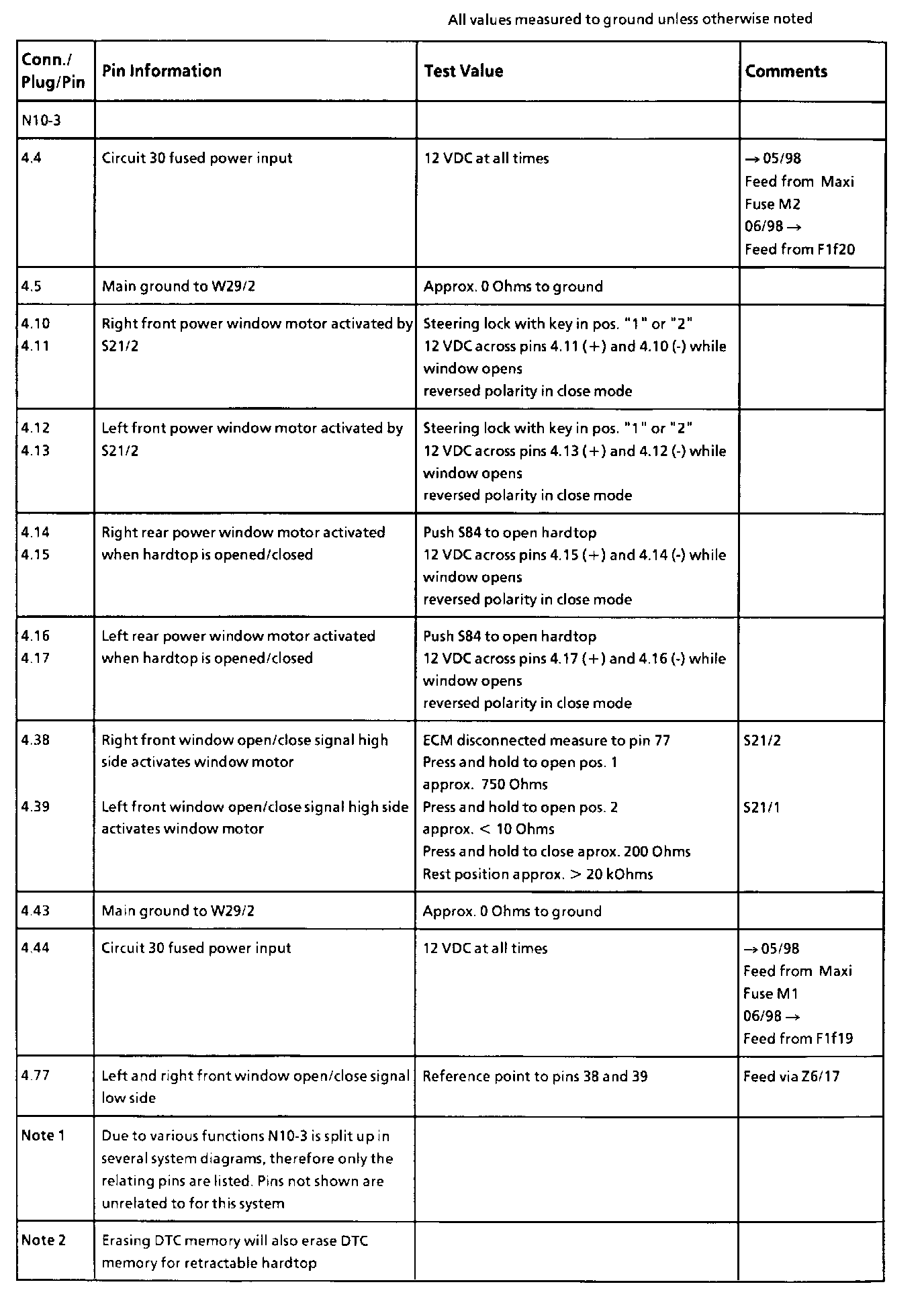

Pin-Out Testing - Component: N10-3

Connector N10 - Pin 3 Through 4 - Pin 77:

Connector Views:
