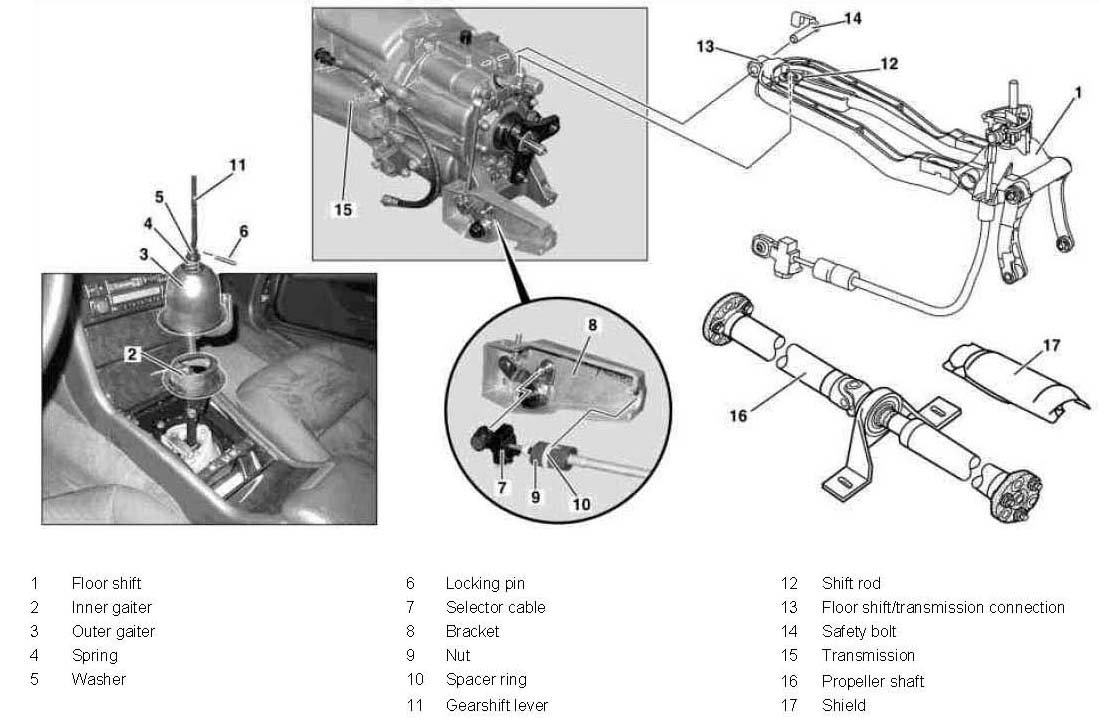

AR26.60-P-0600D Remove/Install Floor Shift

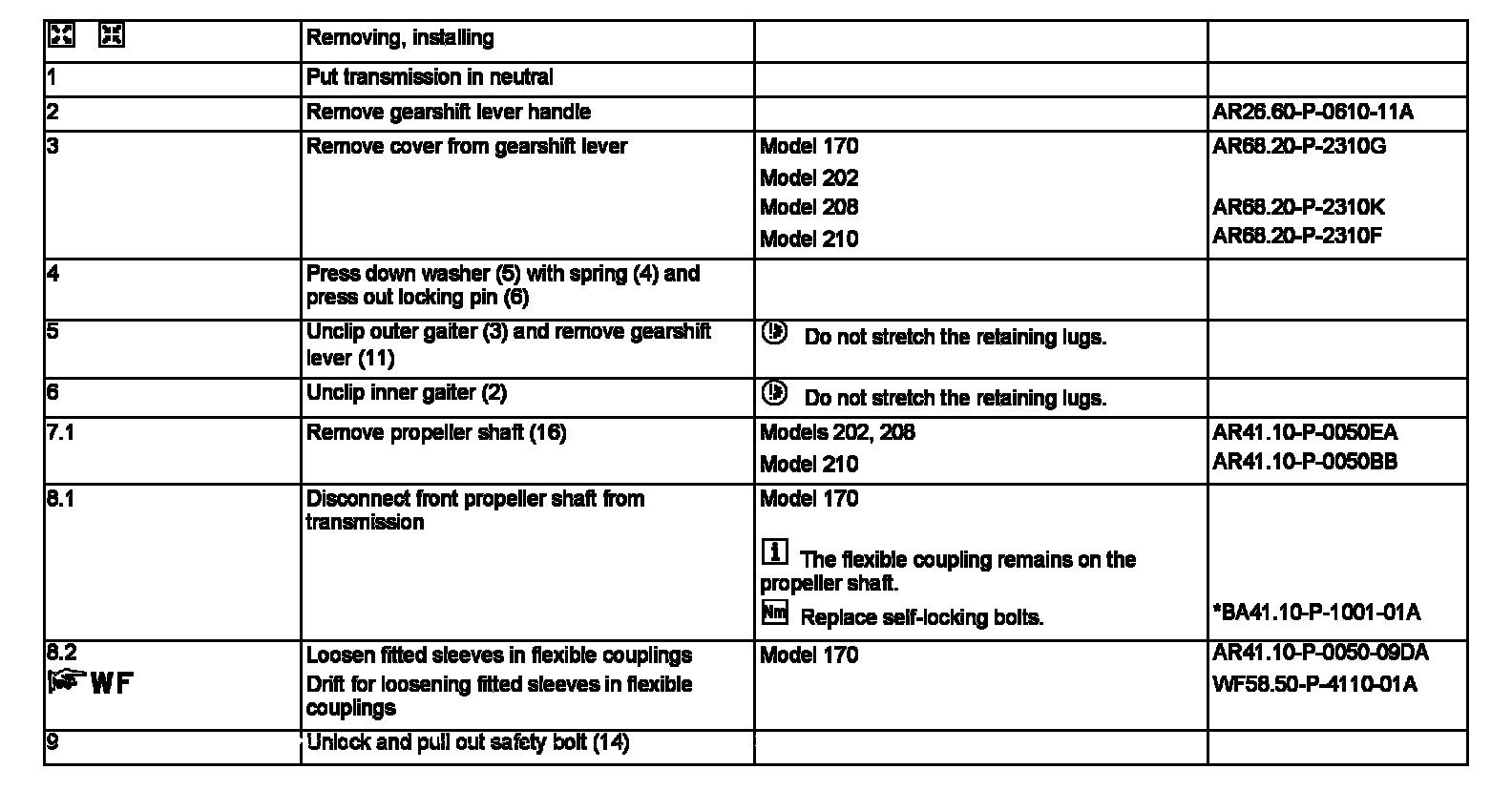

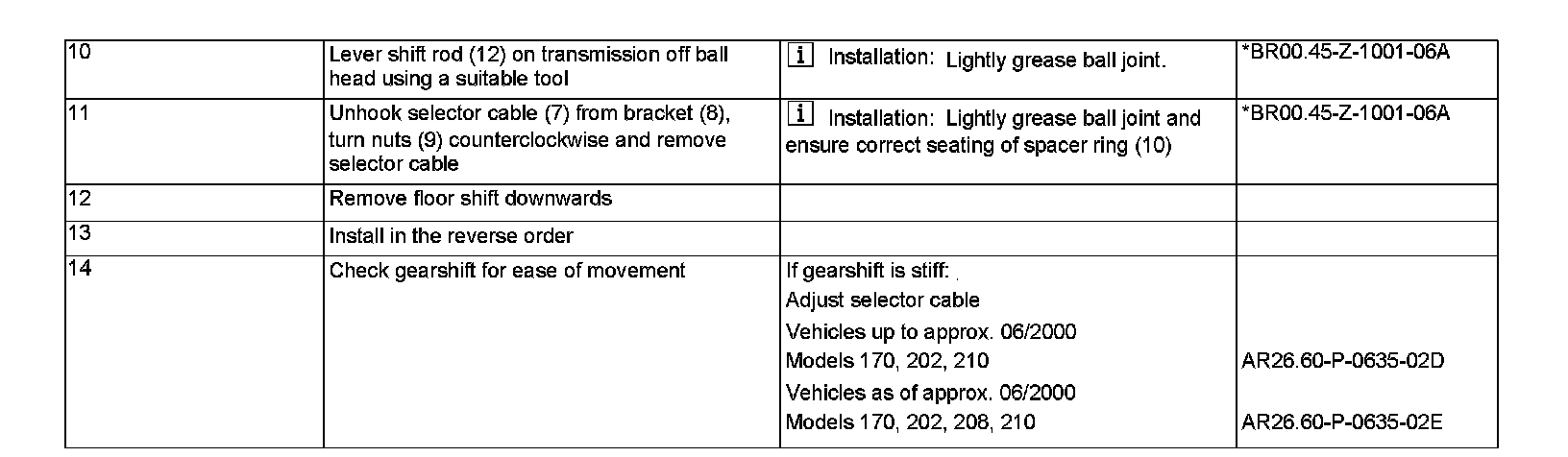

ARemoving and installing floor shift
- Without CODE (424) Sequentronic (SEQ)
