Ignition Lock: Service and Repair

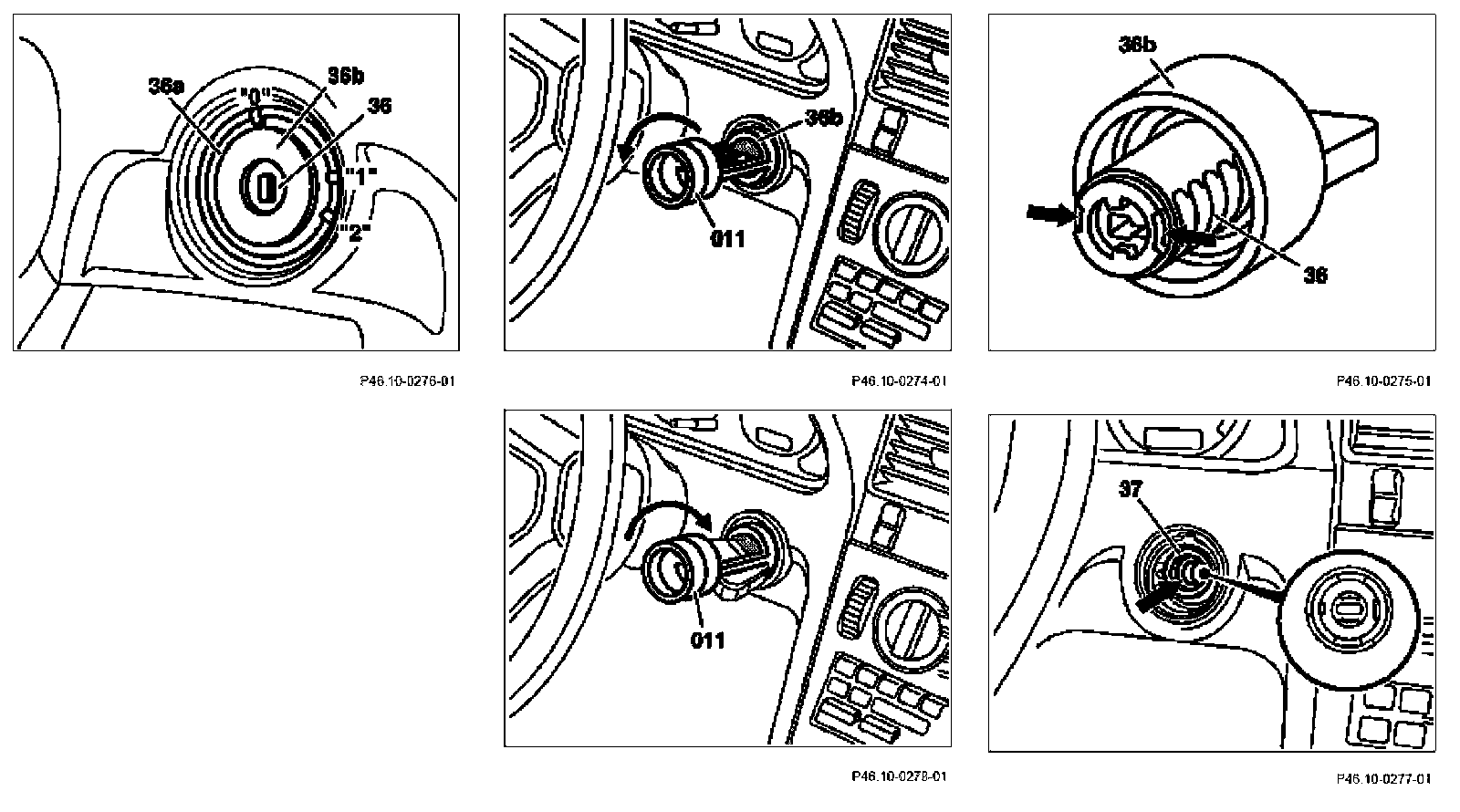

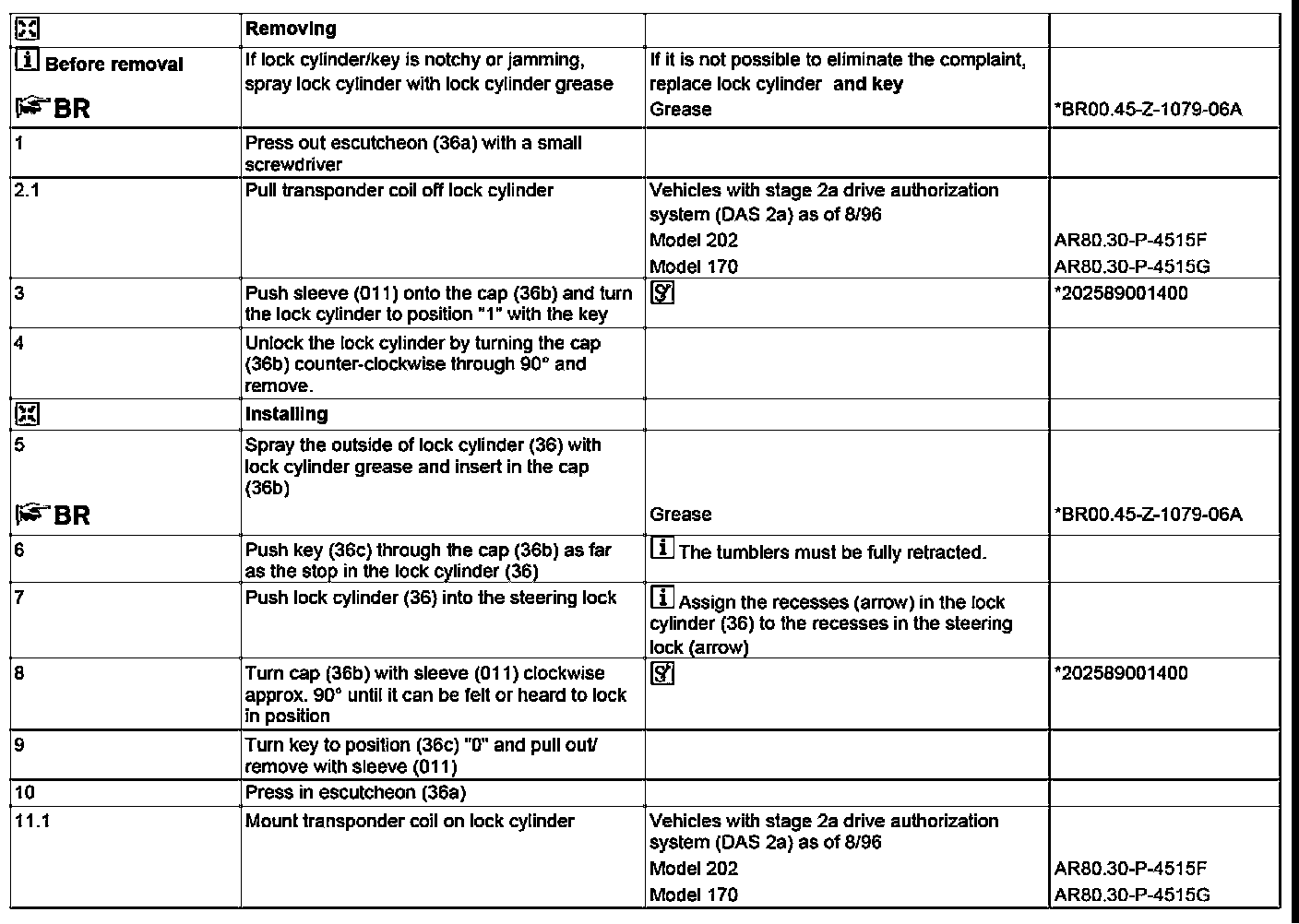

AR46.10-P-0800B Removing and Installing Lock Cylinder

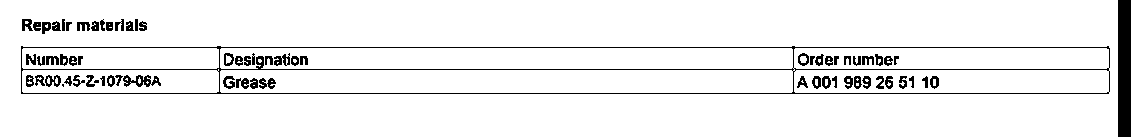

Repair Materials:

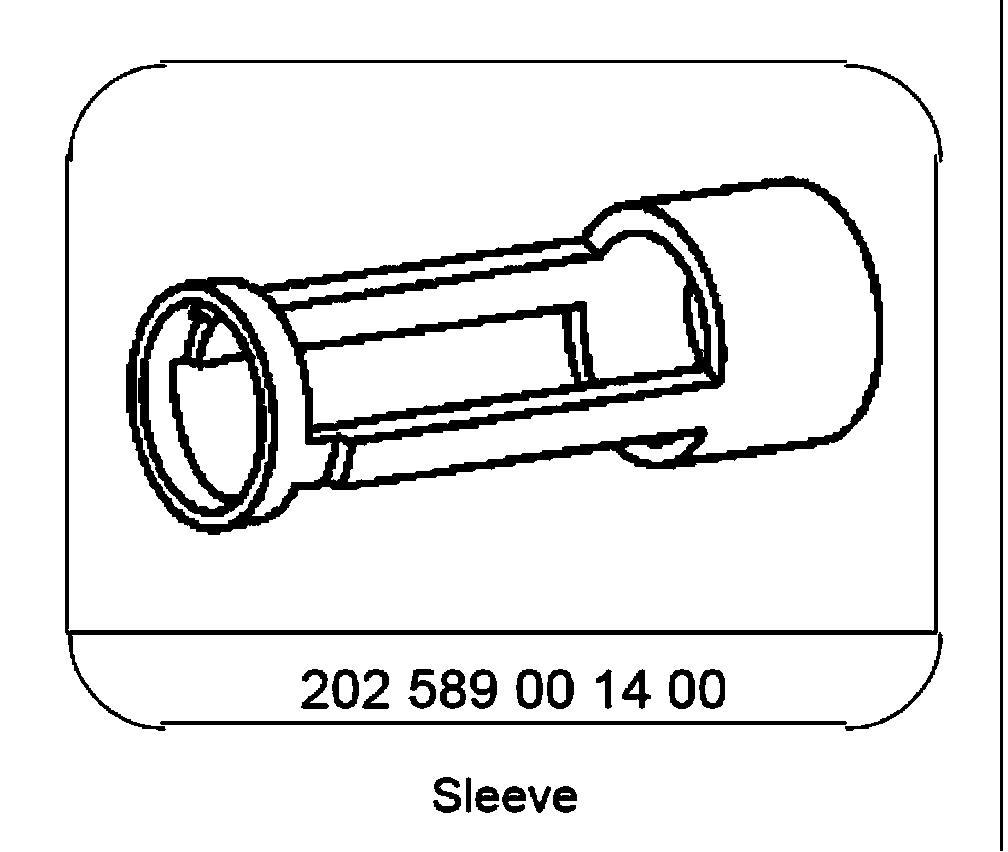

Special Service Tool:
