Ignition Lock Cable: Service and Repair
Removing and installing
ignition lock
control cable
- As of December 1, 1999

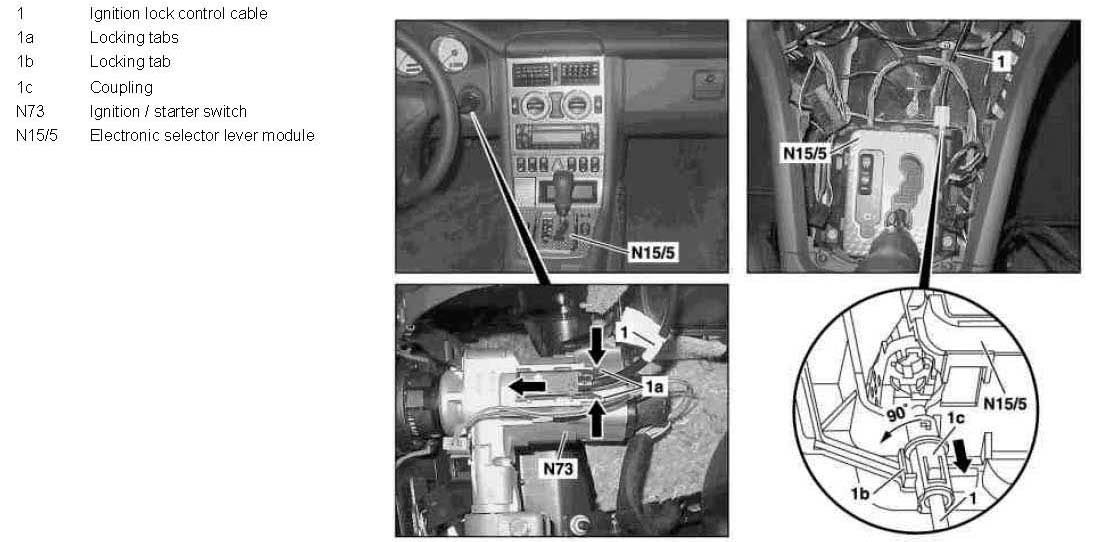

Component Identification:

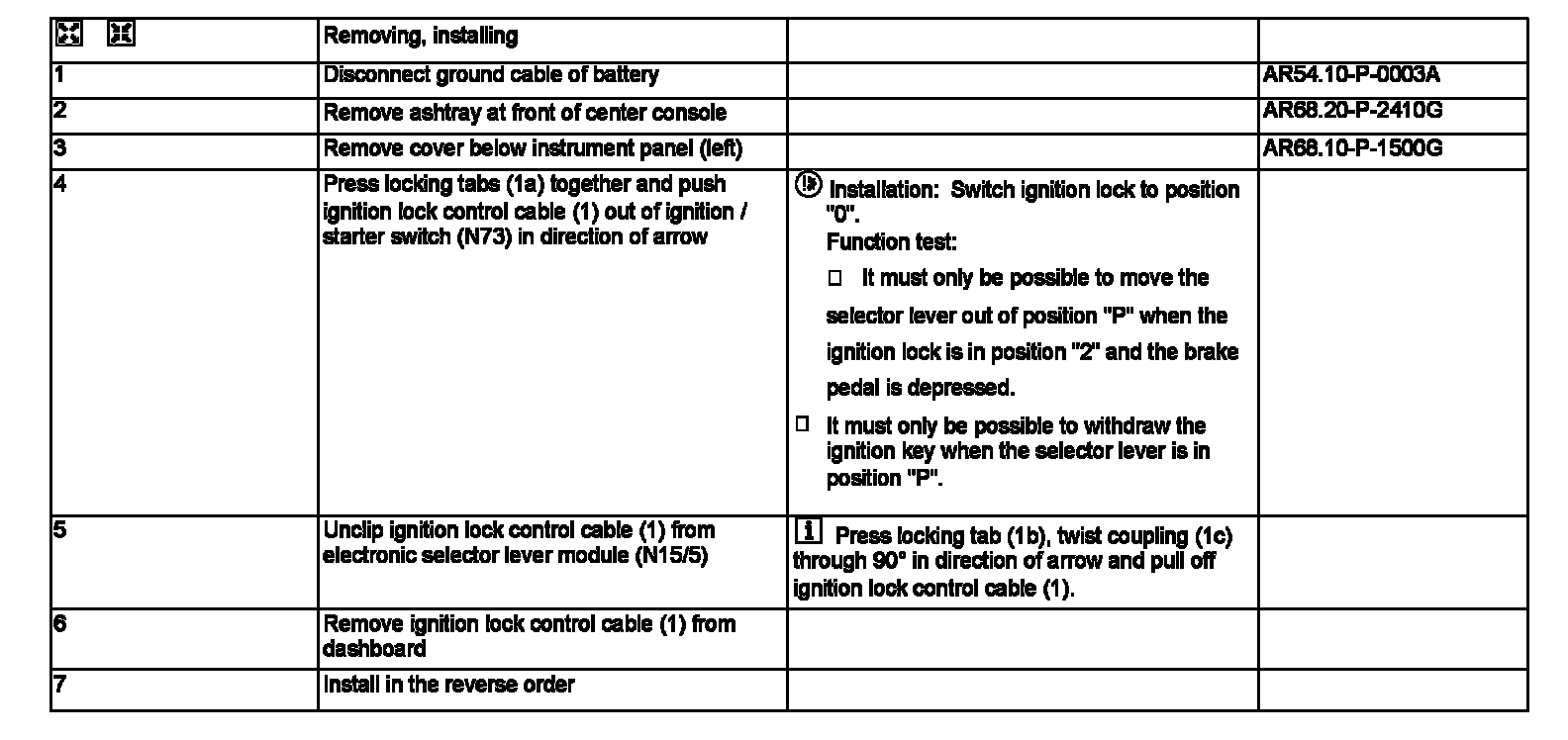

Steps 1 - 7:
