AR15.40-P-5009G Prerequisites For Testing Alternator
AR15.40-P-5009G Prerequisites For Testing Alternator
AR15.40-P-5009G Prerequisites For Testing
Alternator

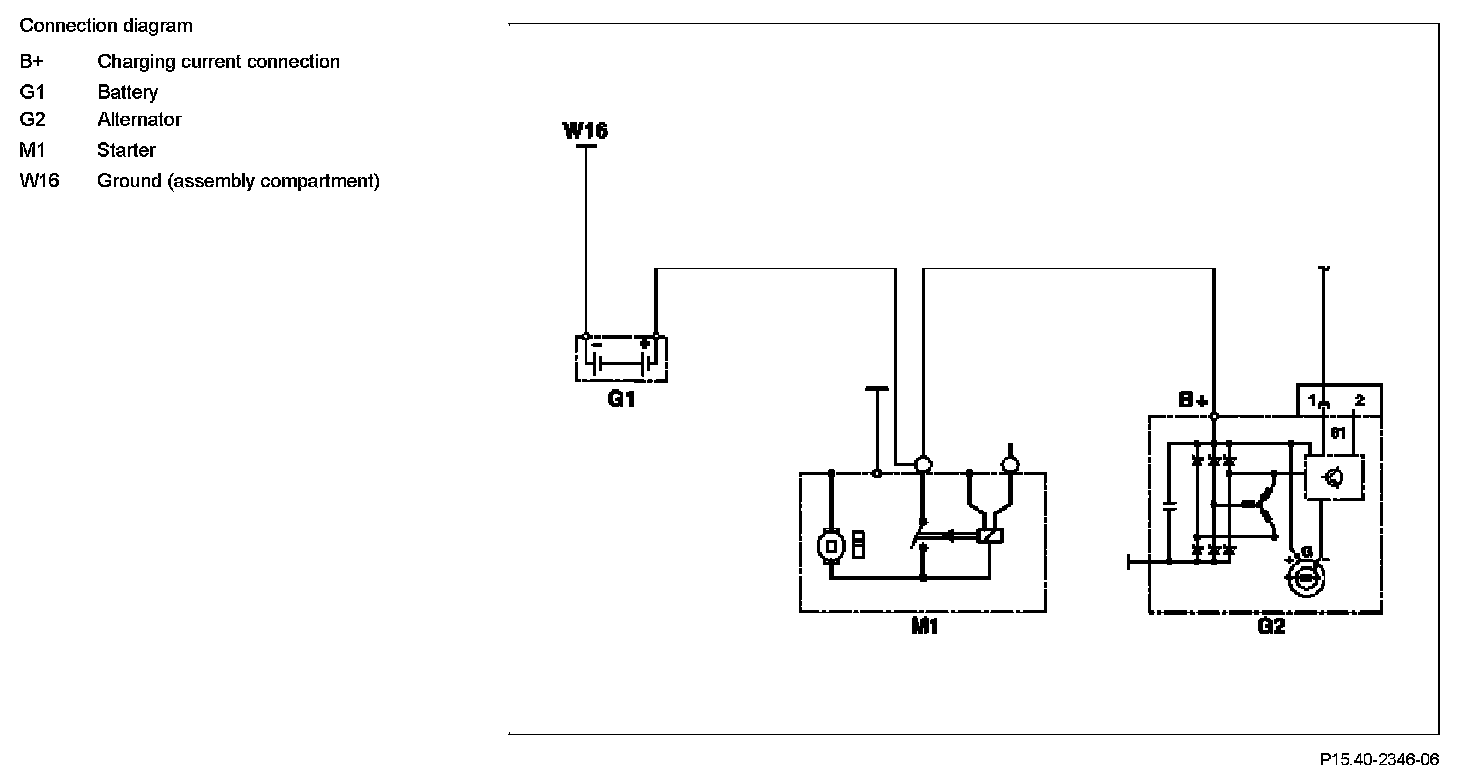

Component Identification:

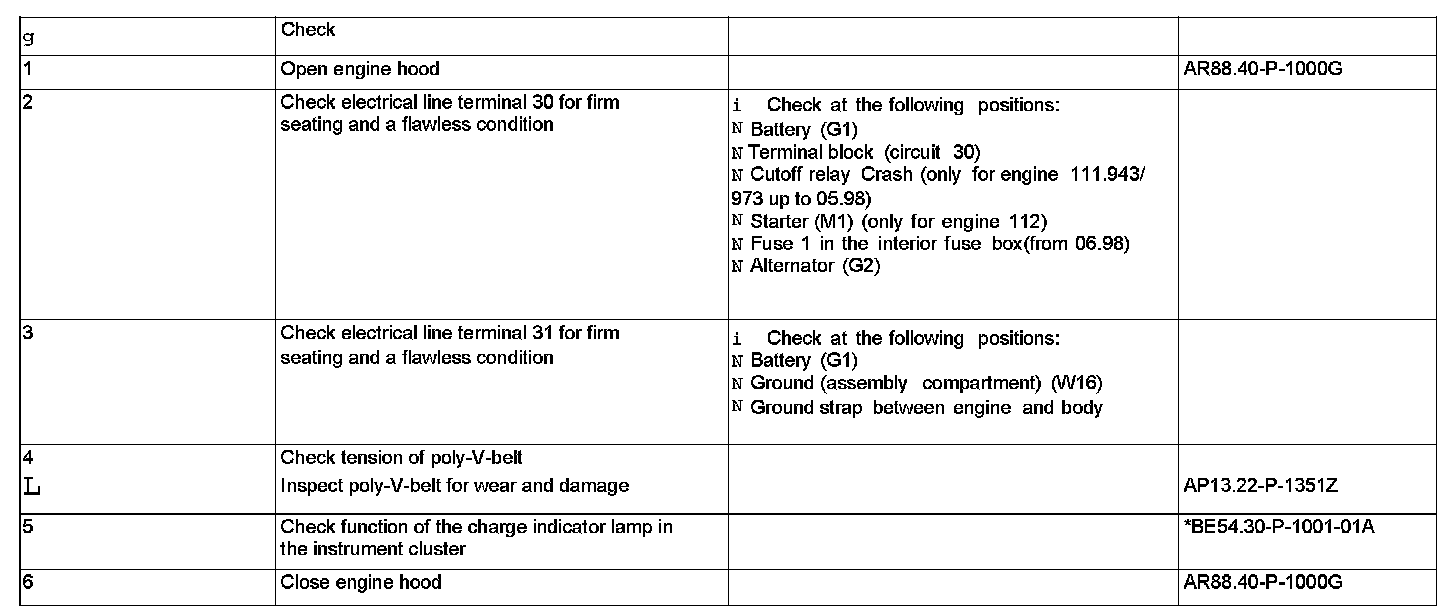

Steps 1 - 6:

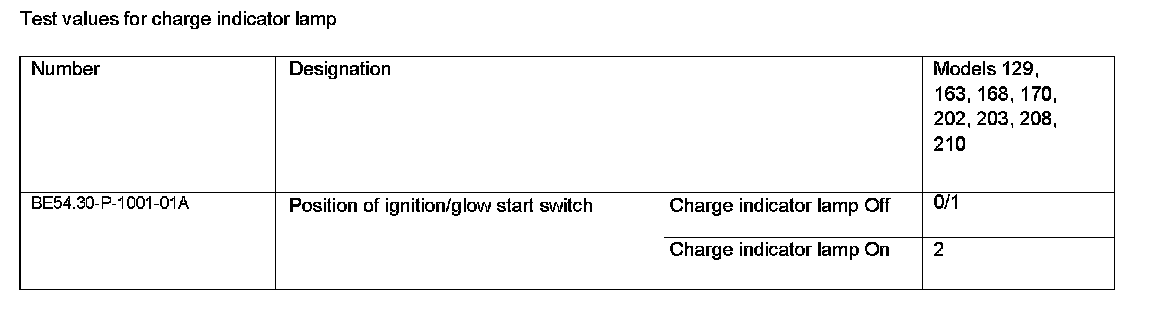

Test Values For Charge Indicator Lamp:
