Seat Occupant Sensor: Service and Repair

AR91.60-P-0720G Remove/Install Seat Occupied Recognition Sensor:

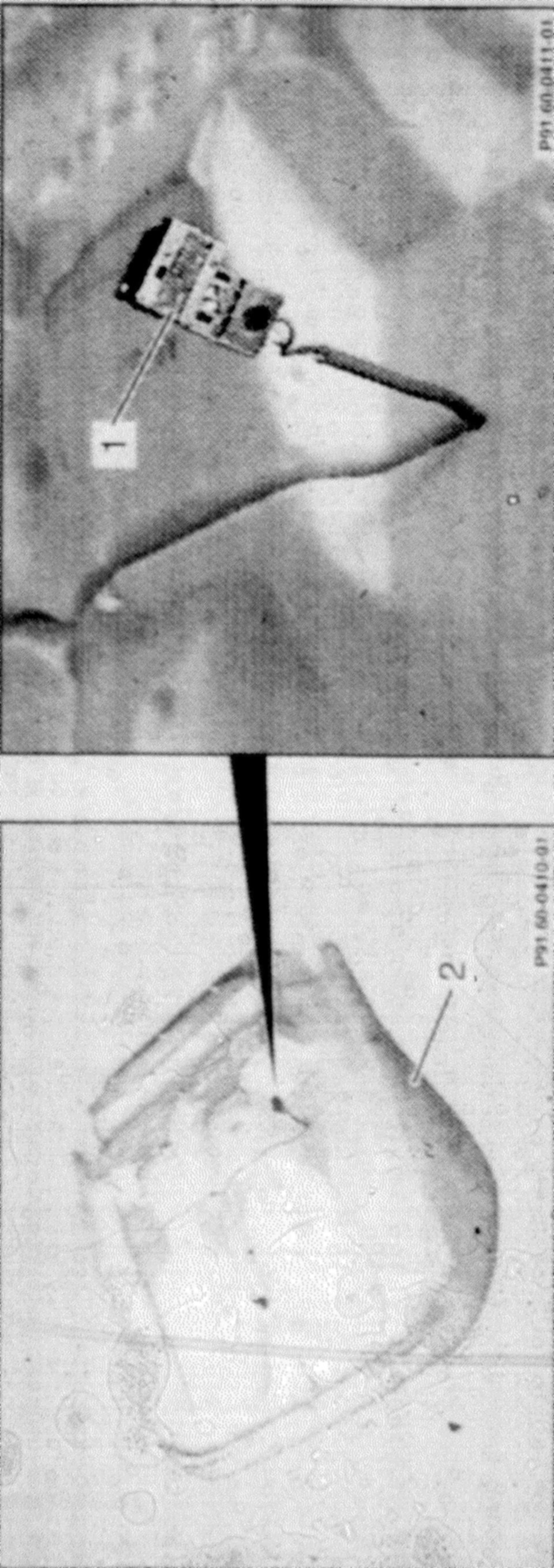

1 Plug
2 Foam rubber pad

Removal and Installation:
1. Remove ignition key.
2. Disconnect plug [1] from occupied seat recognition sensor below passenger seat.
3. Remove cover on front seat cushion.
4. Remove foam rubber pad [2]. The sensor is integrated into the pad.
5. Reinstall in opposite order.
