Power Trunk / Liftgate Lock Switch: Service and Repair

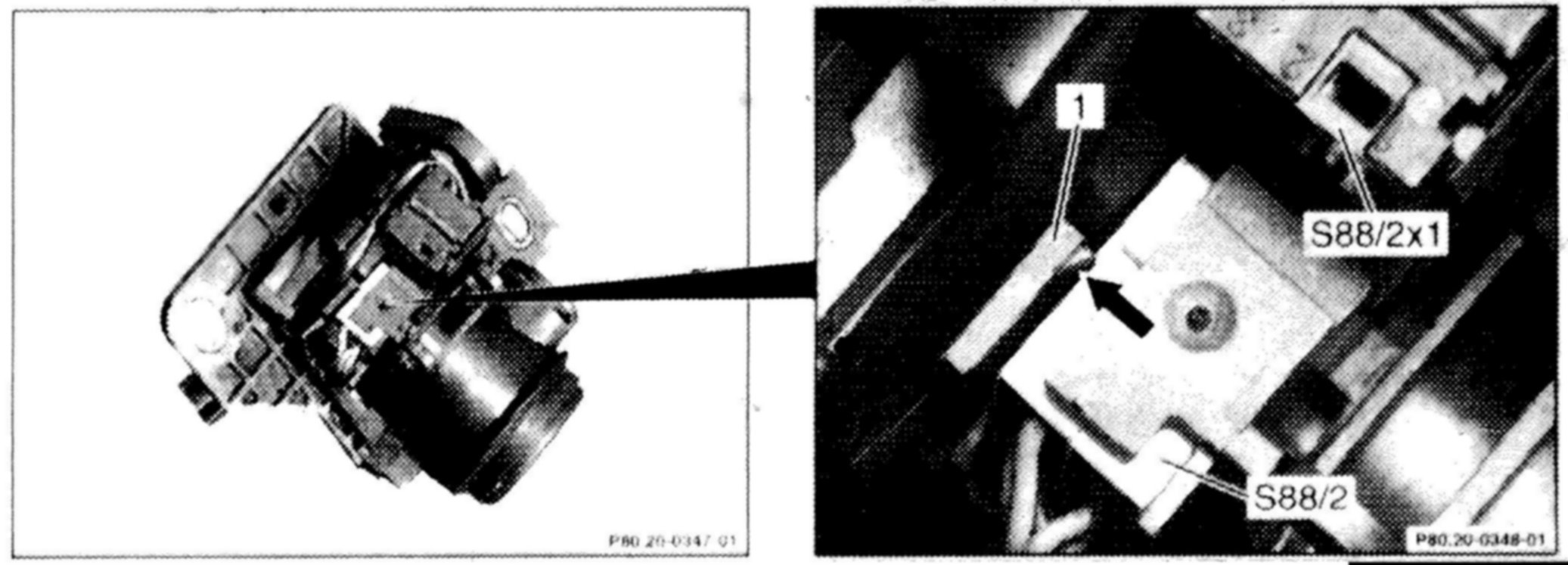

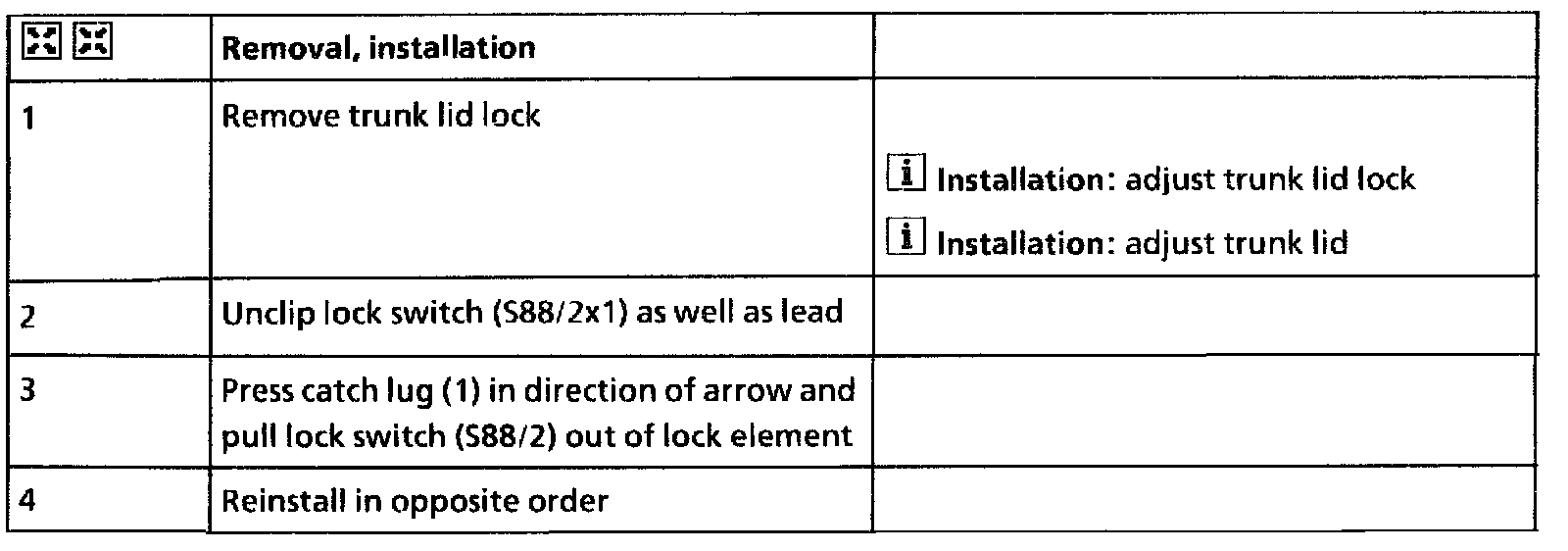

Remove/Install Lock Switch in Trunk Lid







1 Catch lug
S88/2 Trunk lid lock switch
S88/2x1 Trunk lid lock switch connector
