Power Seat Switch: Service and Repair

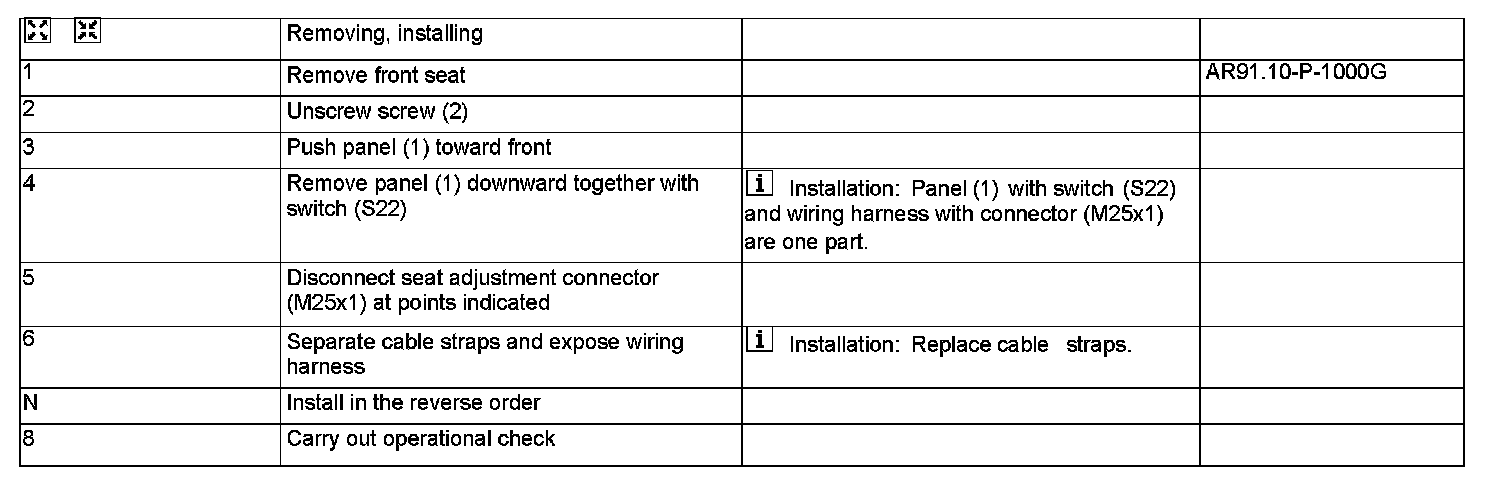

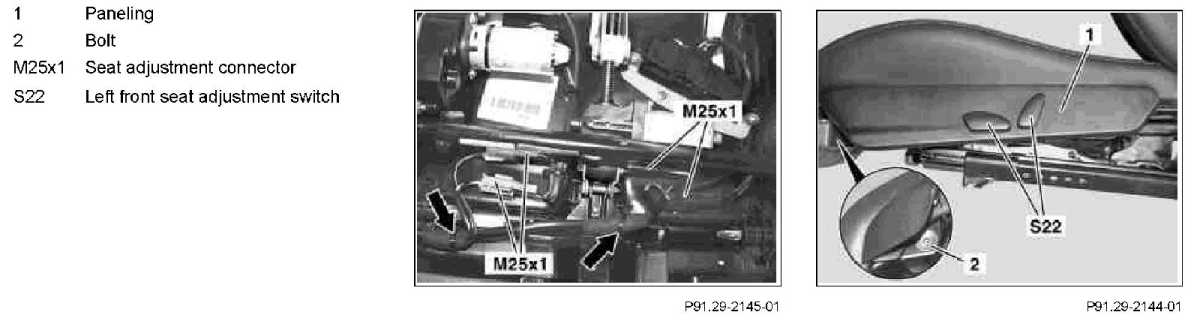

AR91.29-P-0003GG Remove/Install Seat Adjustment Switch Unit On Front Seats
- with CODE (560) Left and right electrically adjustable front seat
