General Module: Service and Repair

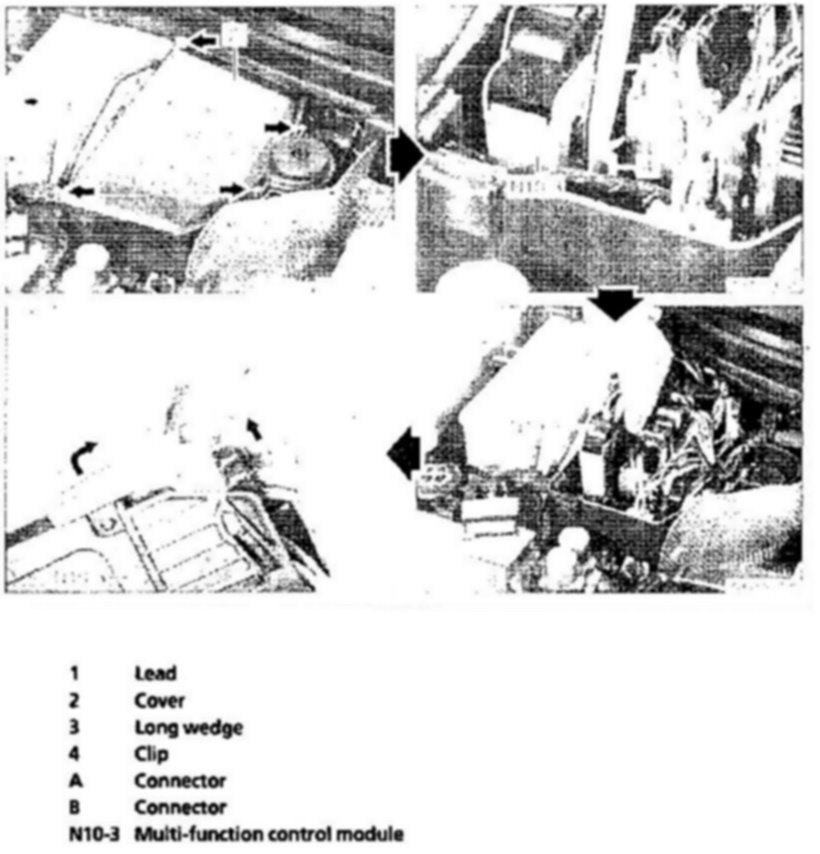

Removing and installing multifunction control module

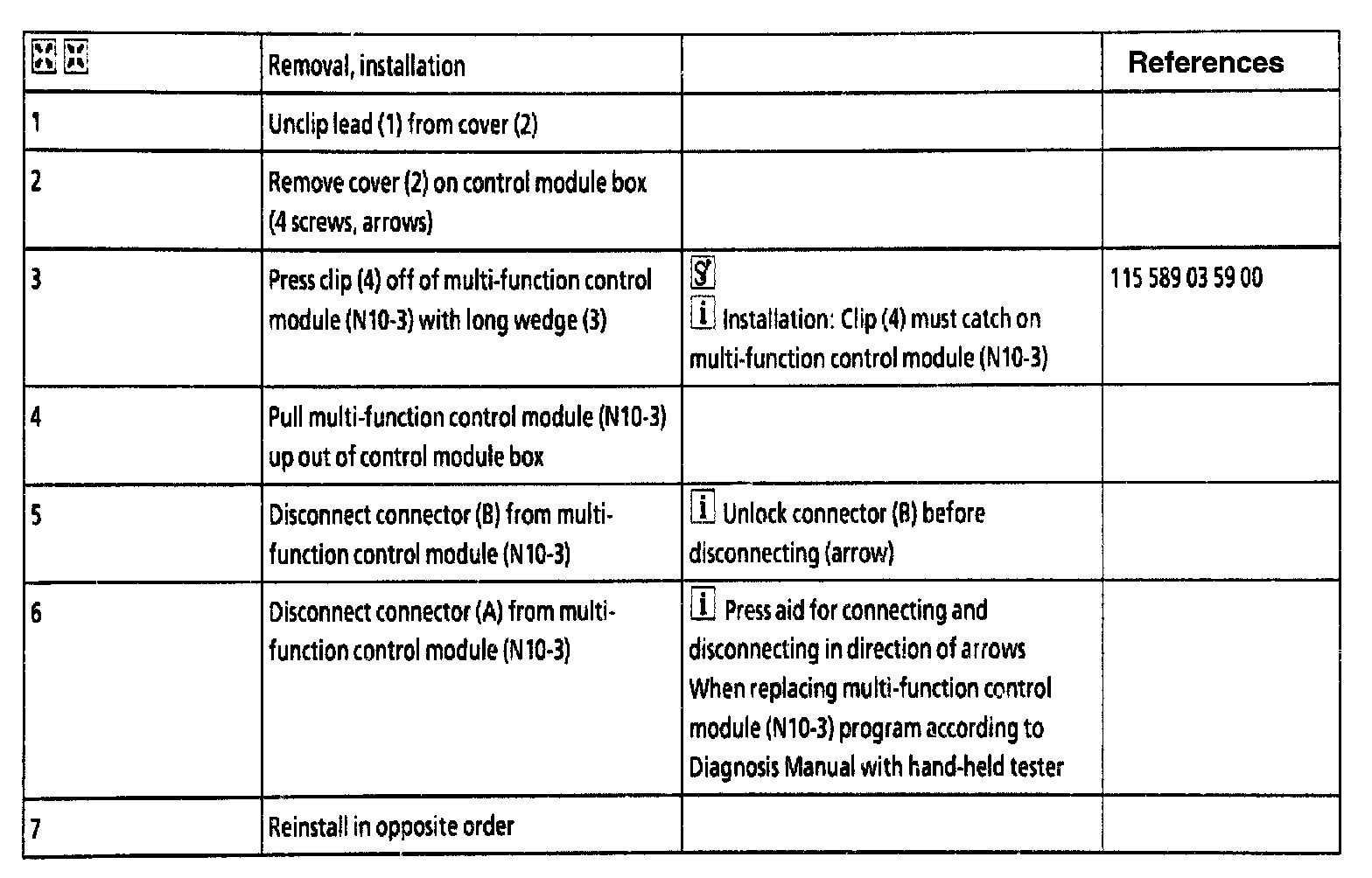

Removal, installation

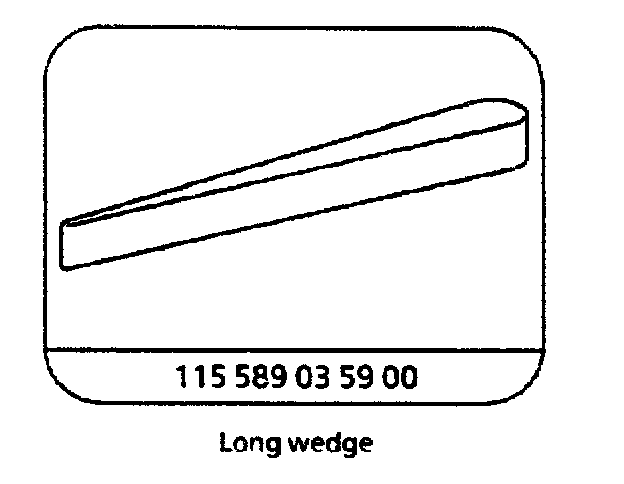

References, Special tools
