Automatic Transmission (AT) PE27.19-U-2000RA (As of Mar 1, 2000)
Automatic Transmission (AT) PE27.19-U-2000RA (As of Mar 1, 2000)
Automatic Transmission (AT) From Mar 1, 2000

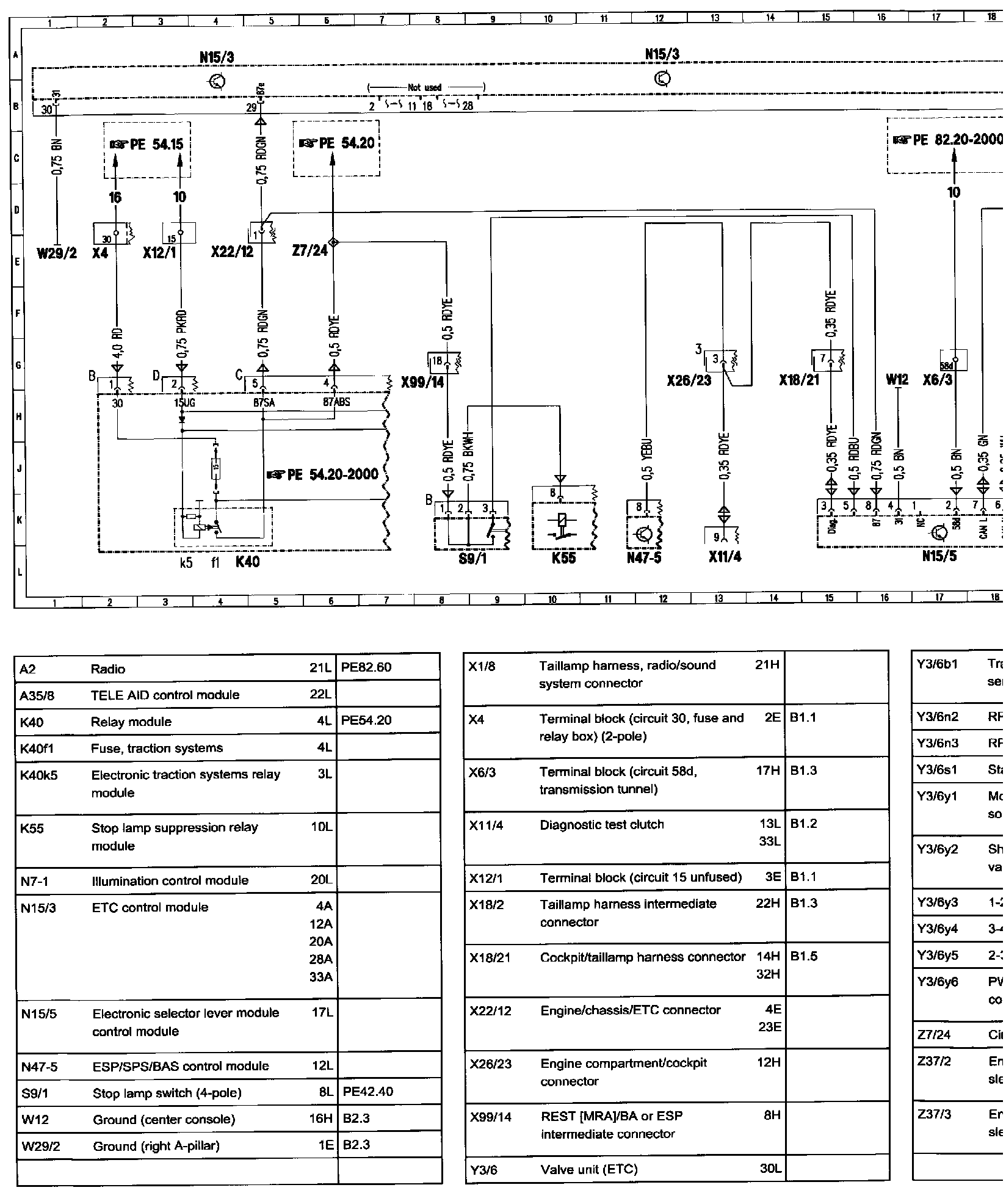

9� �O� Wiring Diagram:

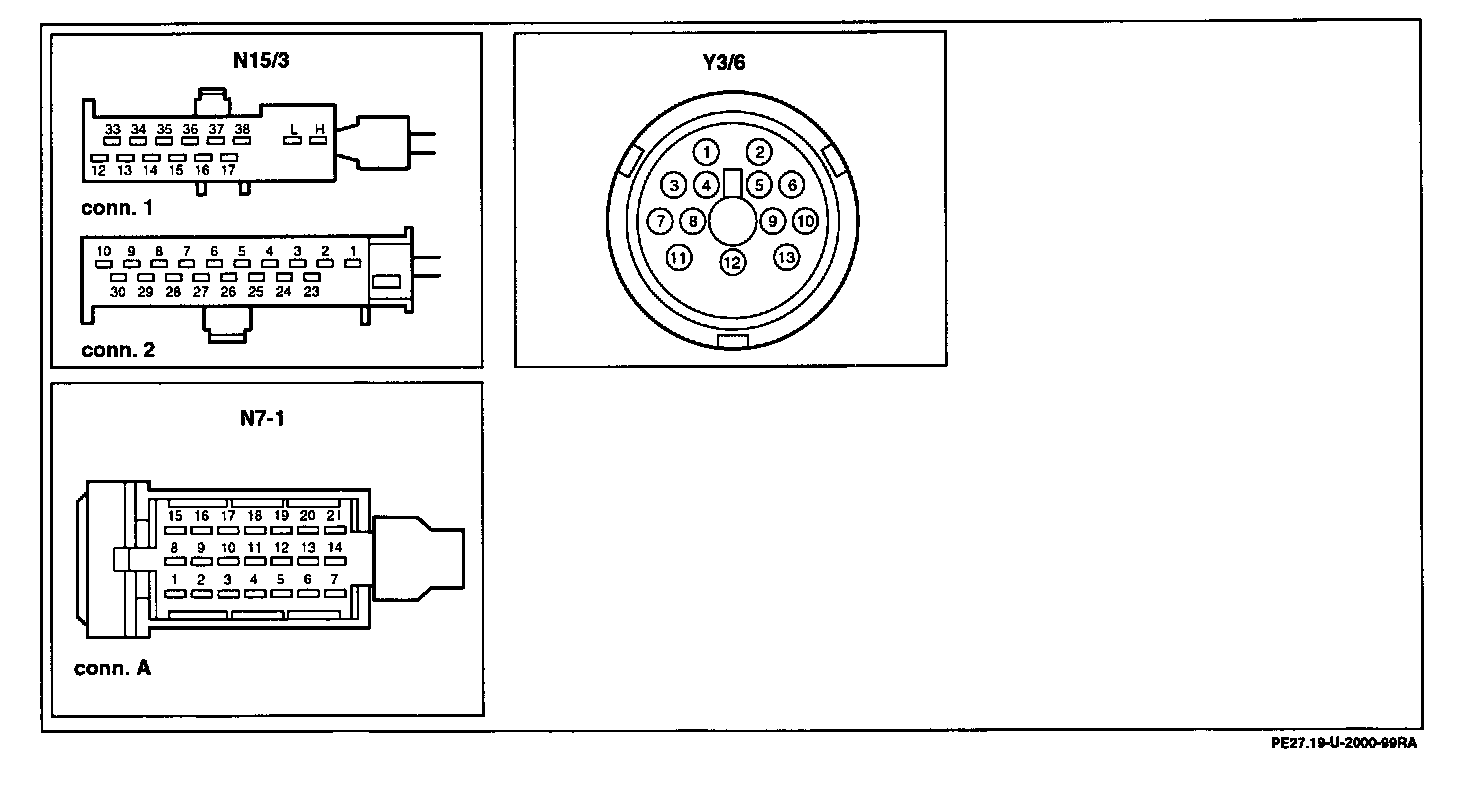

Connector Assignment:

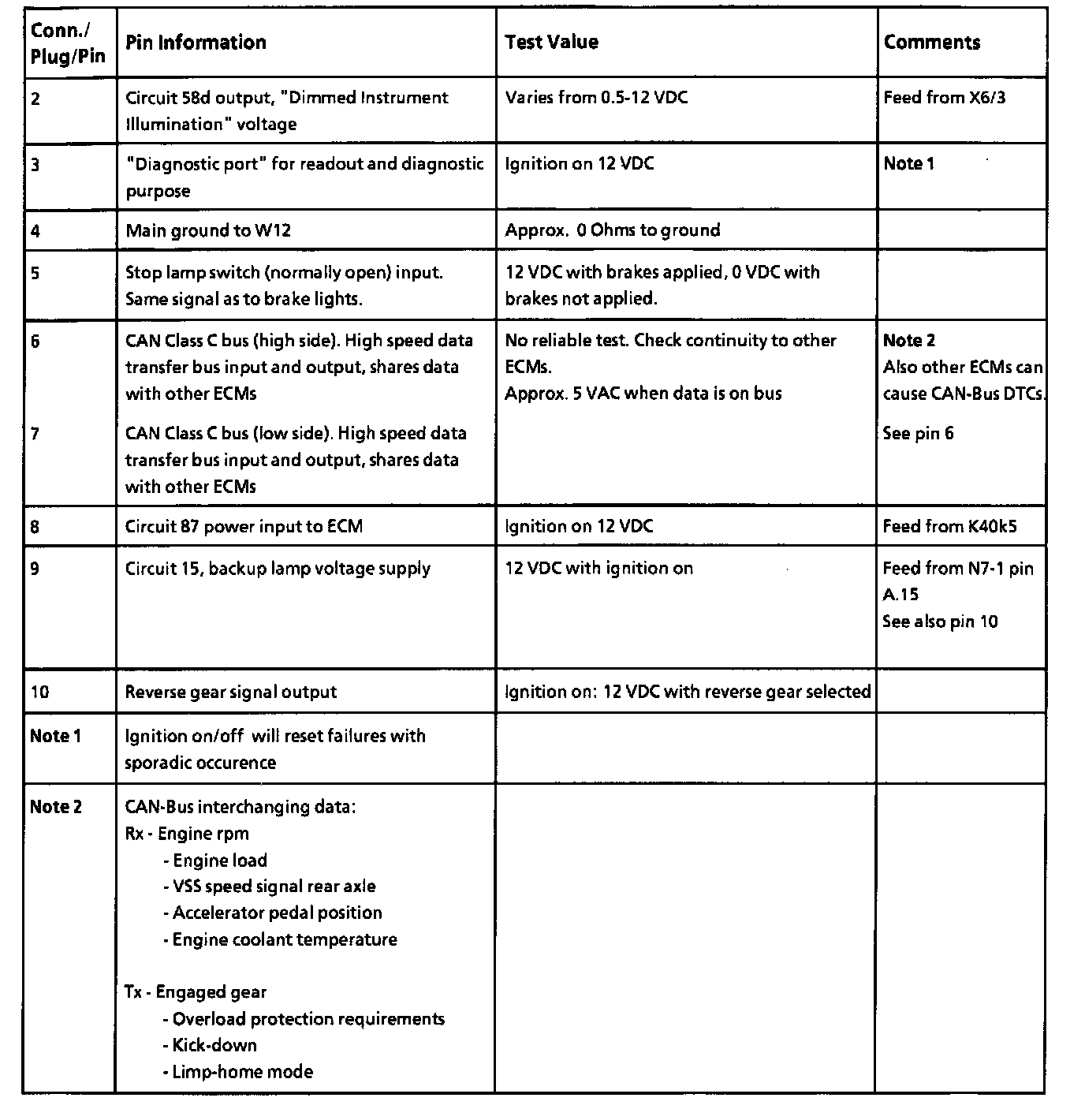

Pin Information, Part 1:
Pin Information, Part 2:
