Automatic Transmission (AT) PE27.19-U-2000L (Up to Feb 28,2000)
Automatic Transmission (AT) Up to Feb 28, 2000

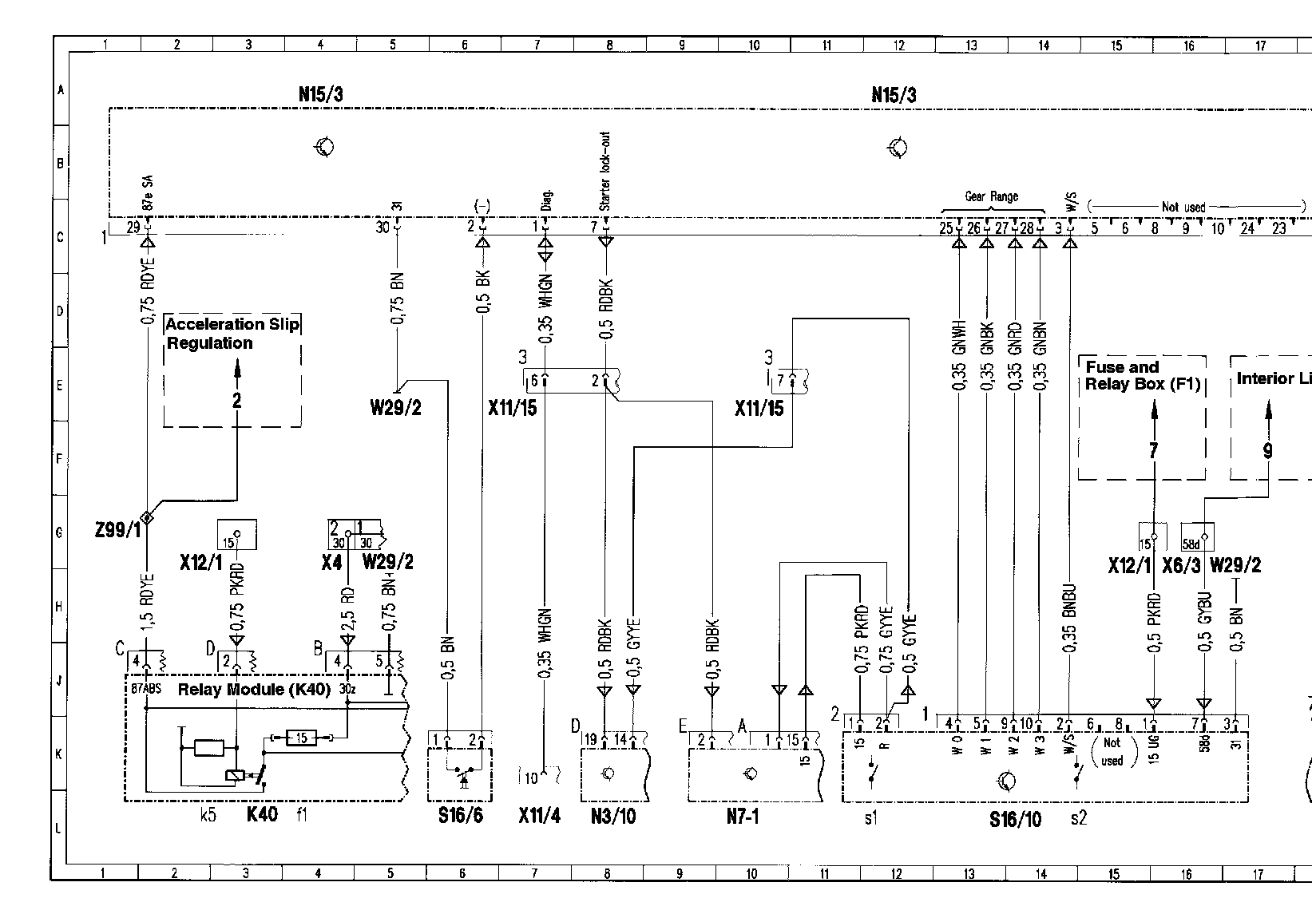

Wiring Diagram
Ro� Applicable as of 12/98:

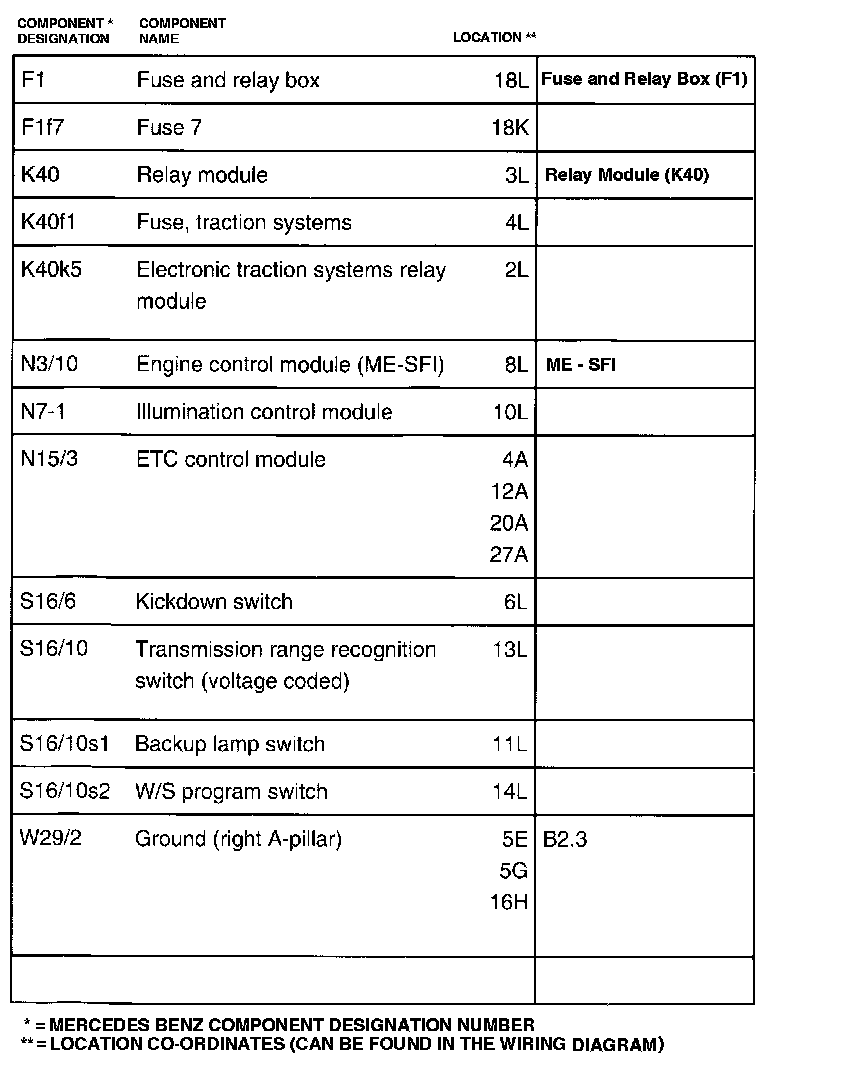

Component Grid Location
F1 - W29/2:

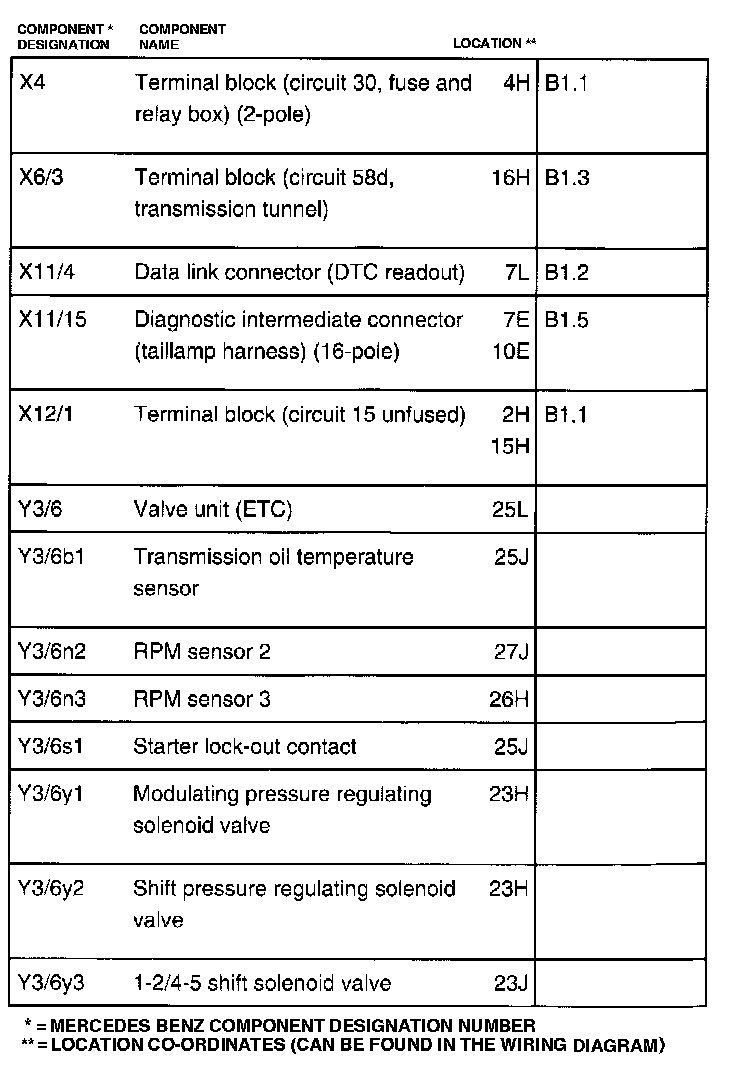

X4 - Y3/6y3:

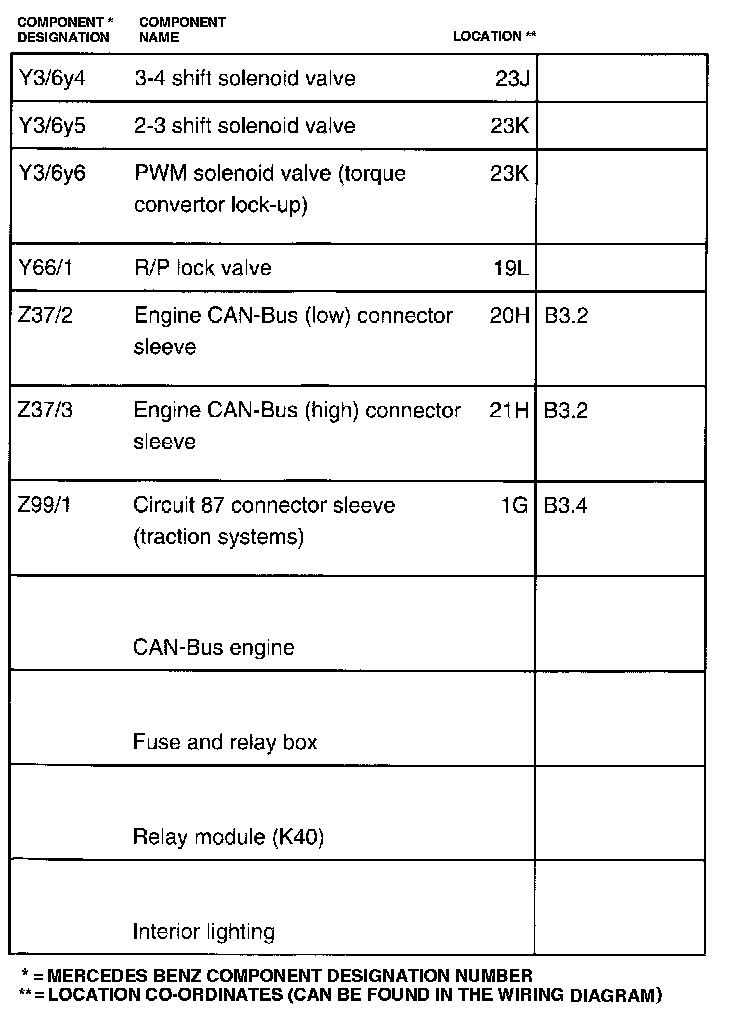

Y3/6y4 - Z99/1:

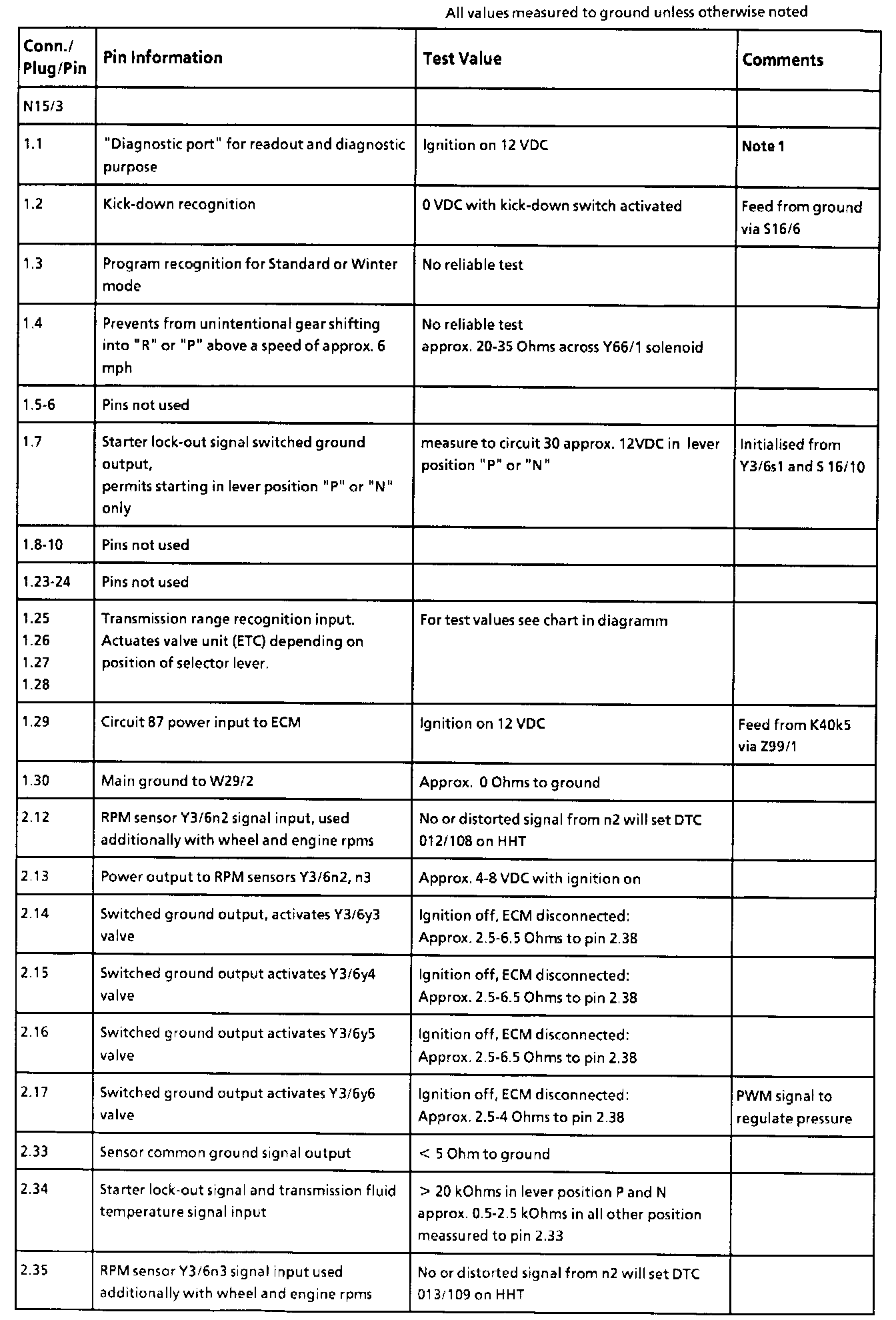

Pin-Out Testing - Component: N15/3
Connectors 1 and 2:

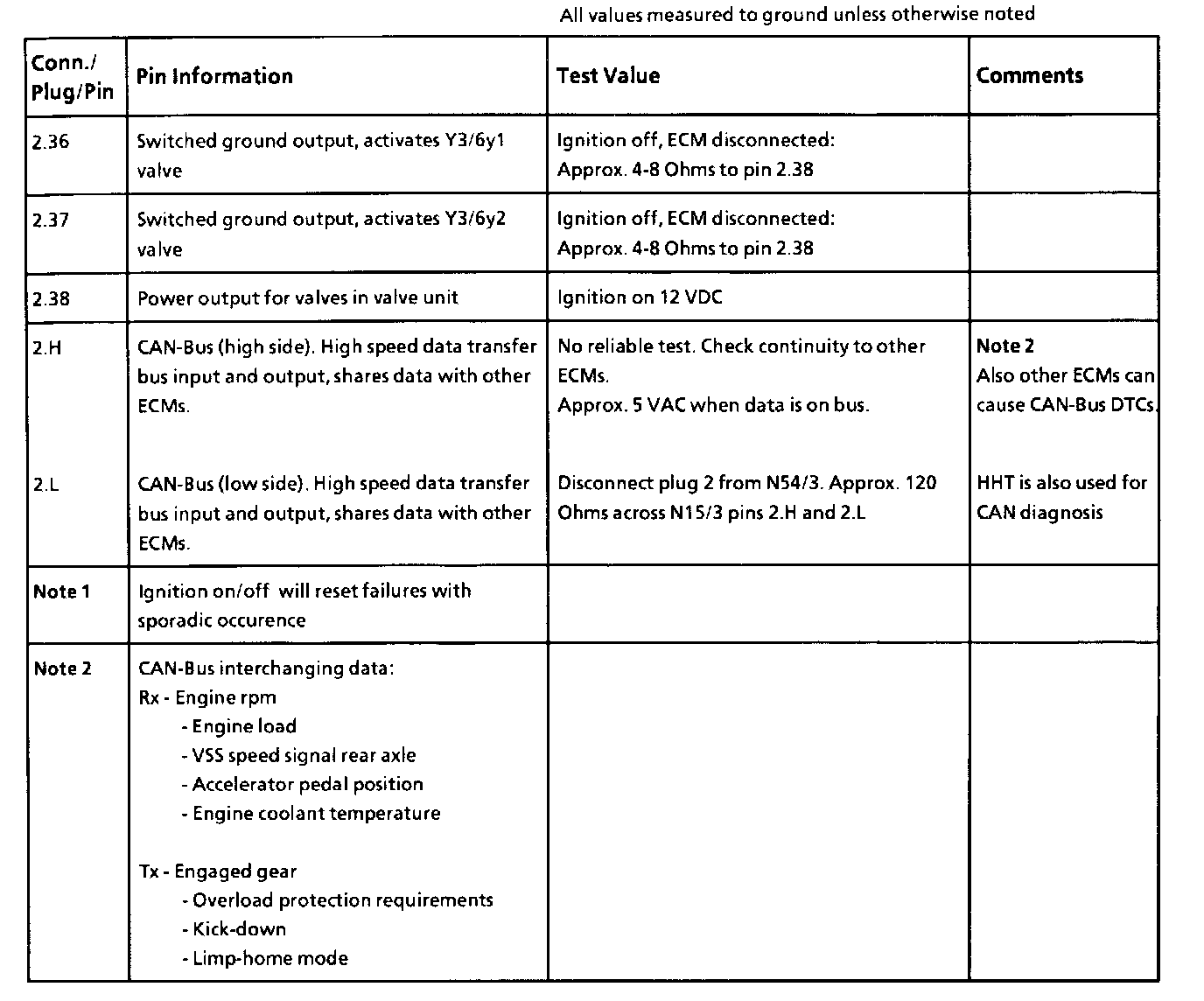

Connector 2 (continued):

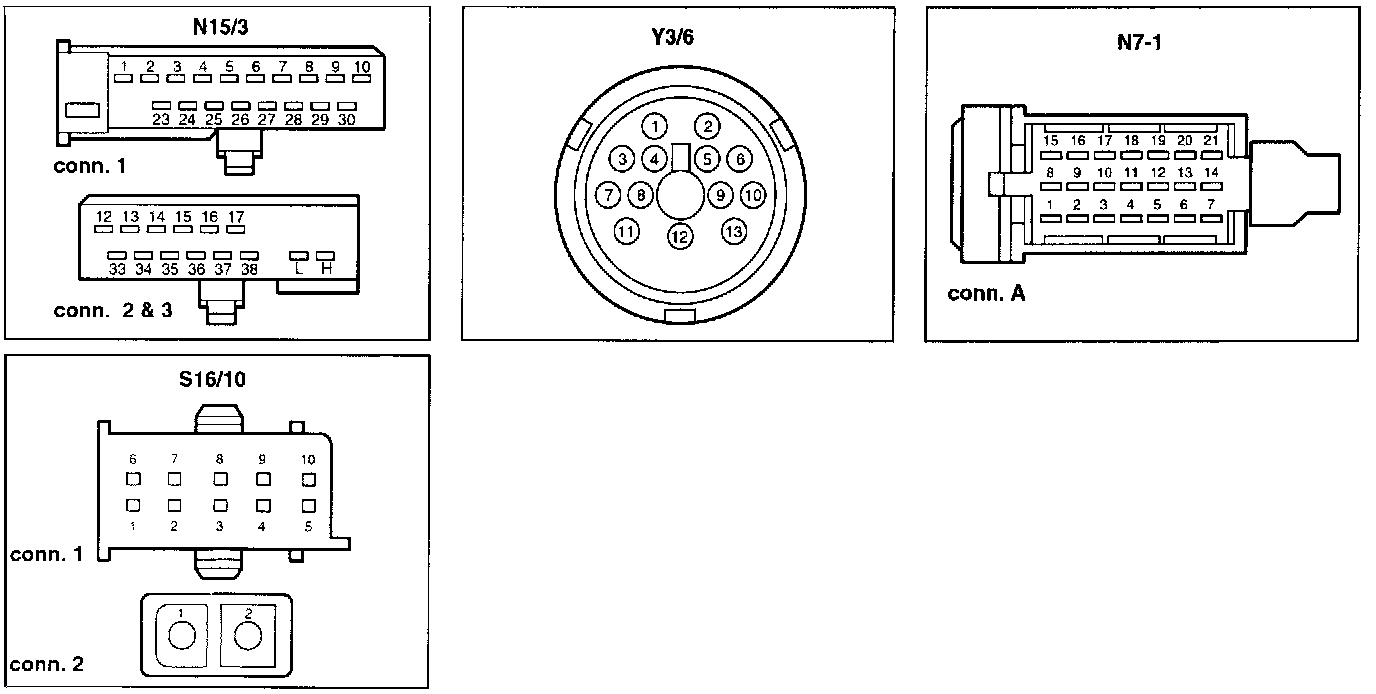

Connector Views:

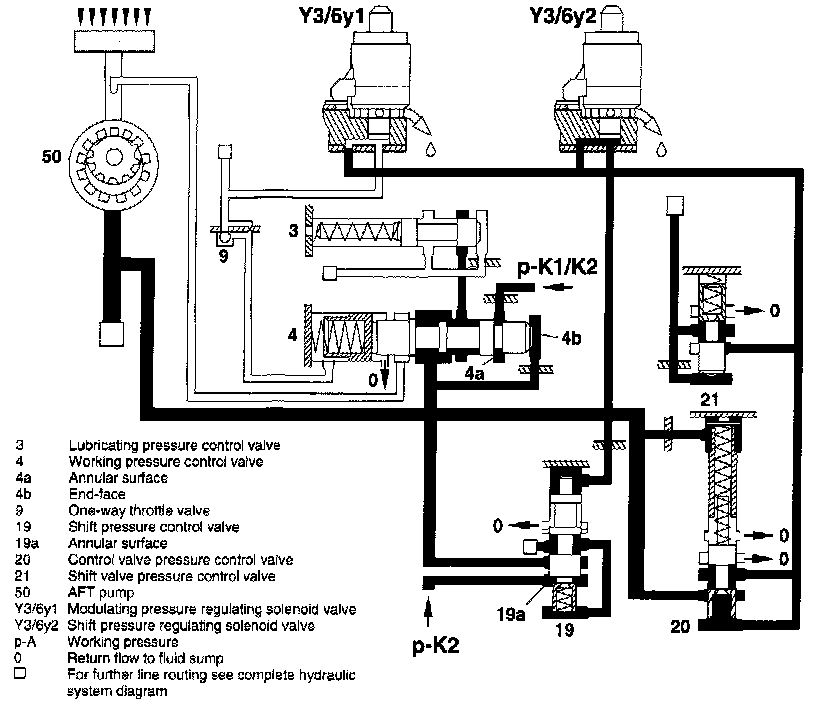

Hydraulic Circuit
