Chassis Specific Locations

Motor Electronics (ME-SFI) Fuel Injection And Ignition System Arrangement Of Components

Model 170




Model 170

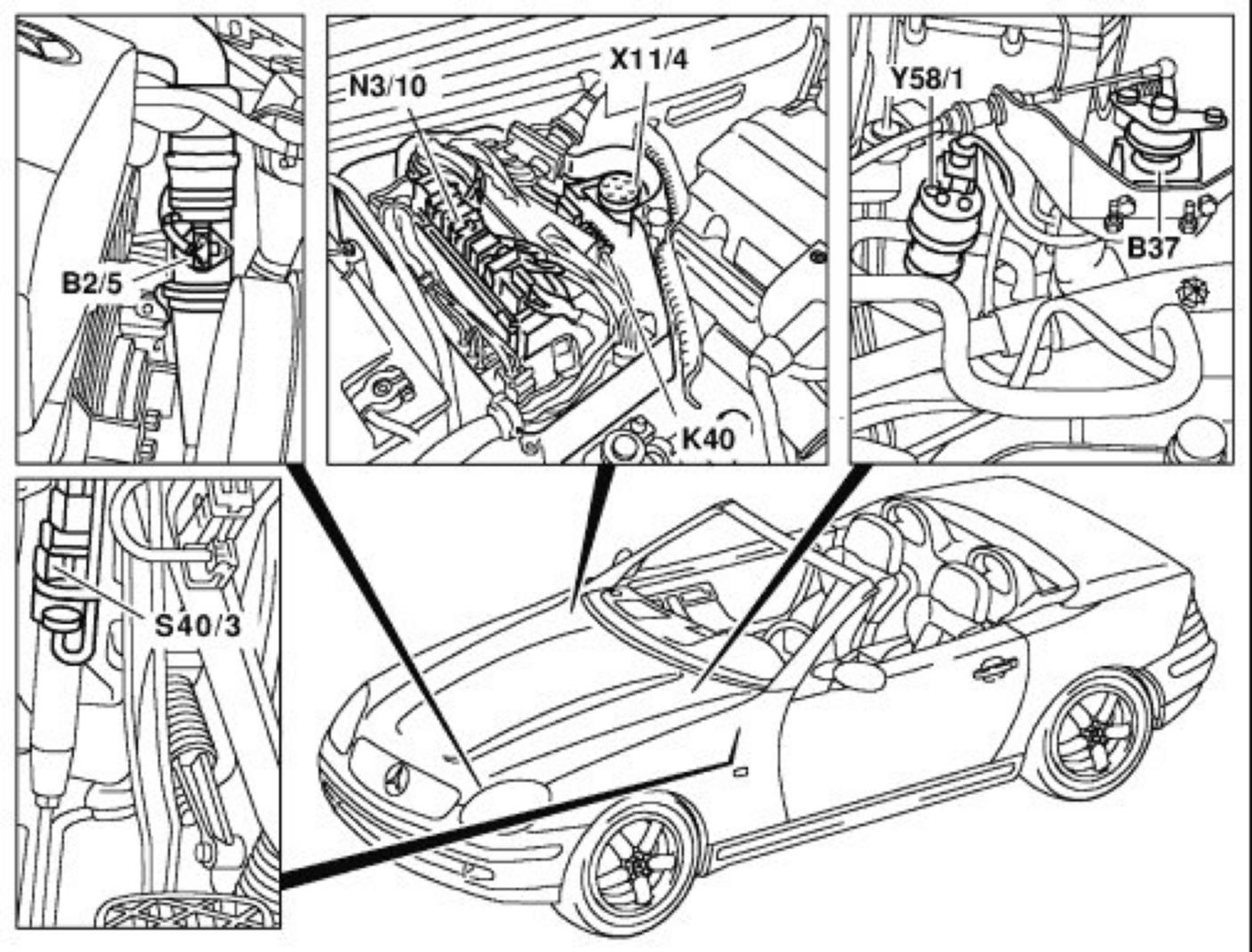

B2/5 Hot film mass air flow sensor with intake air temperature sensor
B37 Pedal value sensor
K40 Relay module with fuel pump relay
N3/10 ME-SFI control module
S40/3 Idle speed control clutch pedal switch (only MT)
X11/4 Datalink connector, 38-pin
Y58/1 Purge control valve




Model 170

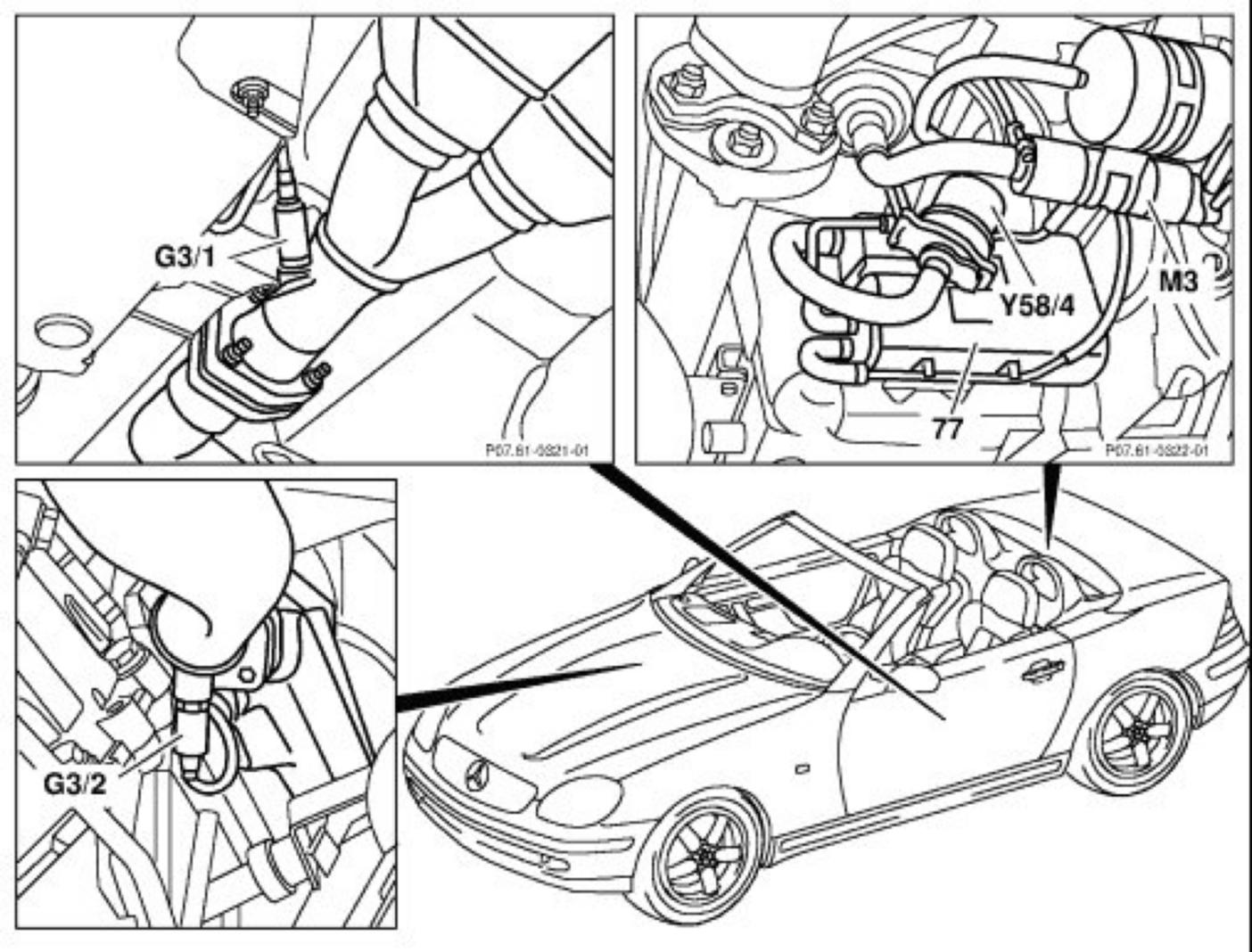

77 Activated charcoal canister
G3/1 O2 sensor after TWC (engine 111 (USA))
G3/2 O2 sensor before TWC (engine 111)
M3 Fuel pump
Y58/4 Activated charcoal canister shutoff valve (only (USA))




Model 170

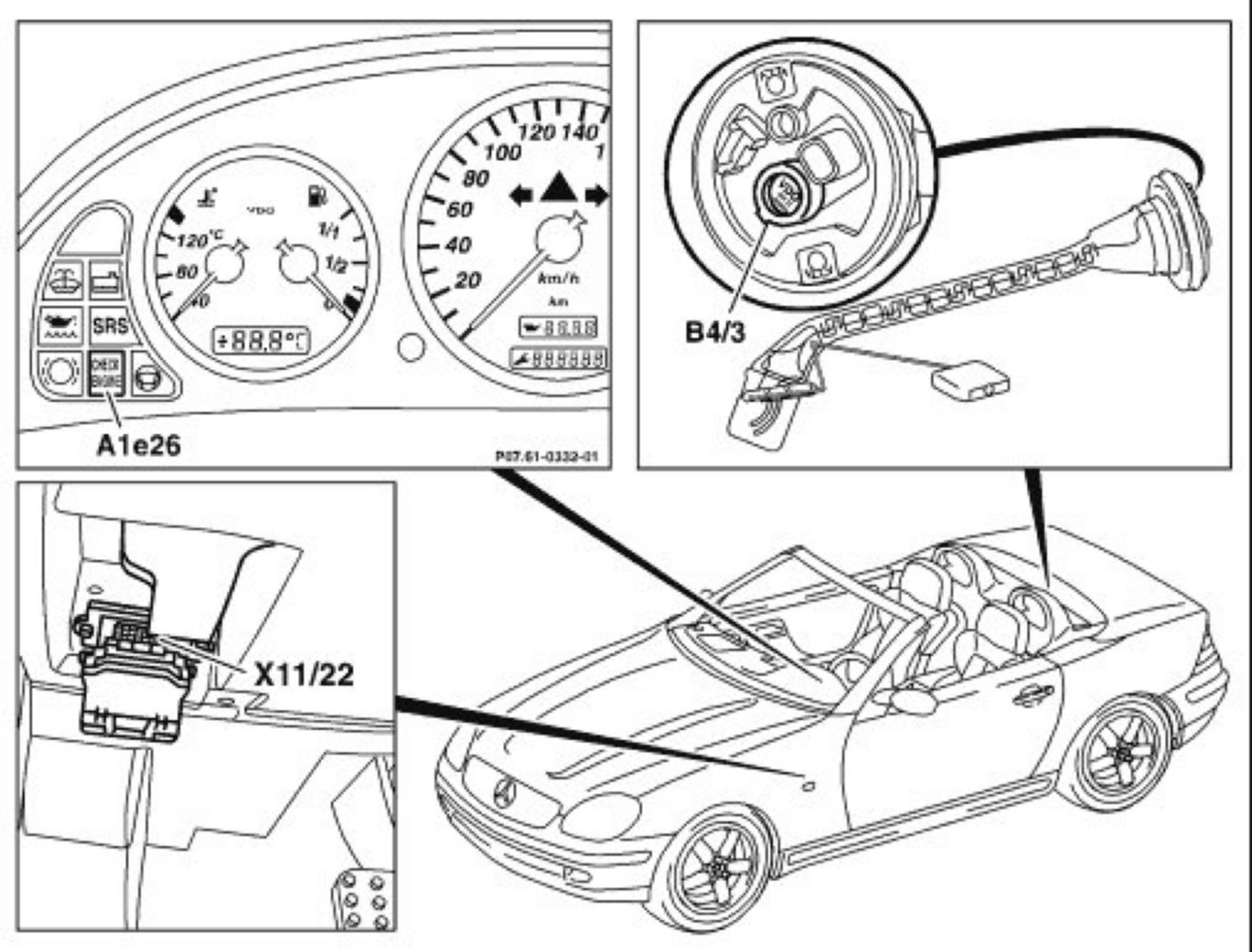

A1e26 CHECK ENGINE malfunction indicator lamp (only (USA))
B4/3 Fuel tank pressure sensor (only (USA))
X11/22 Datalink connector (further designation X11/4




Model 170 with engine 112

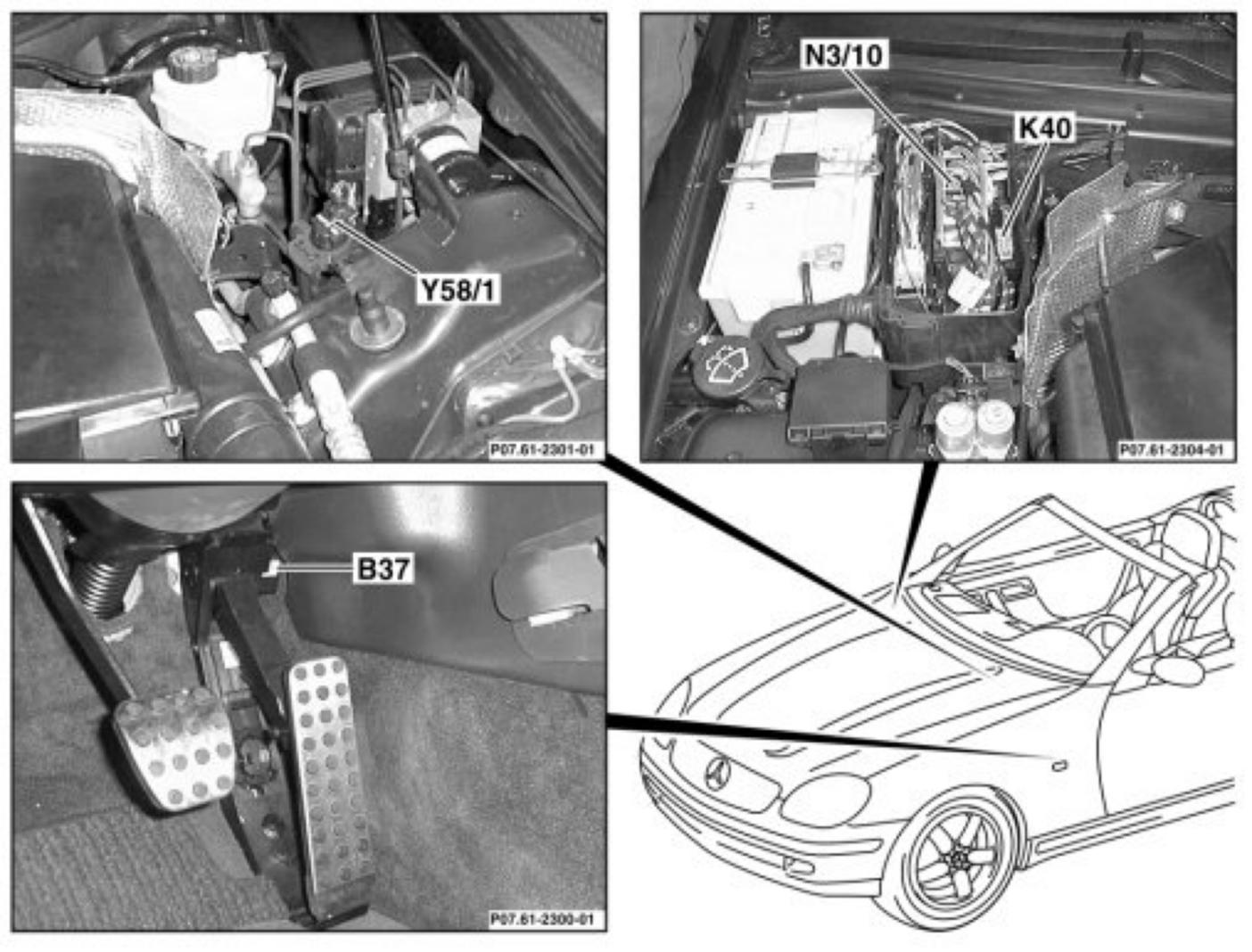

B37 Pedal value sensor
K40 Relay module with fuel pump relay
N3/10 ME-SFI control module
Y58/1 Purge control valve




Model 170 with engine 112
A1e26 CHECK ENGINE MIL (USA)
A1e58 Engine diagnosis malfunction indicator lamp, EURO3/4
N76 Engine and air conditioning electric suction fan control module




Model 170 with engine 112

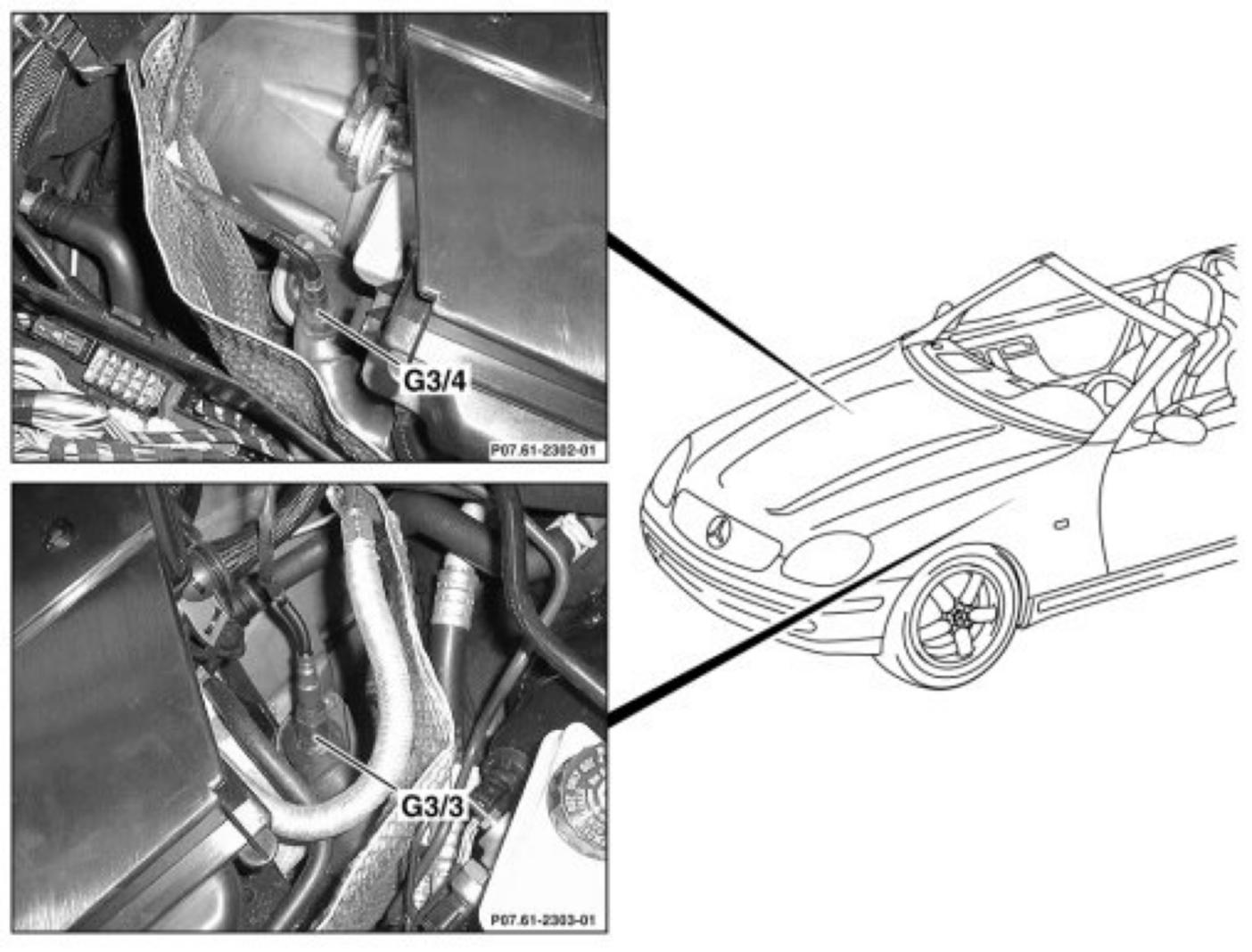

G3/3 Left O2 sensor upstream TWC
G3/4 Right O2 sensor upstream TWC




Model 170 with engine 112

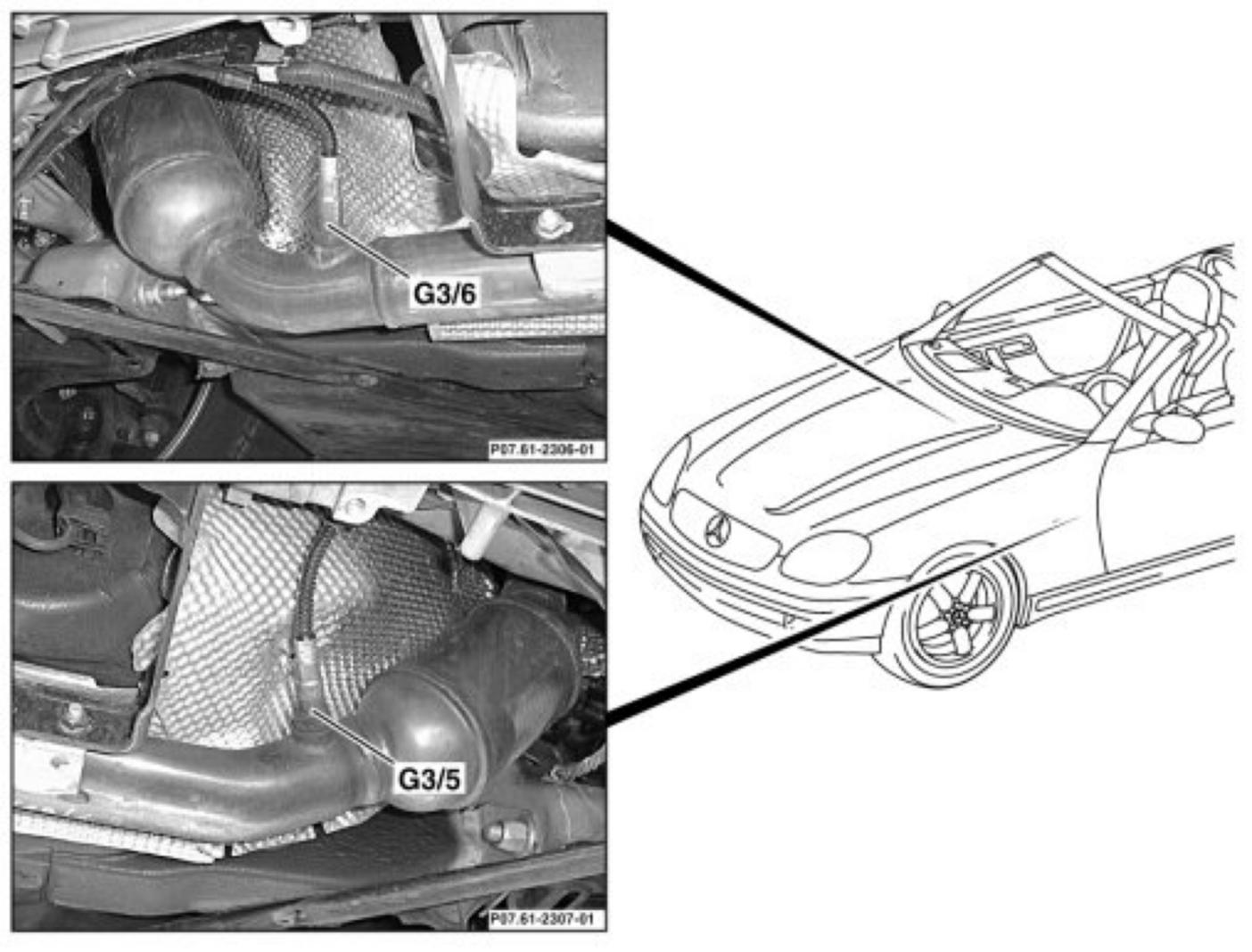

G3/5 Left O2 sensor downstream TWC
G3/6 Right O2 sensor downstream TWC
