Front/Rear Axle Speed Signal (VSS) PE00.19-U-2900RA (As of Mar 1, 2000)
Front/Rear Axle Speed Signal (VSS) PE00.19-U-2900RA (As of Mar 1, 2000)
Front/Rear Axle
VSS
From Mar 1, 2000

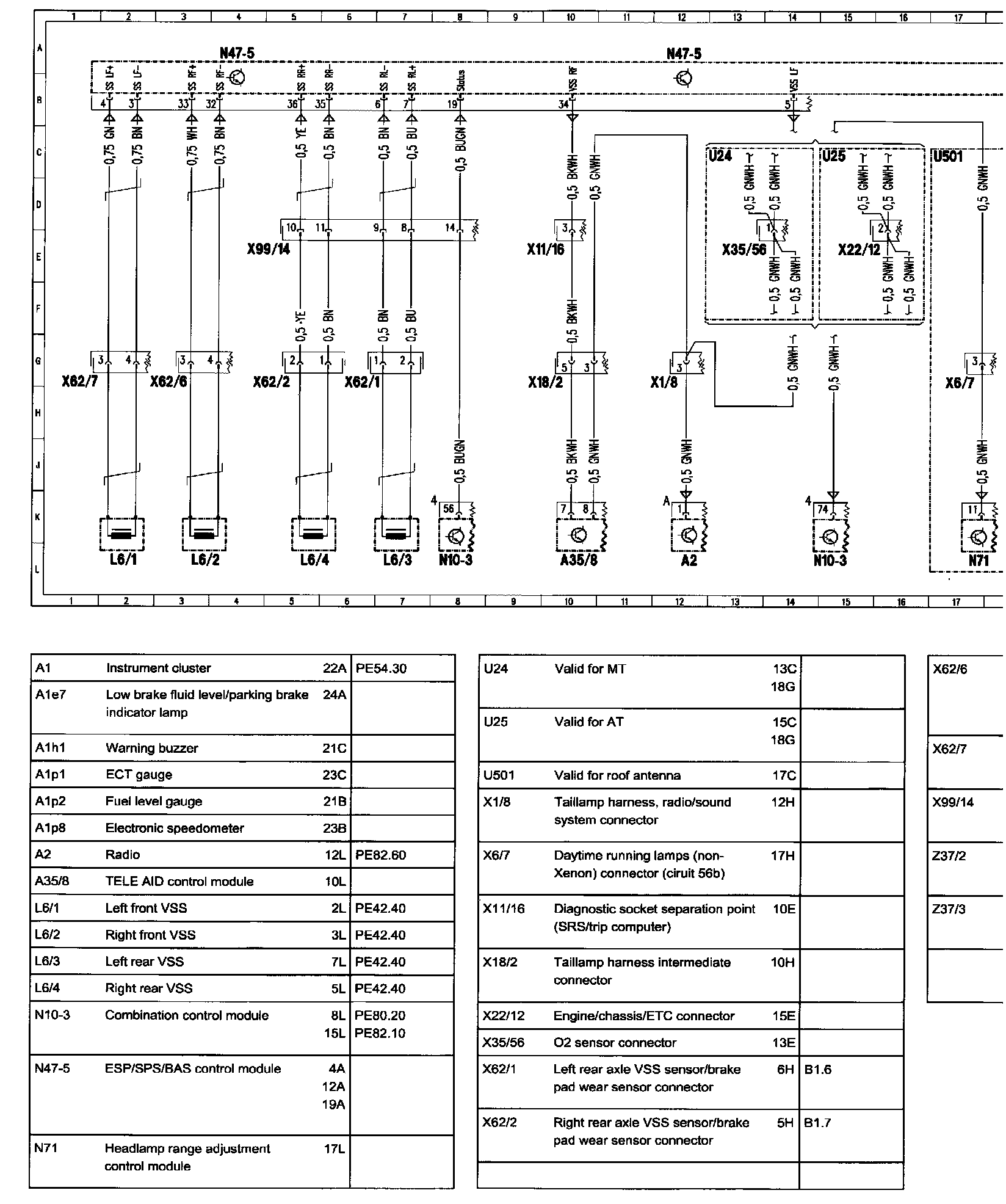

\�� Wiring Diagram:
Connector Assignment:

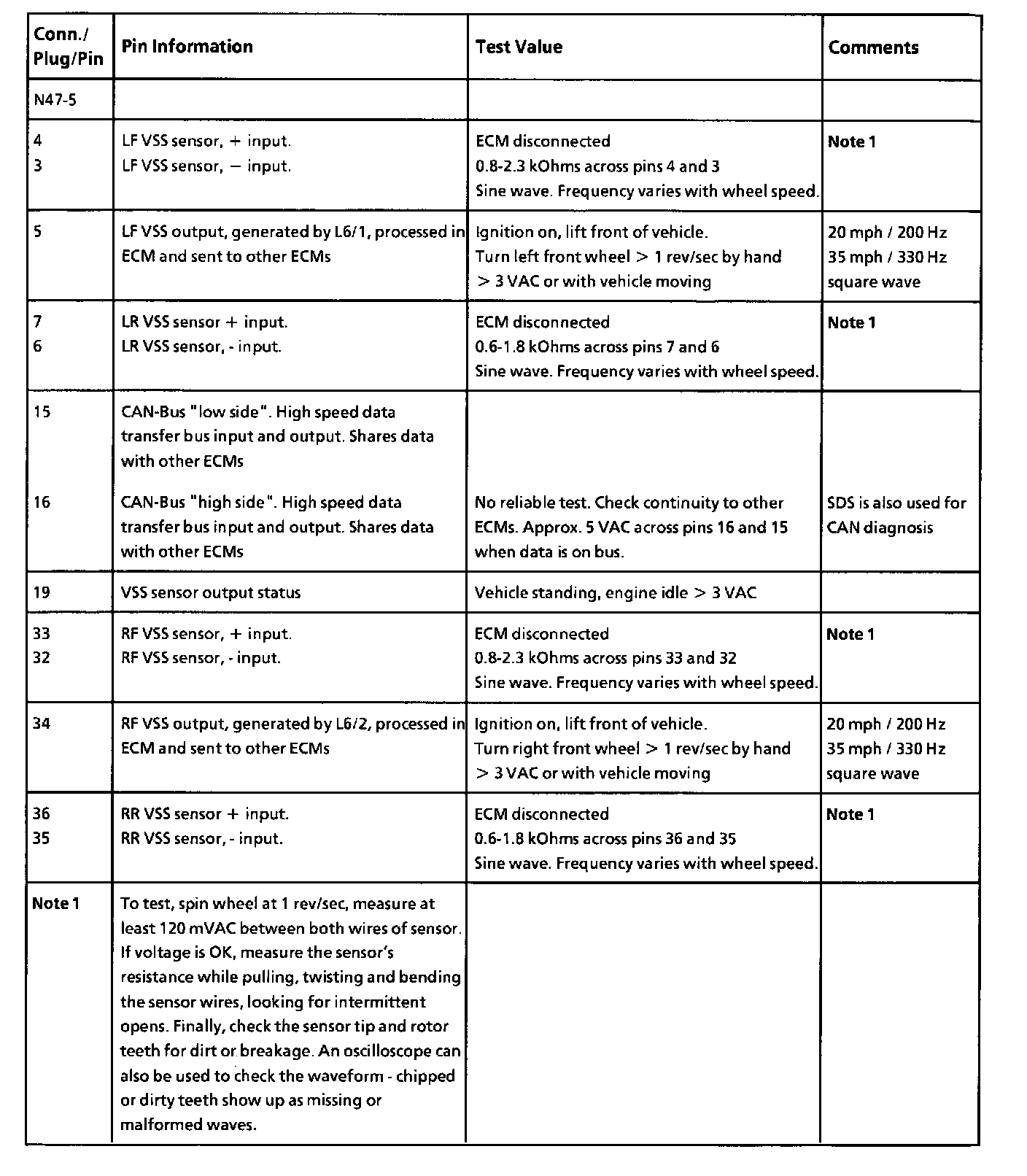

Pin Information:
