AR54.20-P-1257C Remove/Install Control Module Box
AR54.20-P-1257C Remove/Install Control Module Box
AR54.20-P-1257C Removing And Installing
Control Module Box

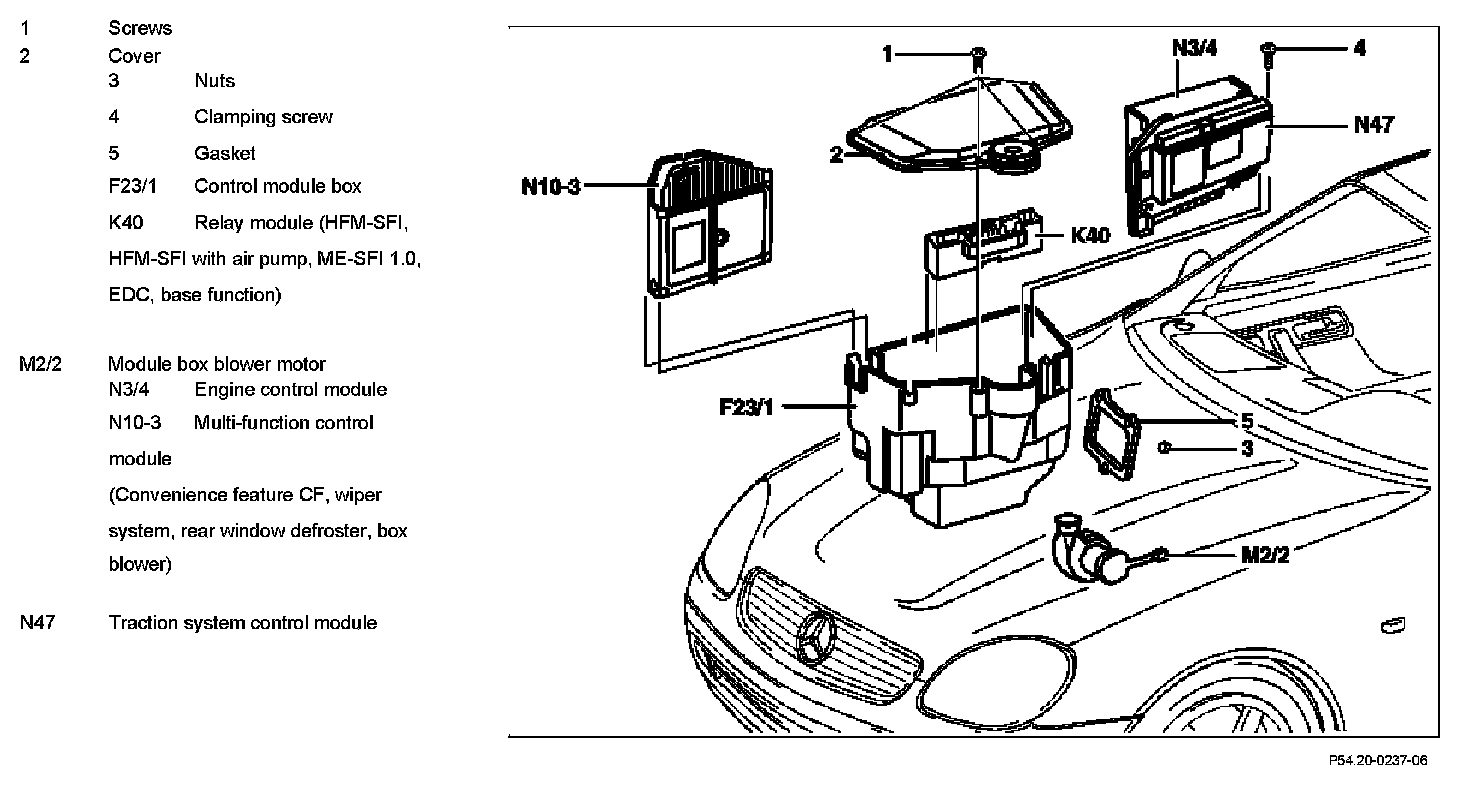

Component Identification:

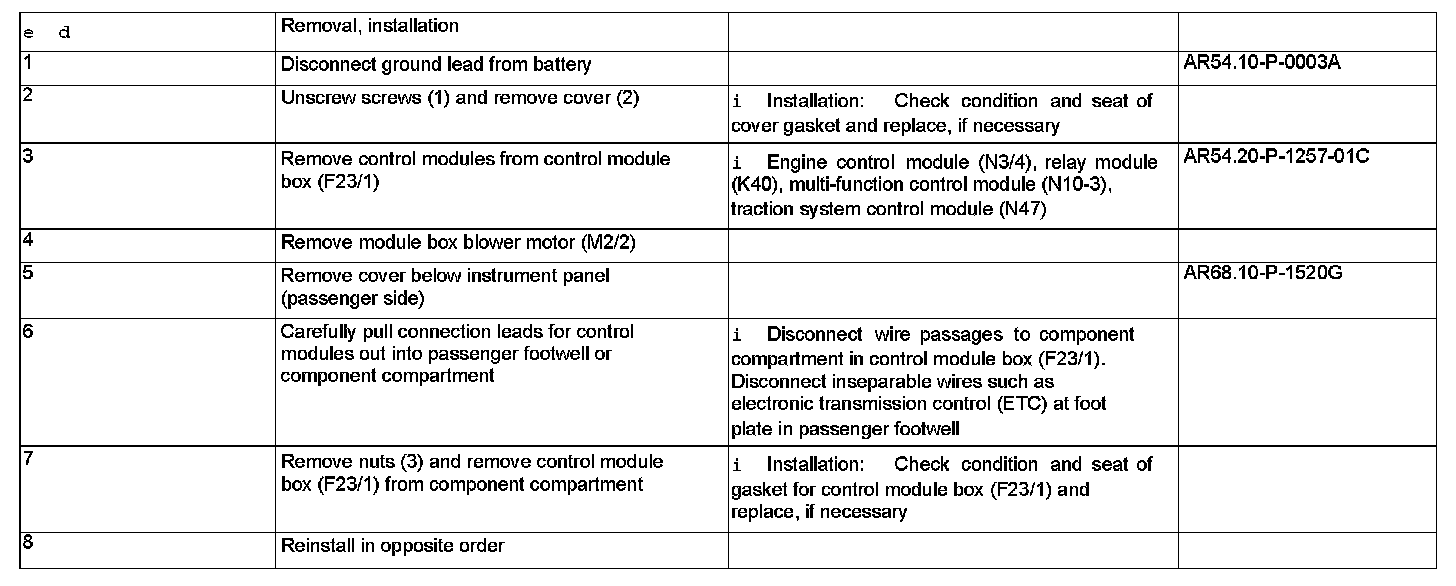

Steps 1 - 8:
