Component Locations - Section 21

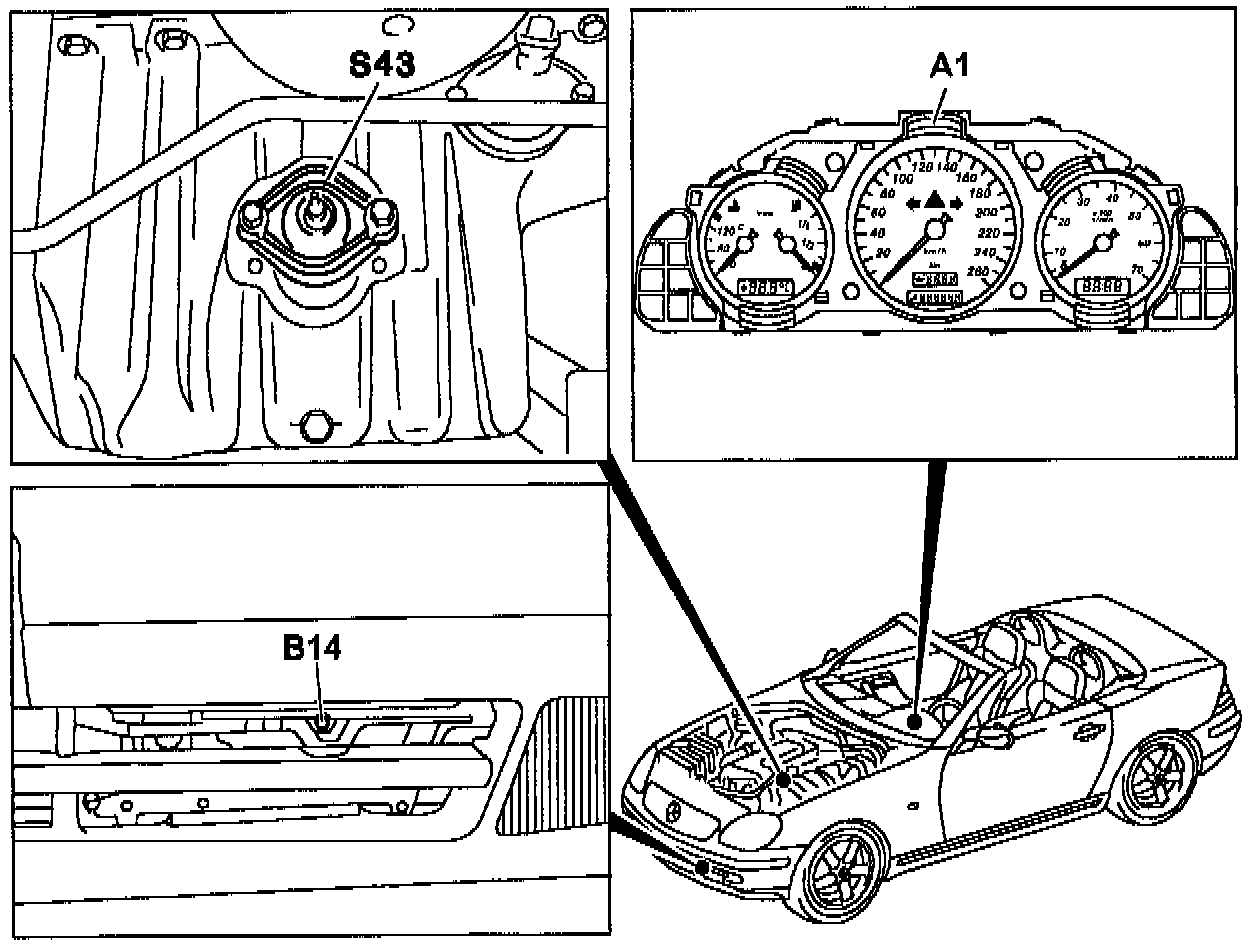

A1 Instrument cluster
B14 Outside temperature indicator temperature sensor
S43 Oil level switch

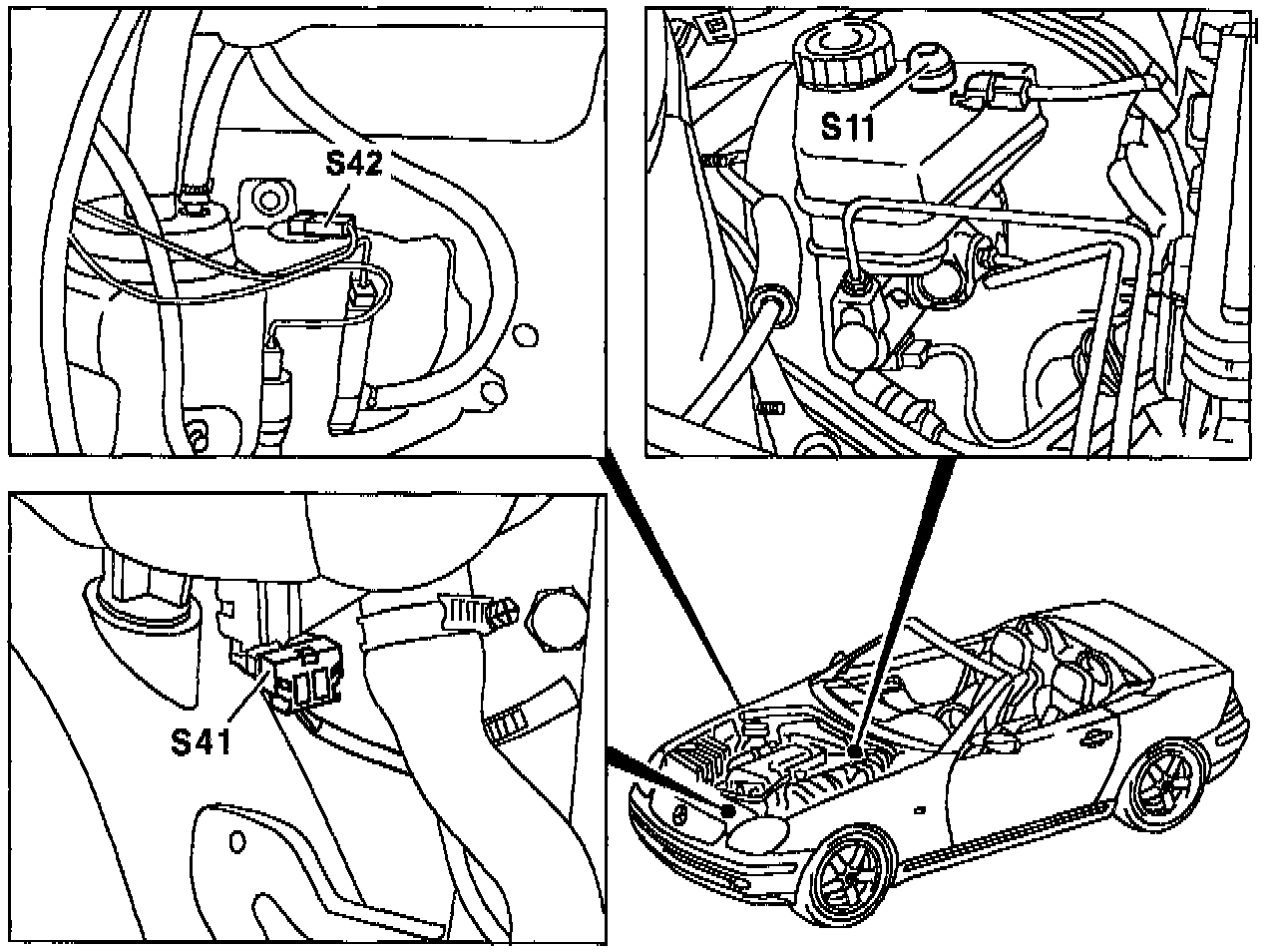

S11 Brake fluid switch
S41 ECL switch
S42 Windshield washer fluid level switch

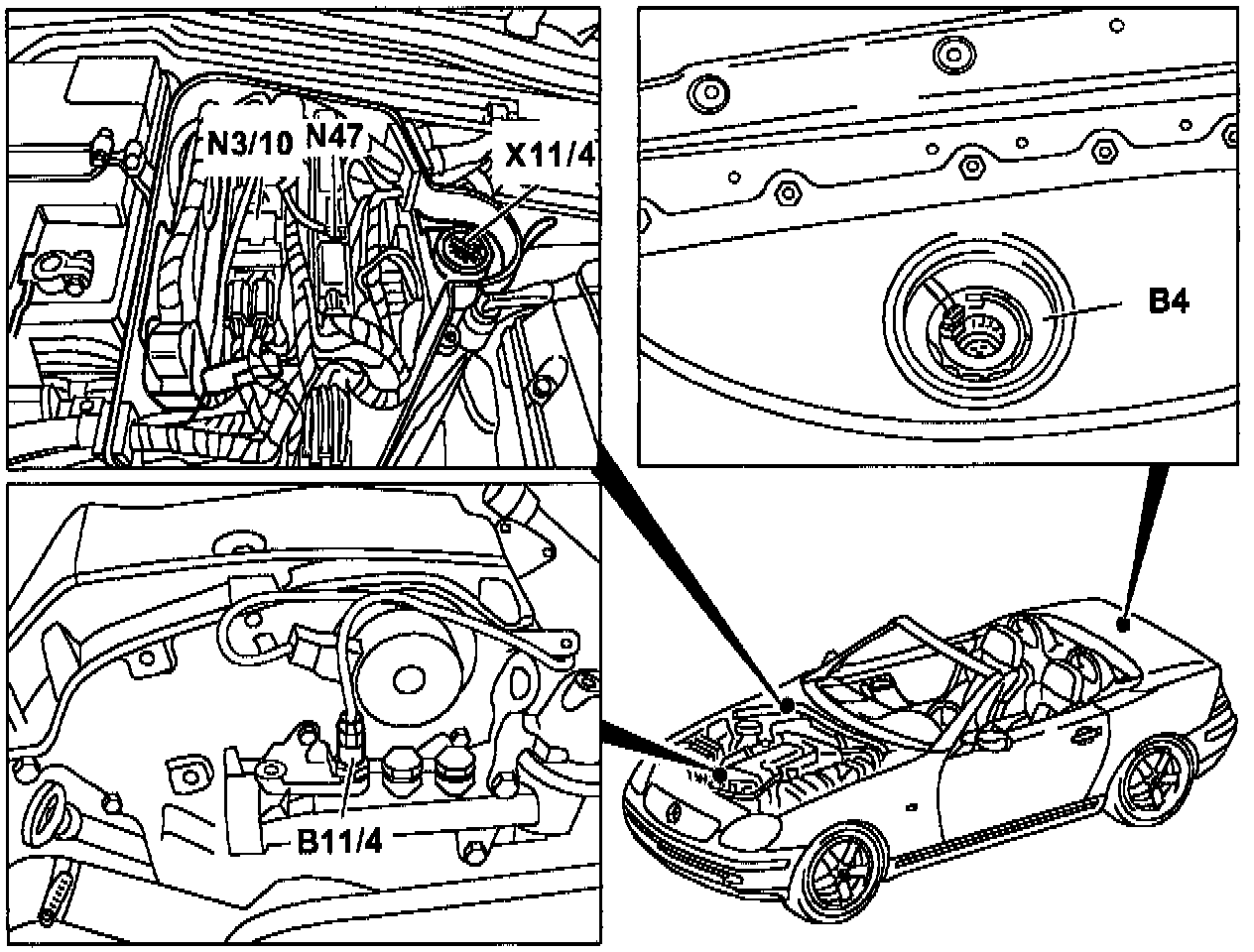

B4 Fuel level sensor
B11/4 ECT sensor (DFI,IFI)
N3/10 Engine control module (ME-SFI)
N47 Traction system control module
X11/4 Data link connector (DTC readout)
