B3.1 - Engine Compartment (Left)


Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - engine compartment (left)

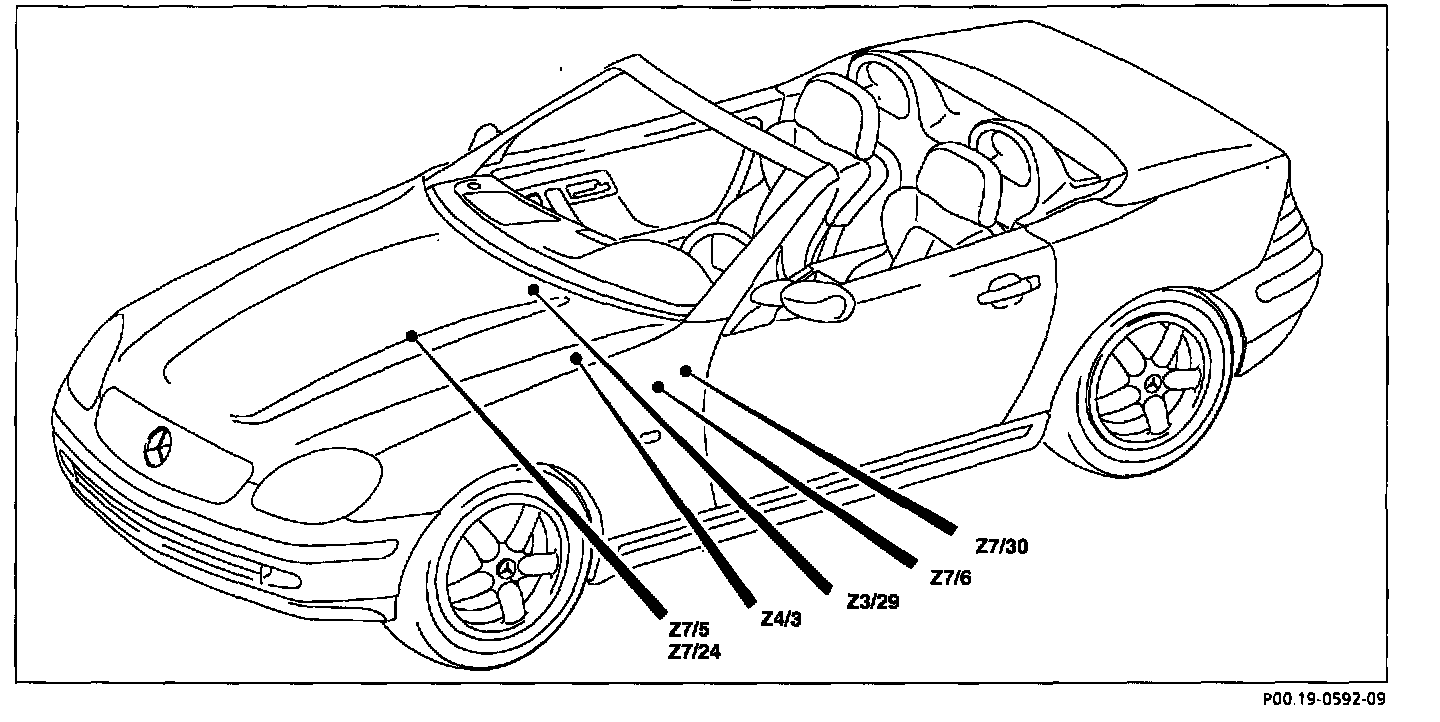

Arrangement





Assignment

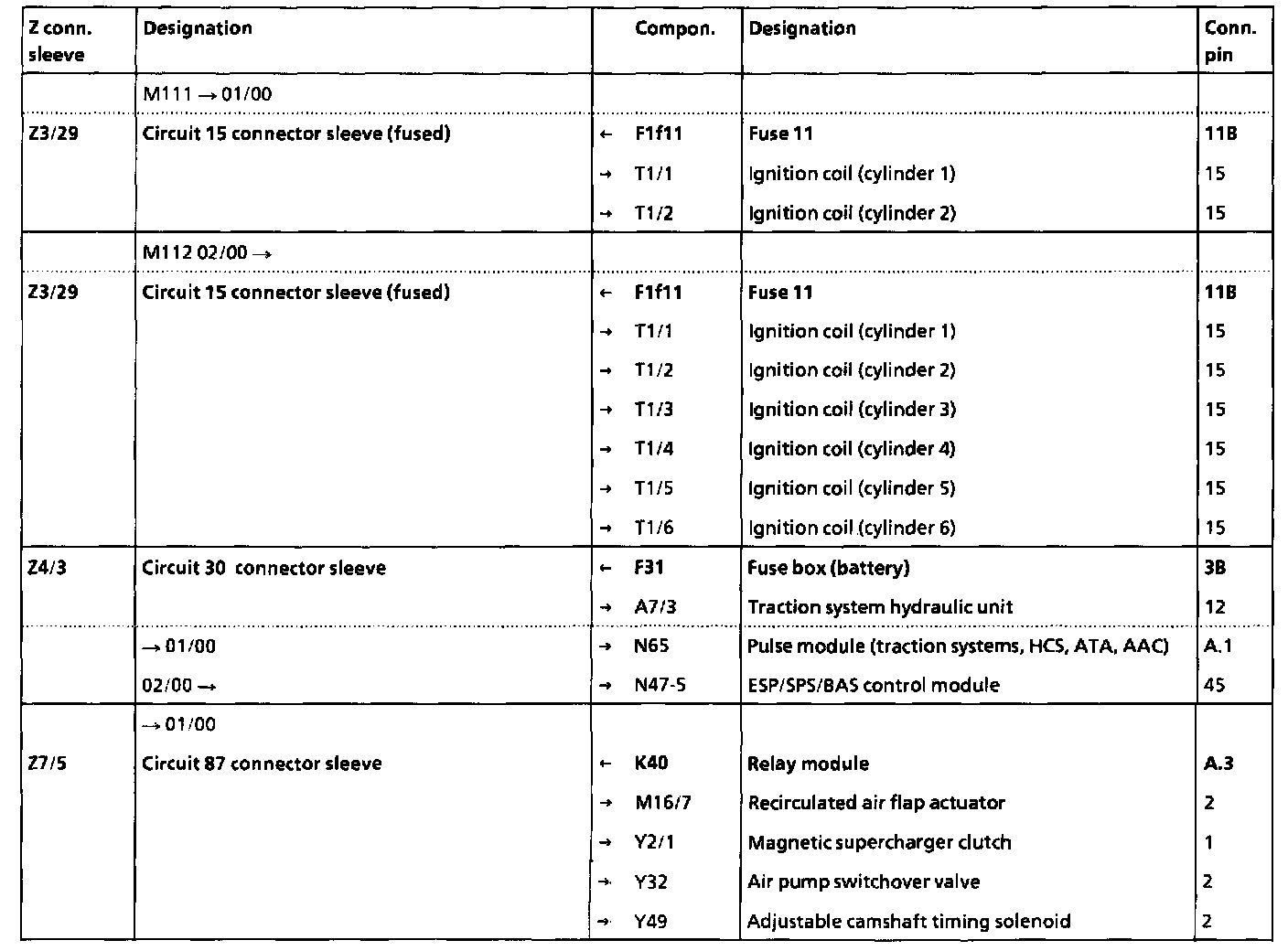

Z3/29 - Z7/5:

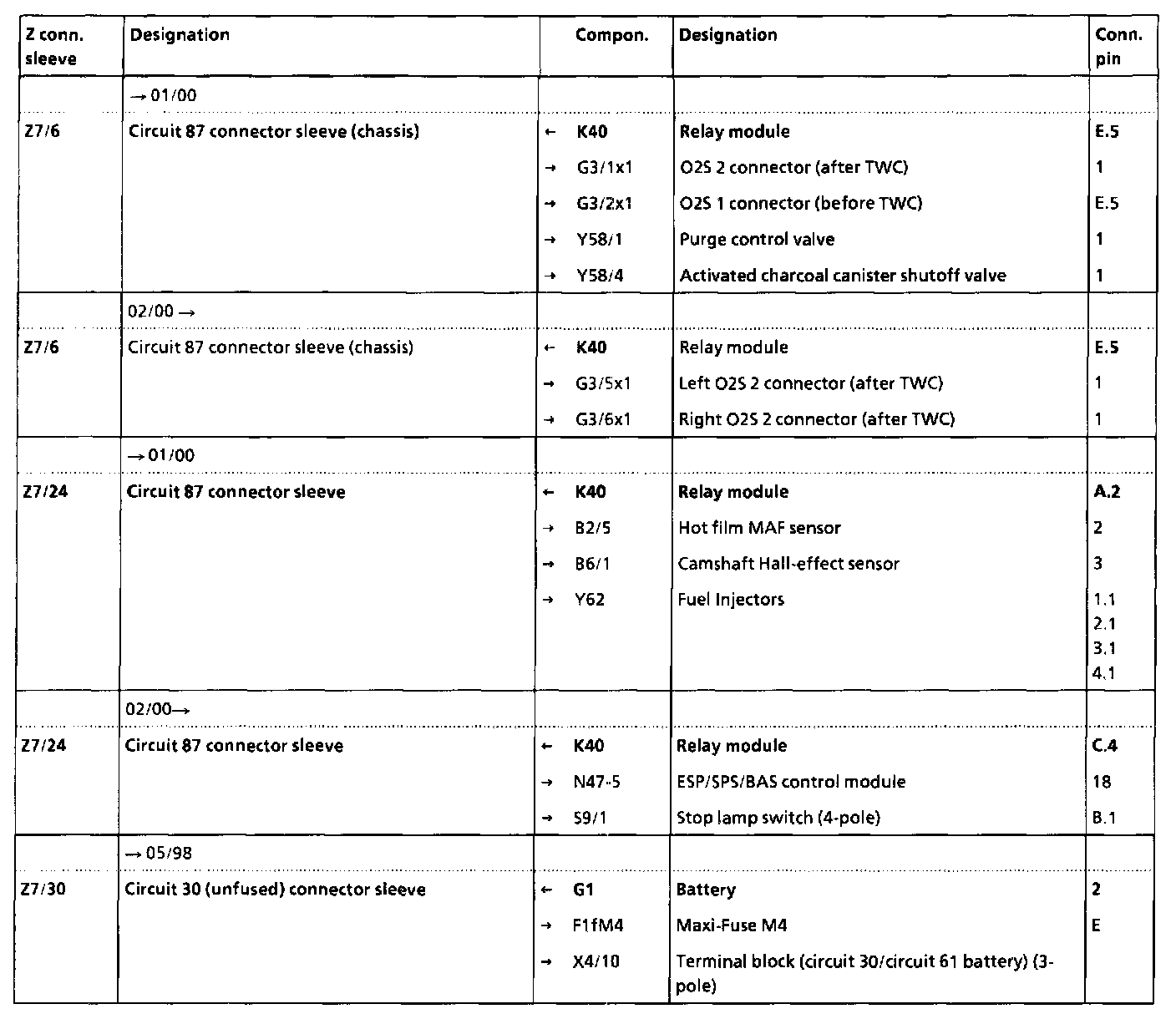

Z7/6 - Z7/30:
