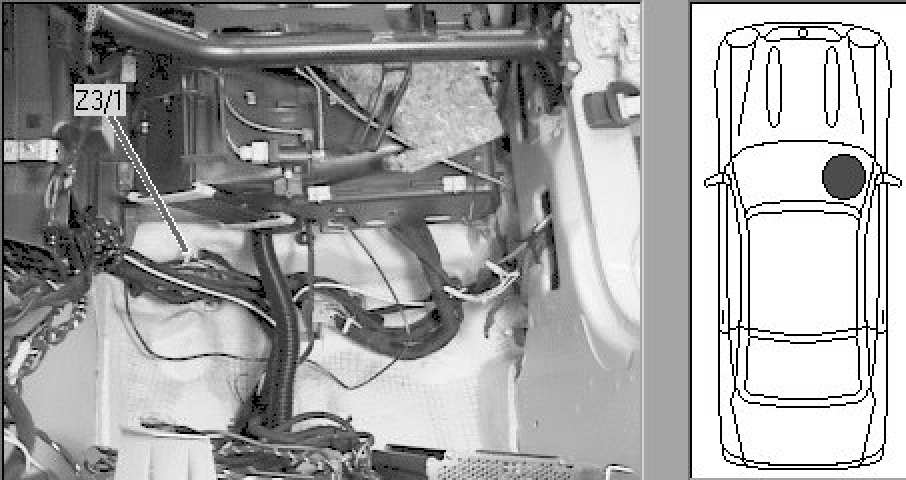

Z3/1 - Circuit 15 Solder Splice (Auto A/C)
Z3/1 - Circuit 15 Solder Splice (Auto A/C)
In passengers footwell, against firewall or kickpanel
