Mercedes Benz
>>
2000
>>
SLK 230 (170.447) L4-2.3L SC (111.973)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
System Diagram
>>
Cycle Module (N65) PE54.21-U-2100RA (As of 3/1/00)
Cycle Module (N65) PE54.21-U-2100RA (As of 3/1/00)
Cycle Module (N65) From Mar 1, 2000

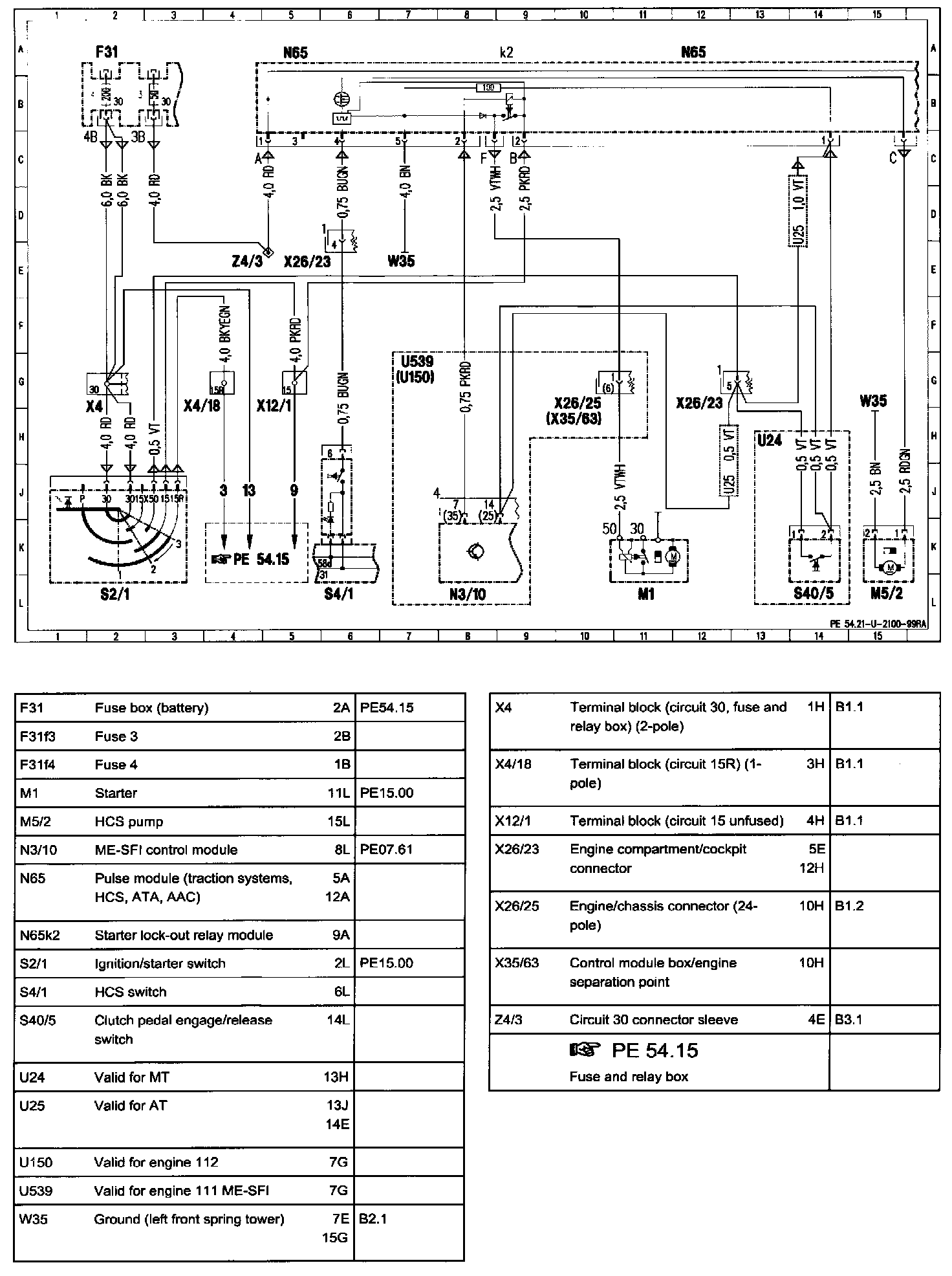

Wiring Diagram:

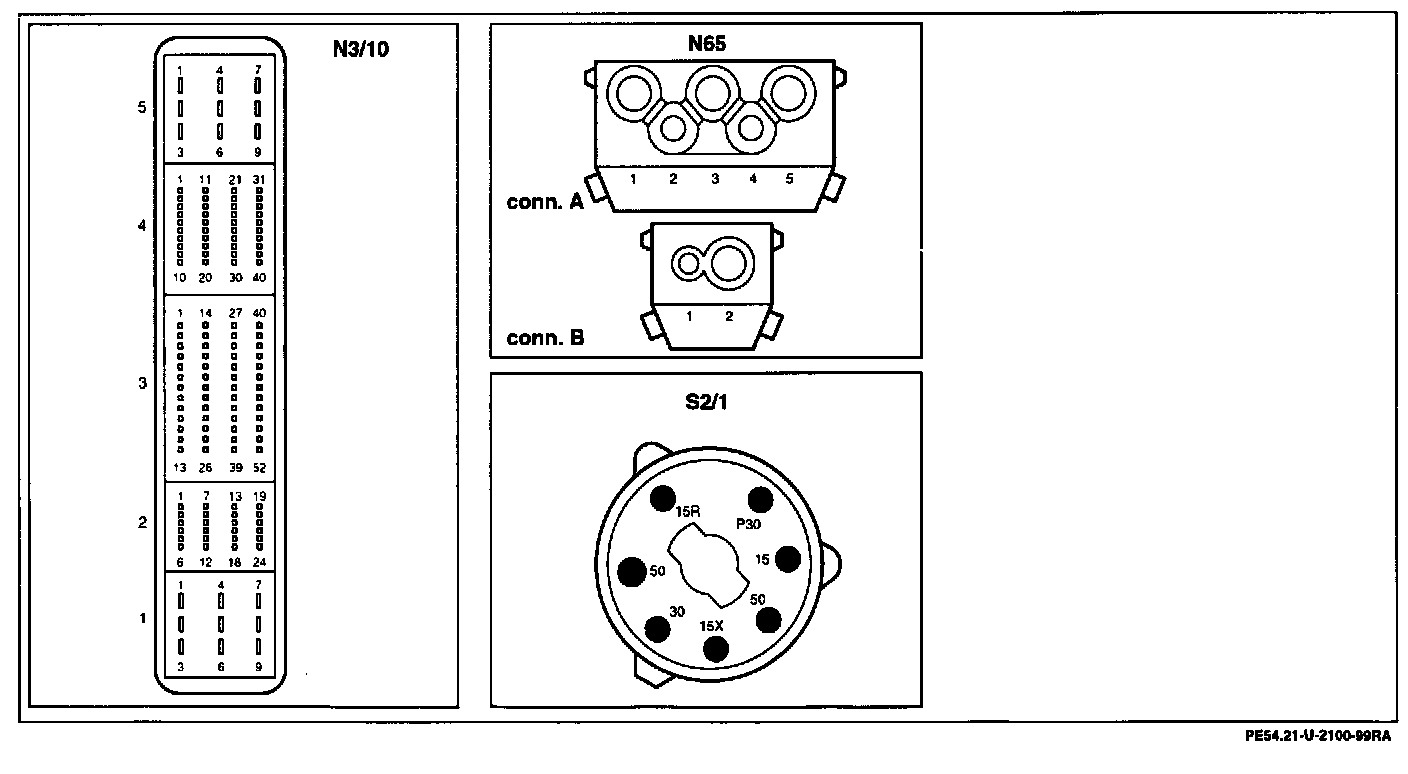

Connector Assignment:

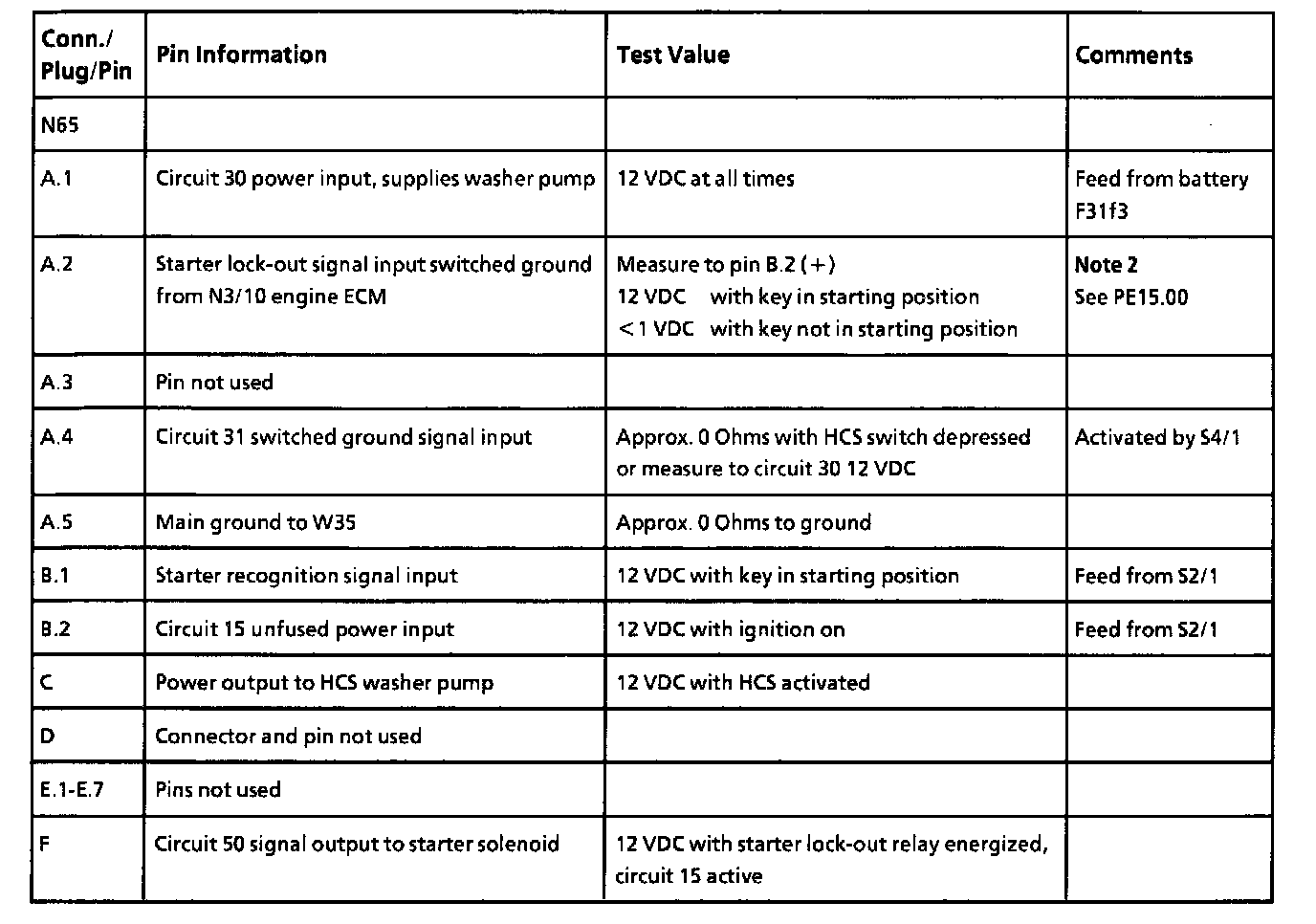

Pin Information:
