Airbags PE91.60-U-2000RA (From Mar 1, 2000)
Airbags PE91.60-U-2000RA (From Mar 1, 2000)
Airbags From 3/1/00

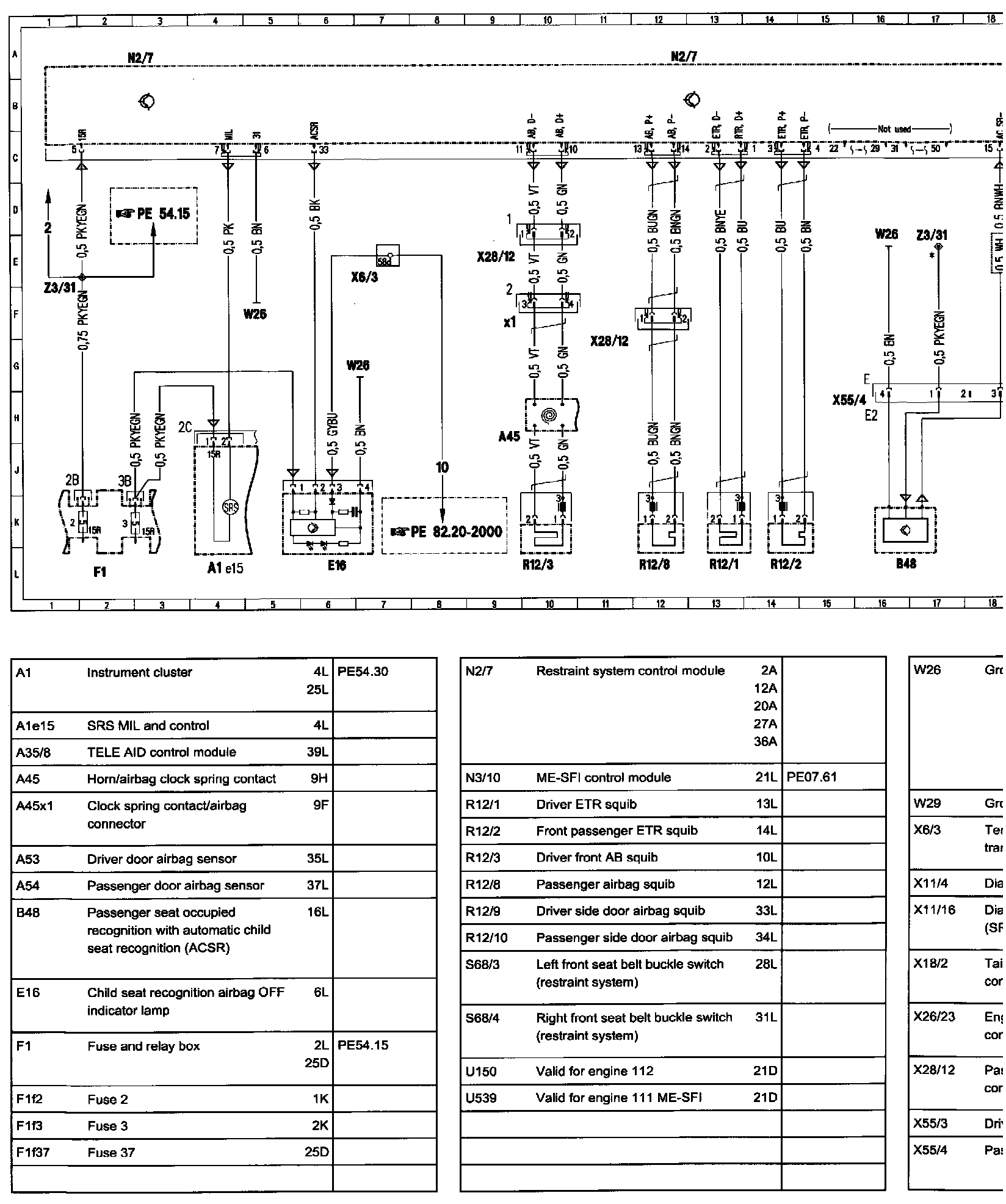

���6��6Wiring Diagram:
Connector Assignment:
Pin Information, Part 1:
Pin Information, Part 2:
