Fuse and Relay Module (K40) PE54.20-U-2000RA (As of Mar 1, 2000)
Fuse and Relay Module (K40) PE54.20-U-2000RA (As of Mar 1, 2000)
Fuse and
Relay Module
(K40) From Mar 1, 2000

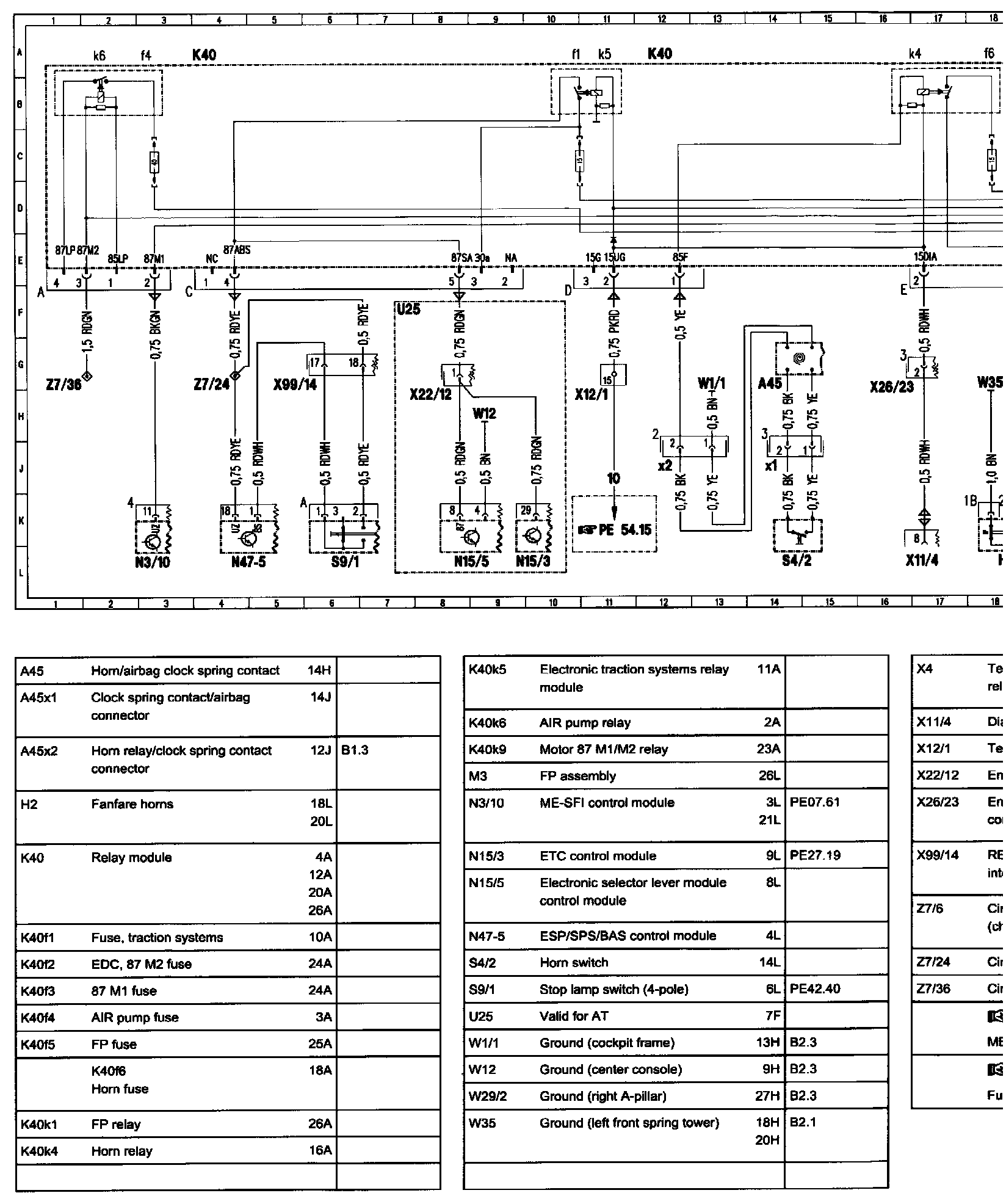

x�SWiring Diagram:

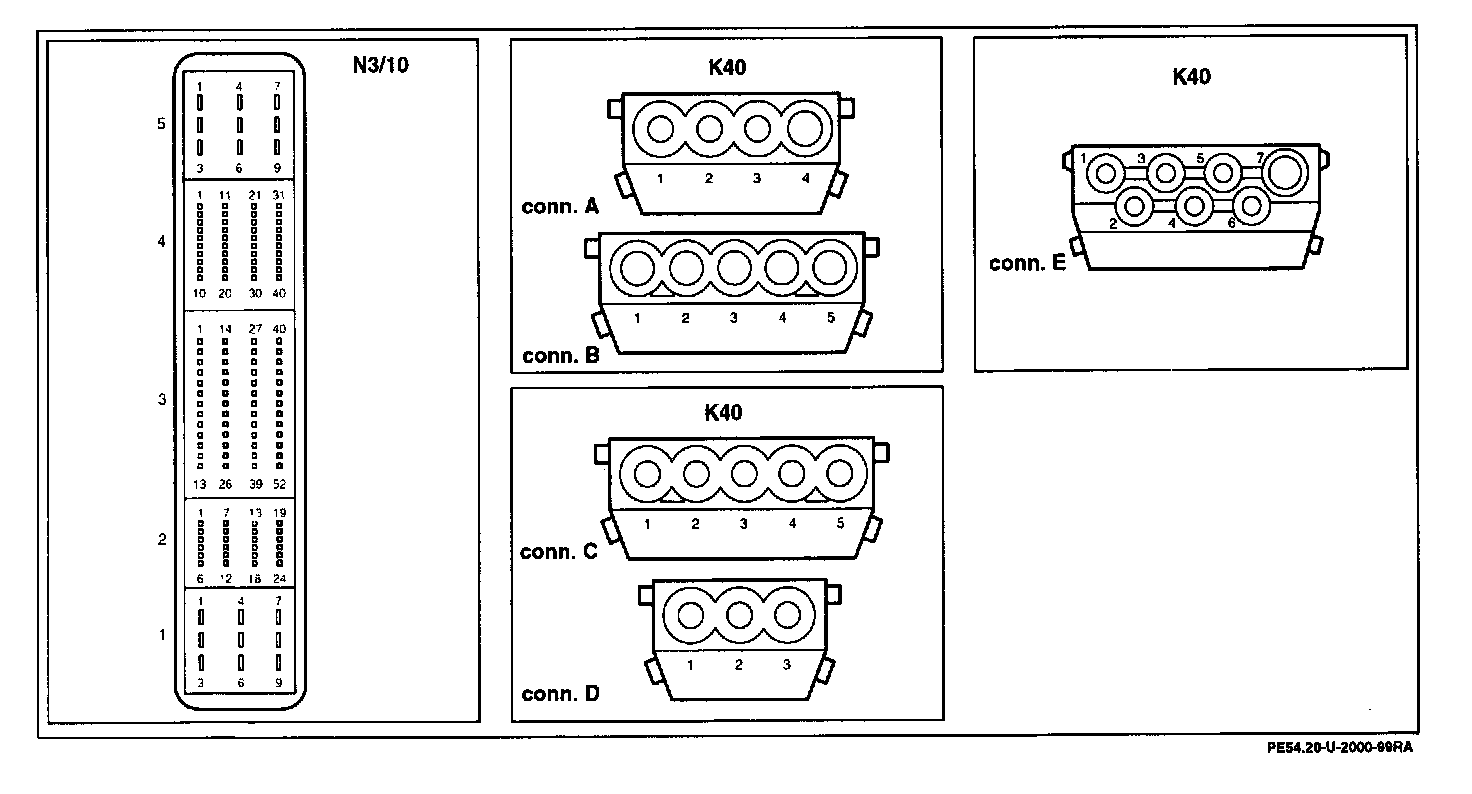

Connector Assignment:

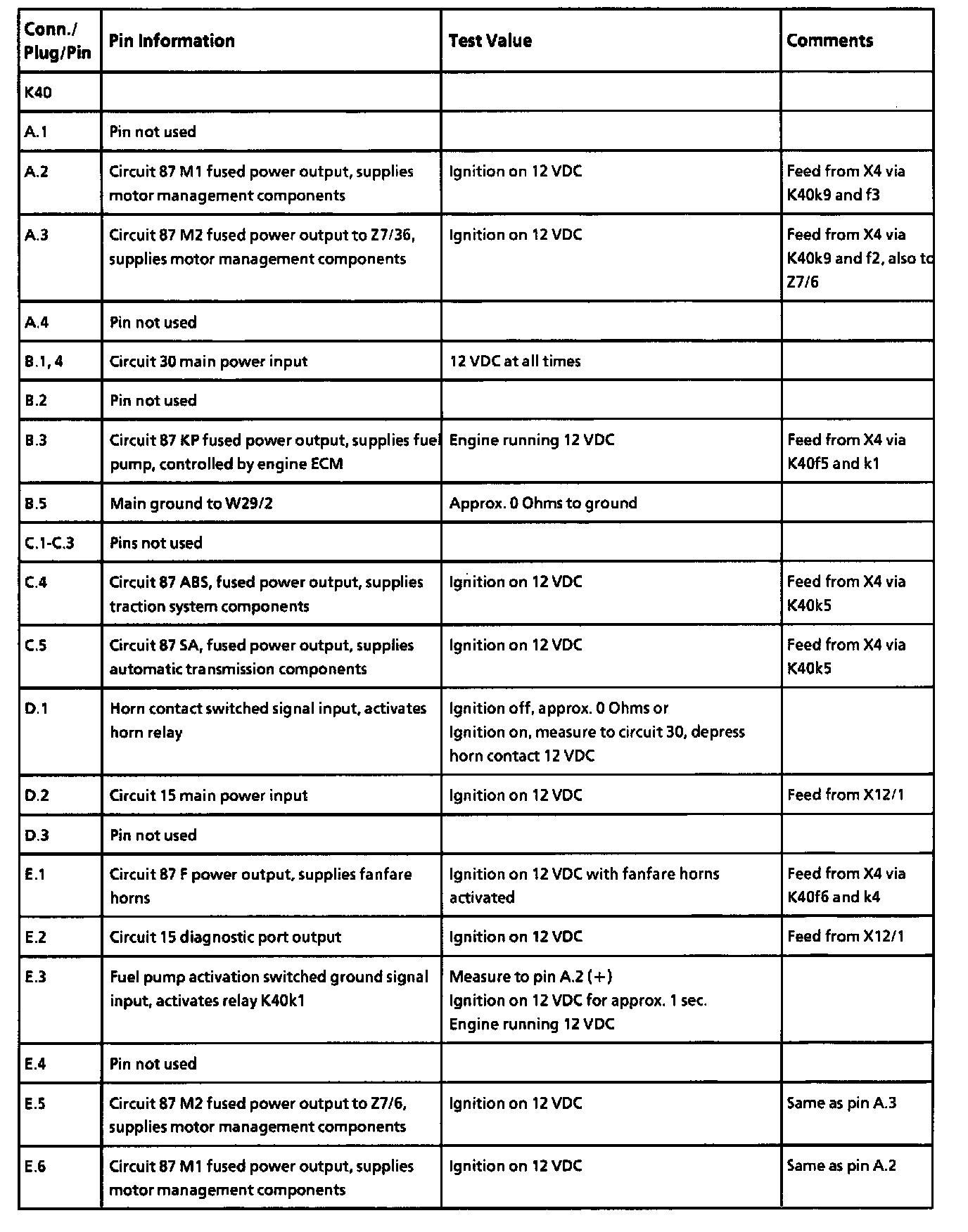

Pin Information:
