Fuse and Relay Module (K40) PE54.20-U-2000D (Up to Feb 28,2000)
Fuse and Relay Module (K40) Up to Feb 28, 2000

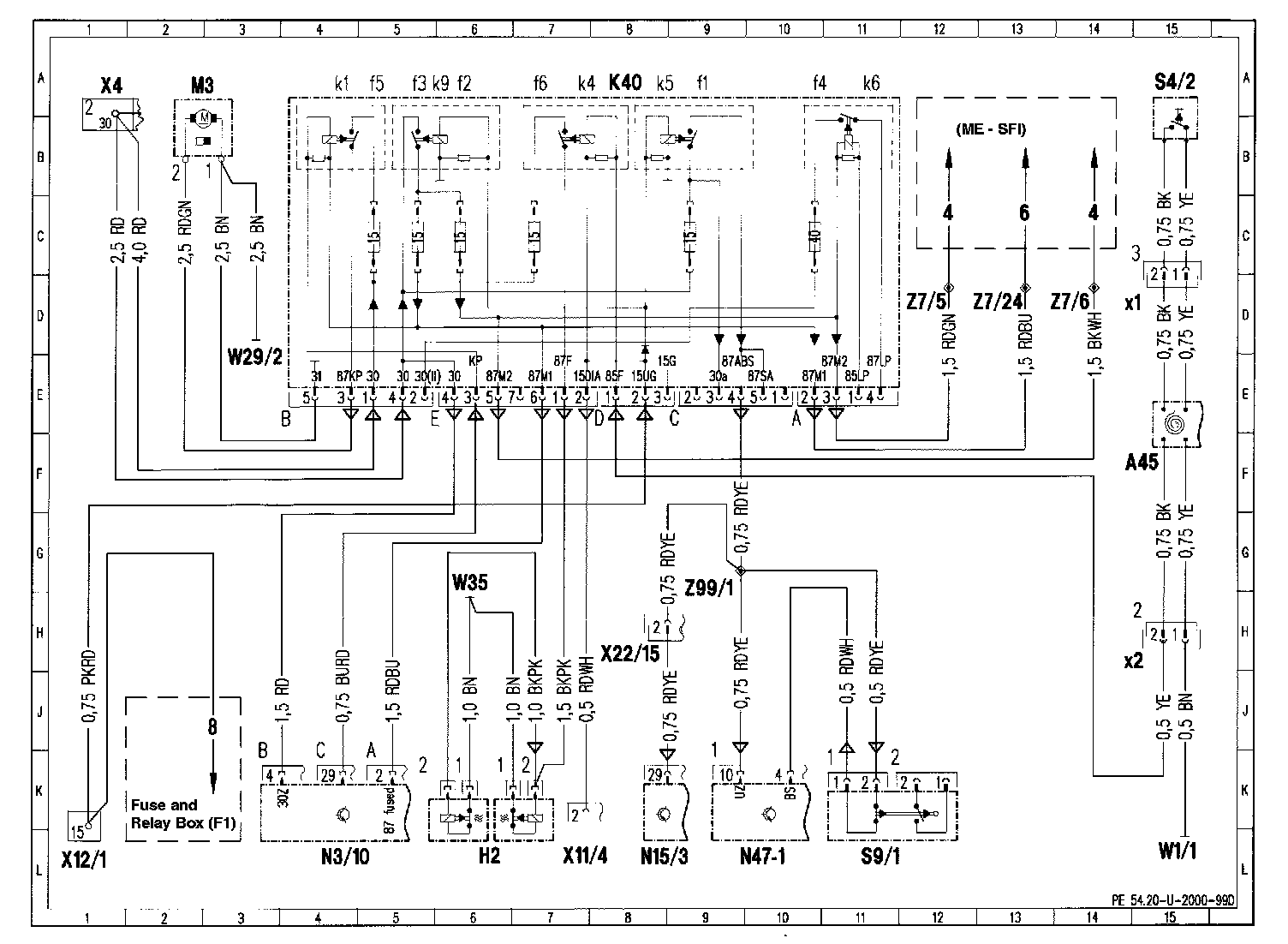

Wiring Diagram
Component Grid Location

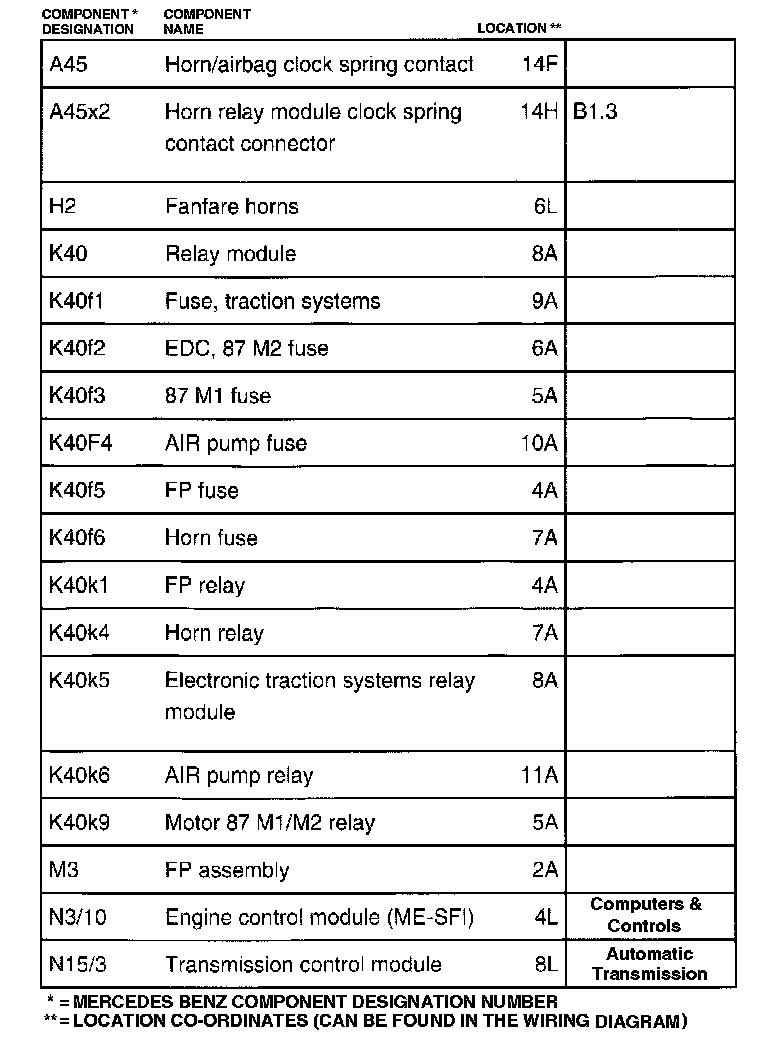

A45 - N15/3:

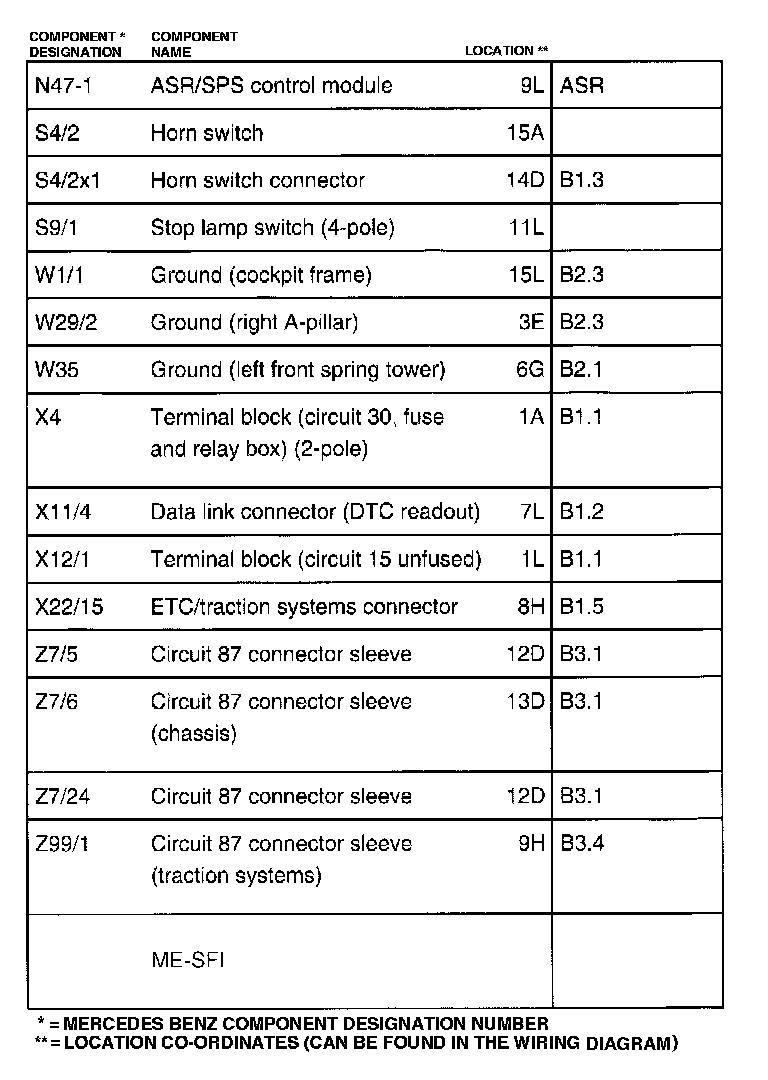

N47-1 - Z99/1 (Part 1 Of 2):
N47-1 - Z99/1 (Part 2 Of 2):

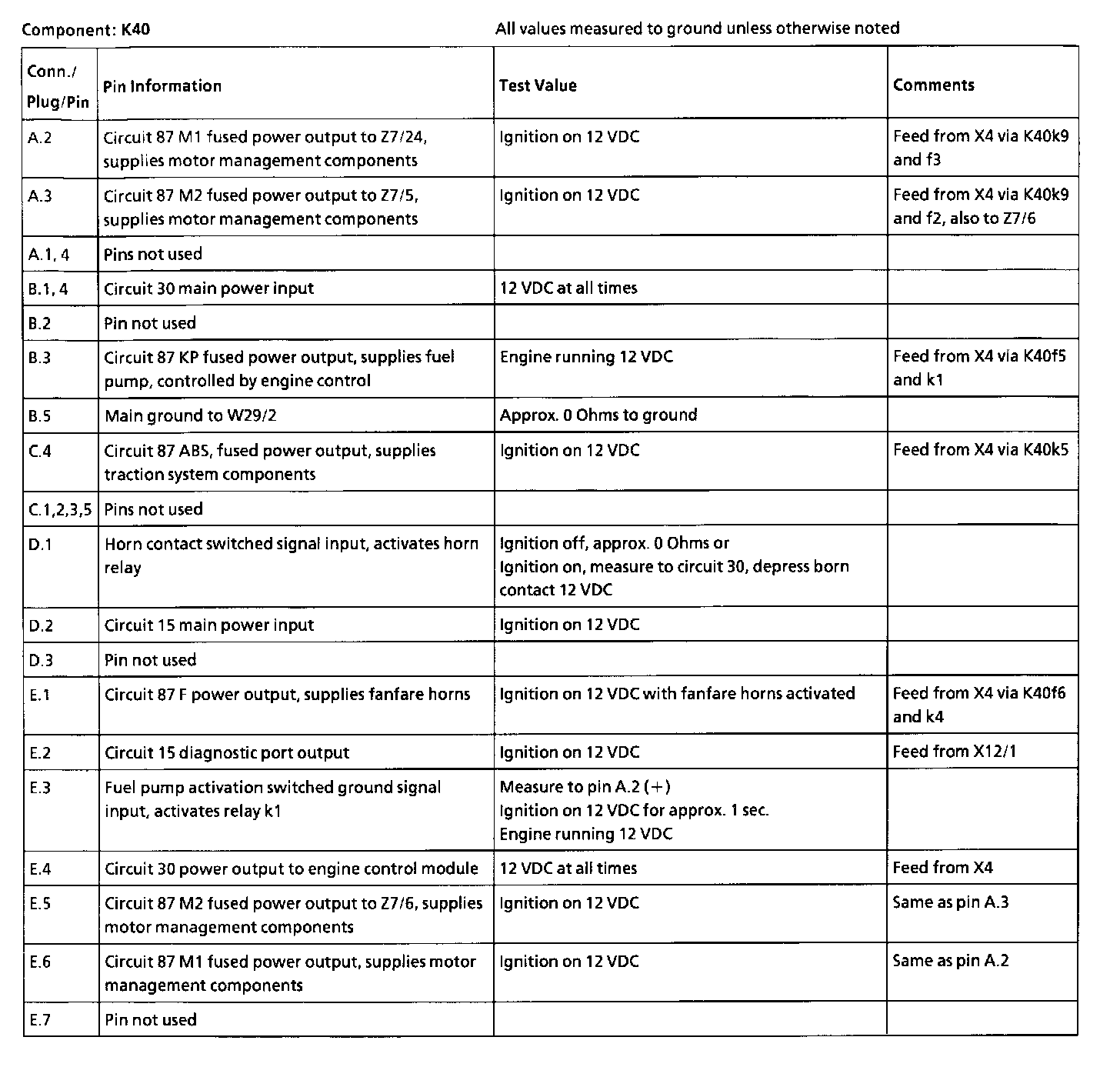

Pin-Out Testing - Component: K40
Connector A - Pin 2 Through E - Pin 7:
Connector Views:
