ME-SFI Fuel Injection/Ignition System PE07.61-U-2000RA (As of 3/1/00)
ME-SFI Fuel Injection and Ignition System
Engine Comp./Frame Floor System Harness - PE07.61-U-2000RA
(From Mar 1, 2000)

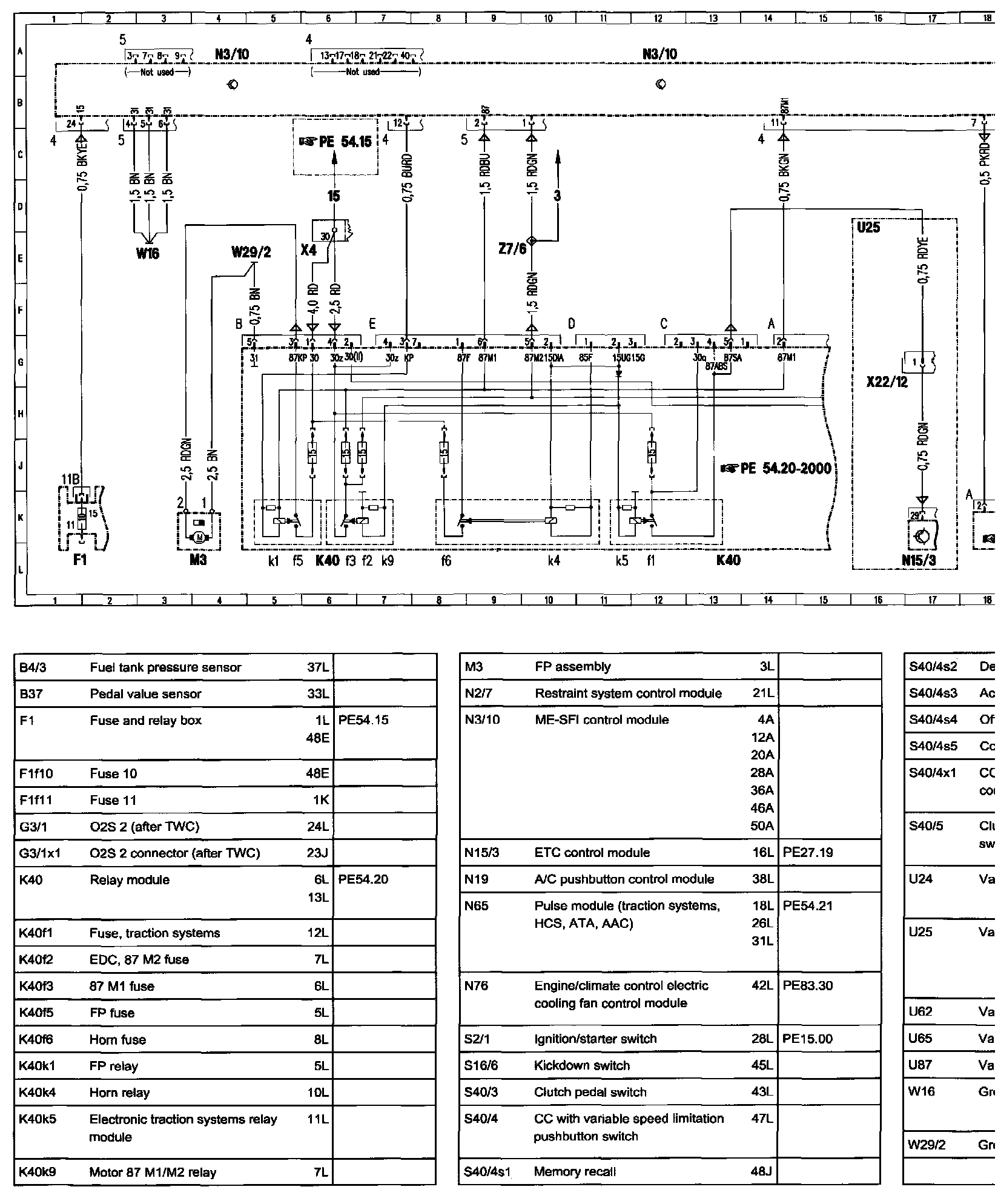

$! ٌ �� Wiring Diagram:

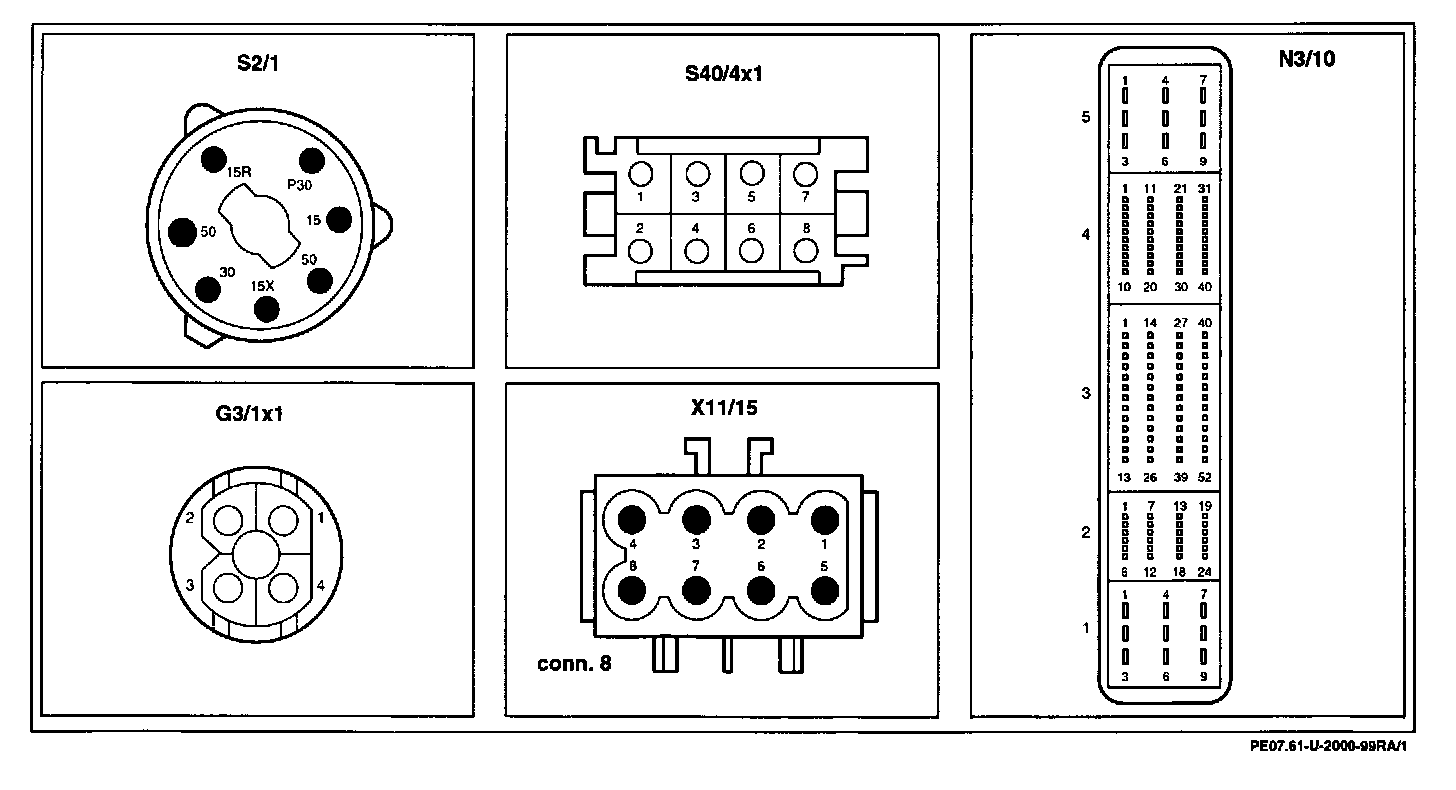

Connector Assignment:

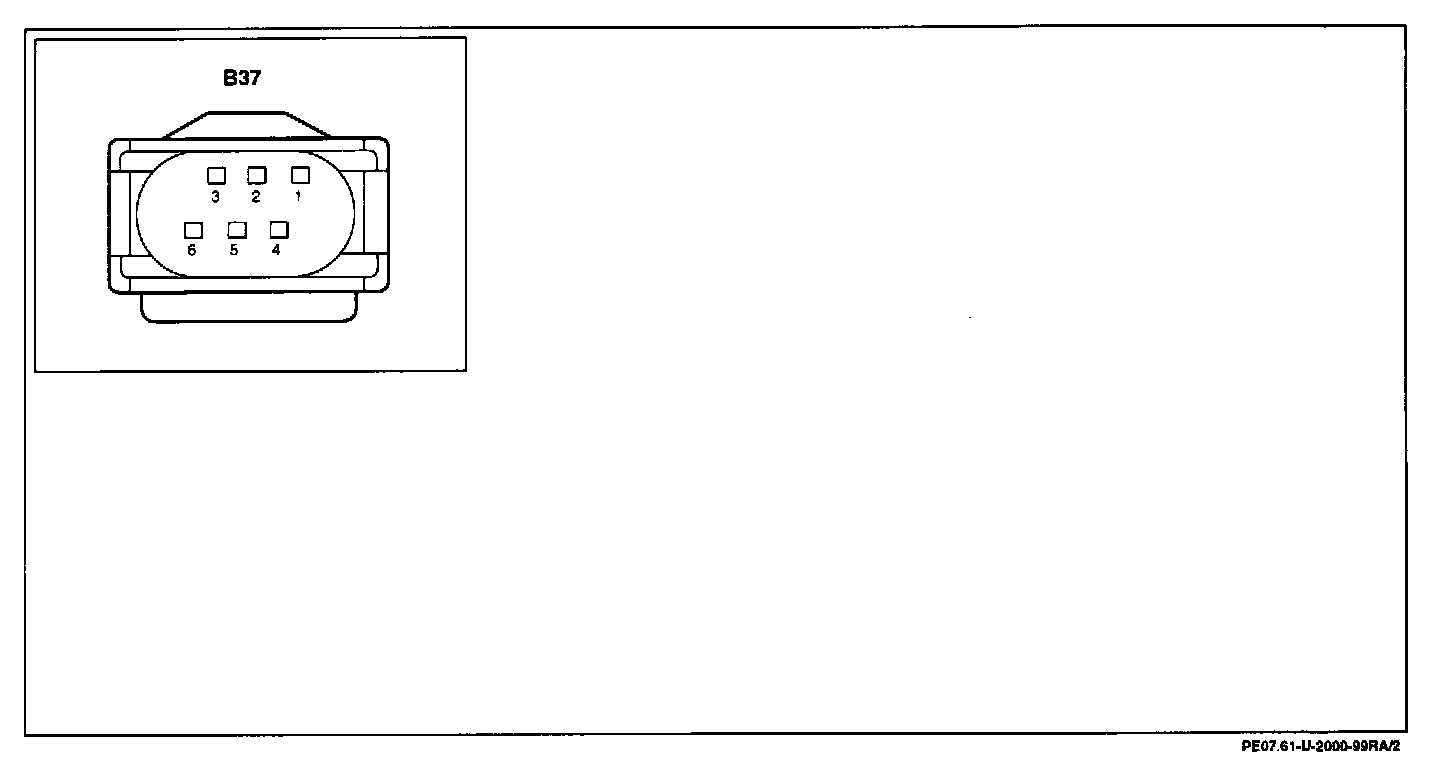

Connector Assignment:

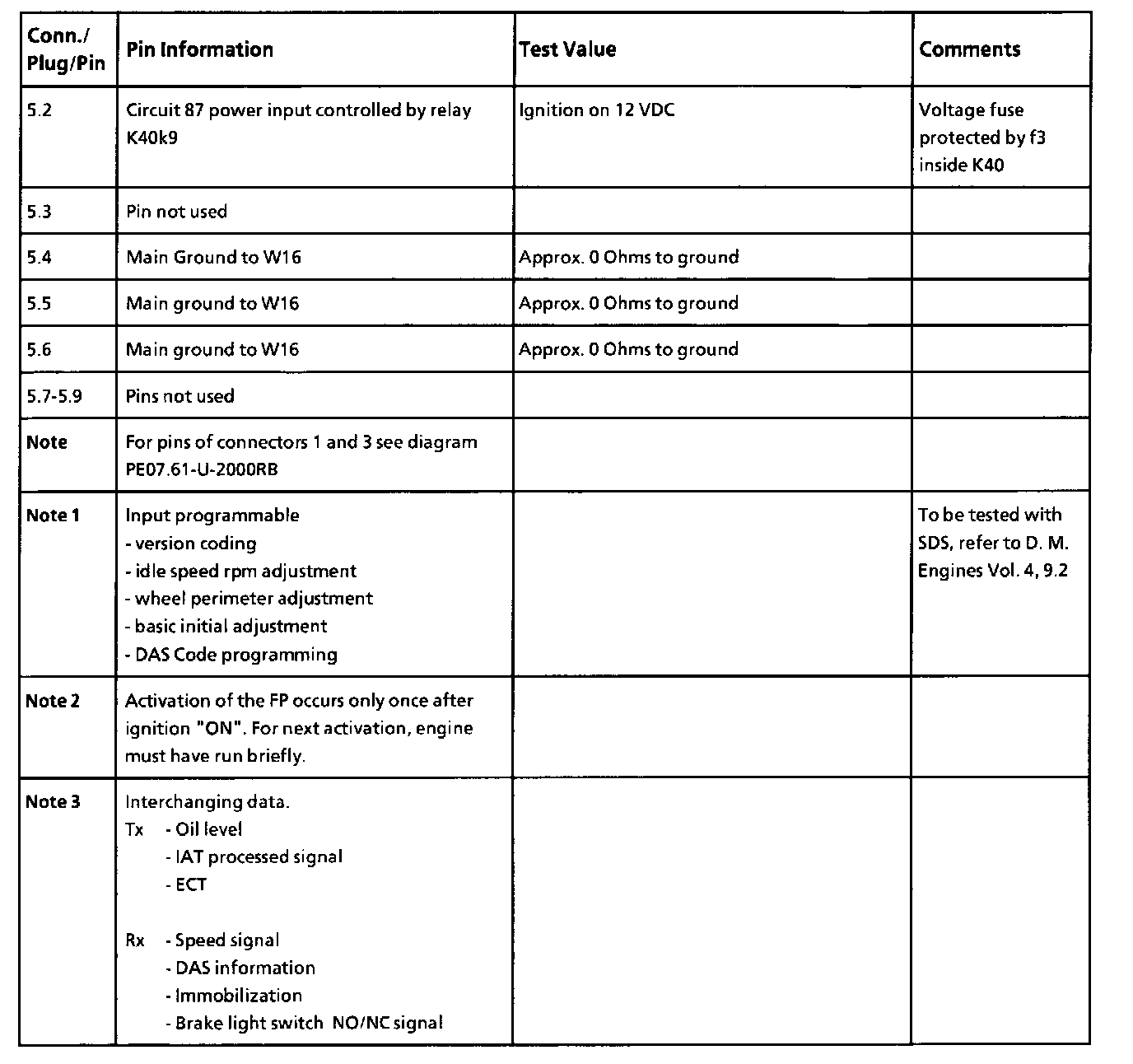

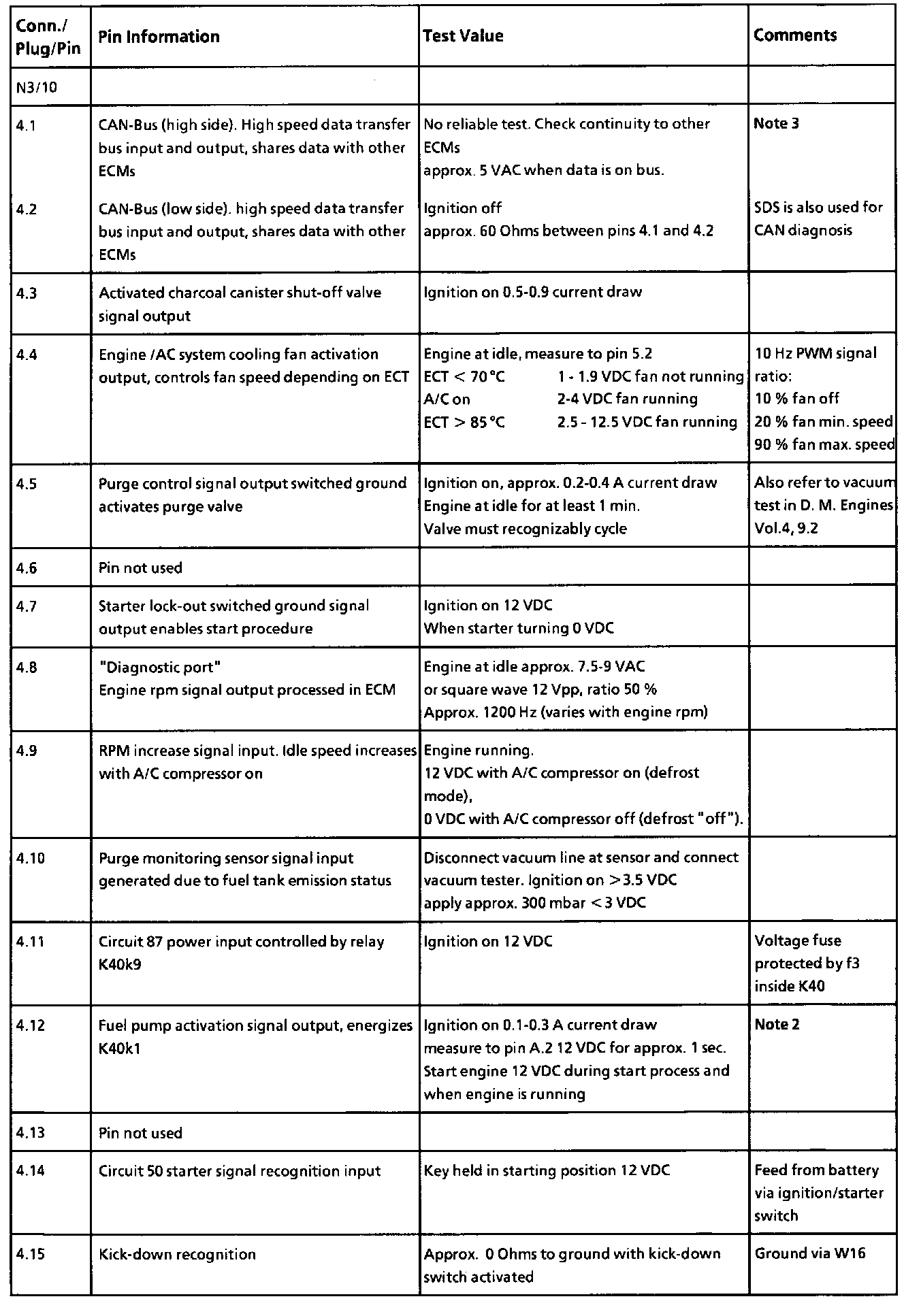

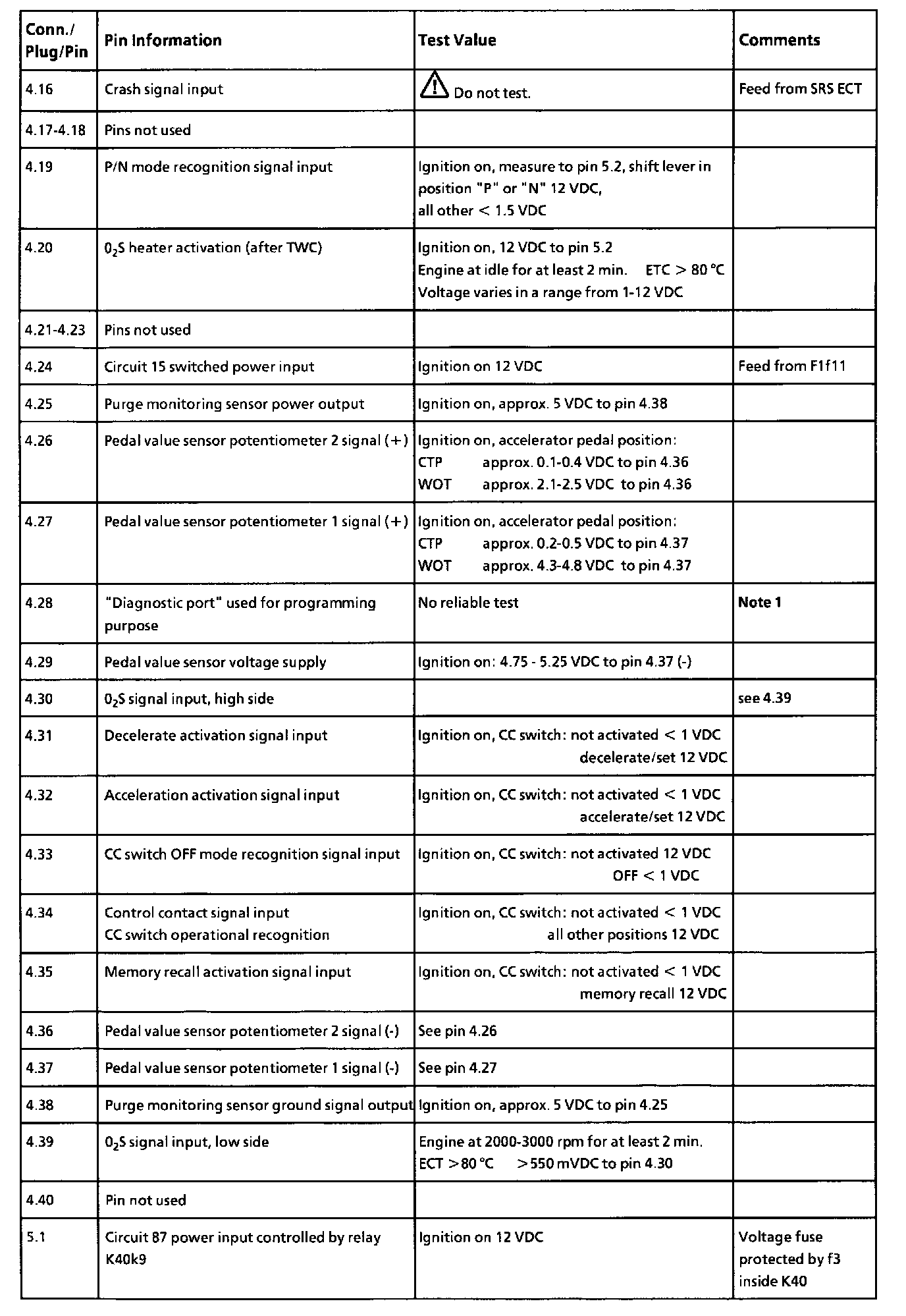

Pin Information, Part 1:
Pin Information, Part 2:
Pin Information, Part 3:
