ME-SFI Fuel Injection/Ignition System PE07.61-U-2000A (Up to 2/28/00)
ME-SFI Fuel Injection and Ignition System
Engine Comp./Frame Floor System Harness - PE07.61-U-2000A
(Up to Feb 28, 2000)
Wiring Diagram
X' g u� :
Component Grid Location

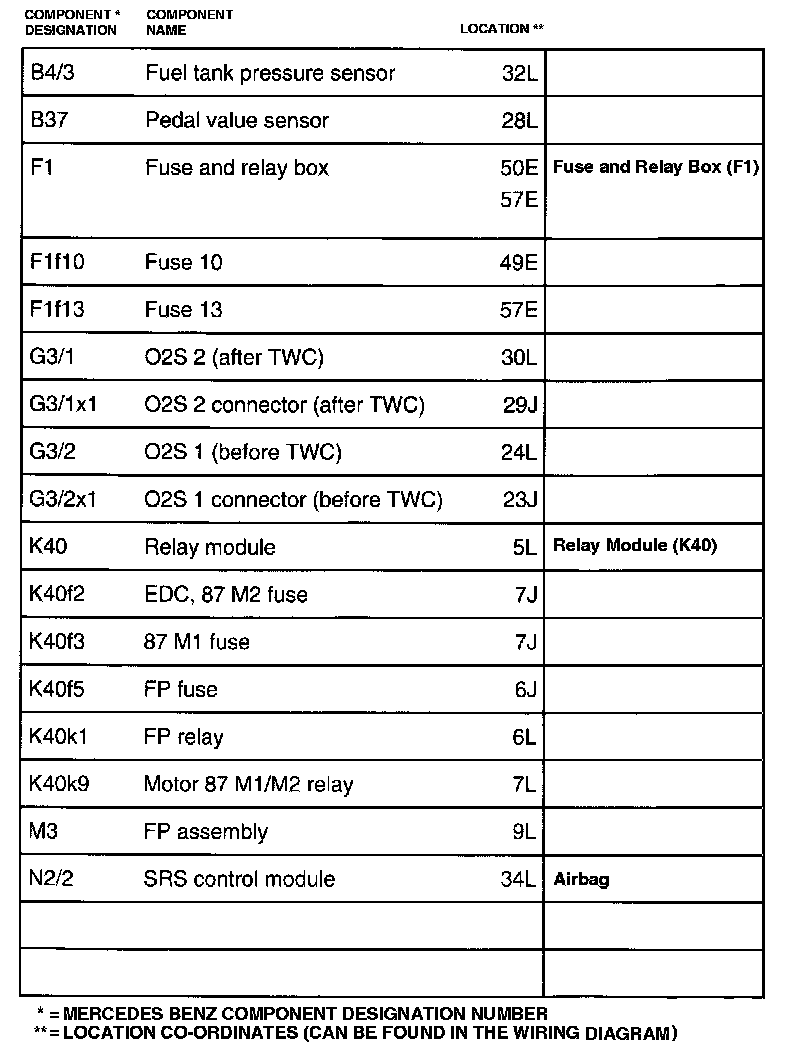

B4/3 - N2/2:

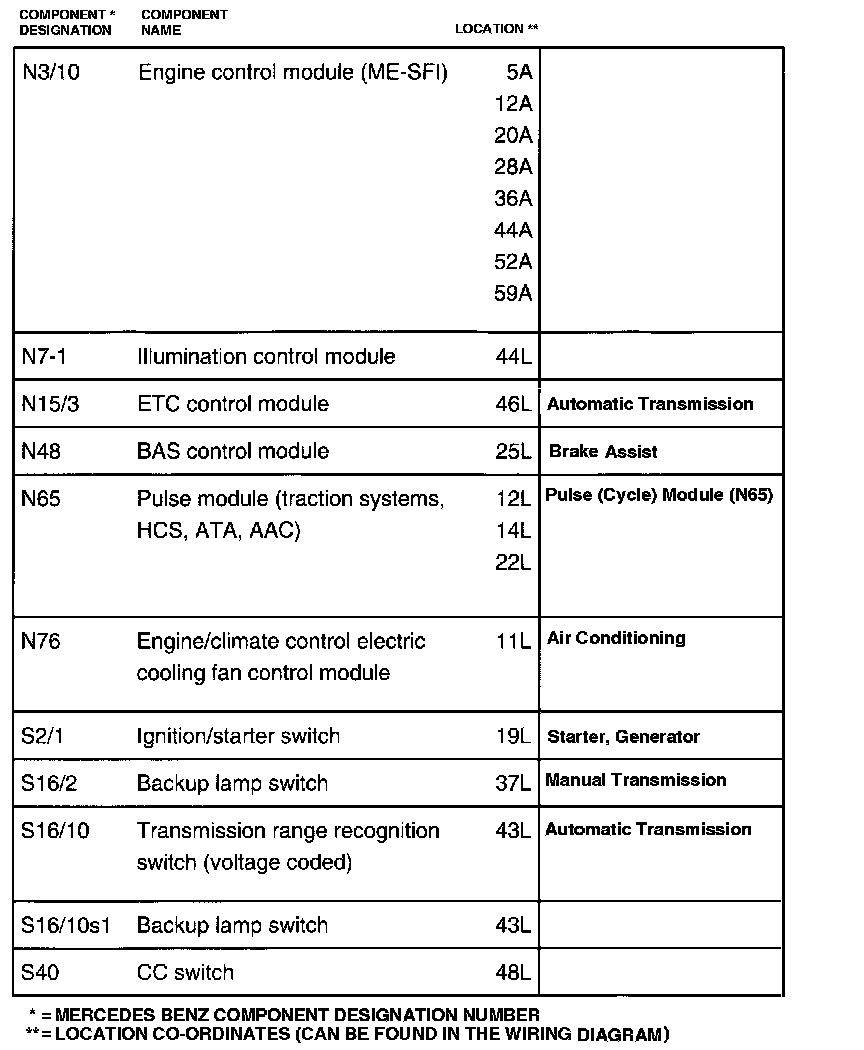

N3/10 - S40:
S40/3 - X11/4:

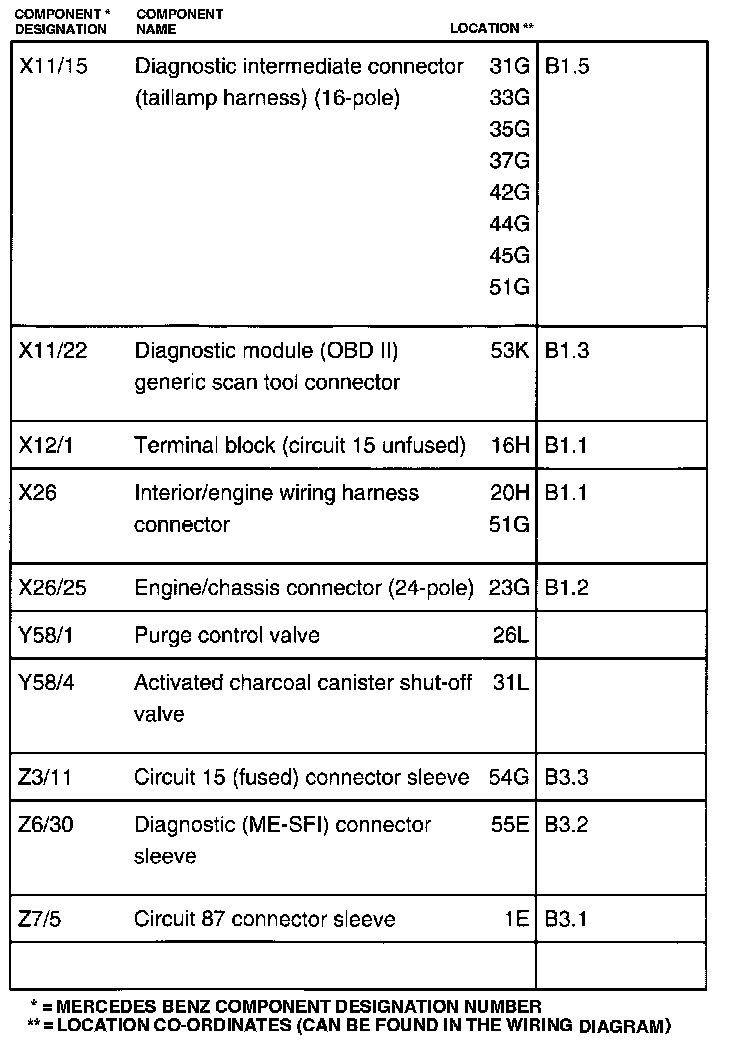

X11/15 - Z7/5:
Z7/6 - Z37/3:
Pin-Out Testing - Component: N3/10 - Engine Control Module

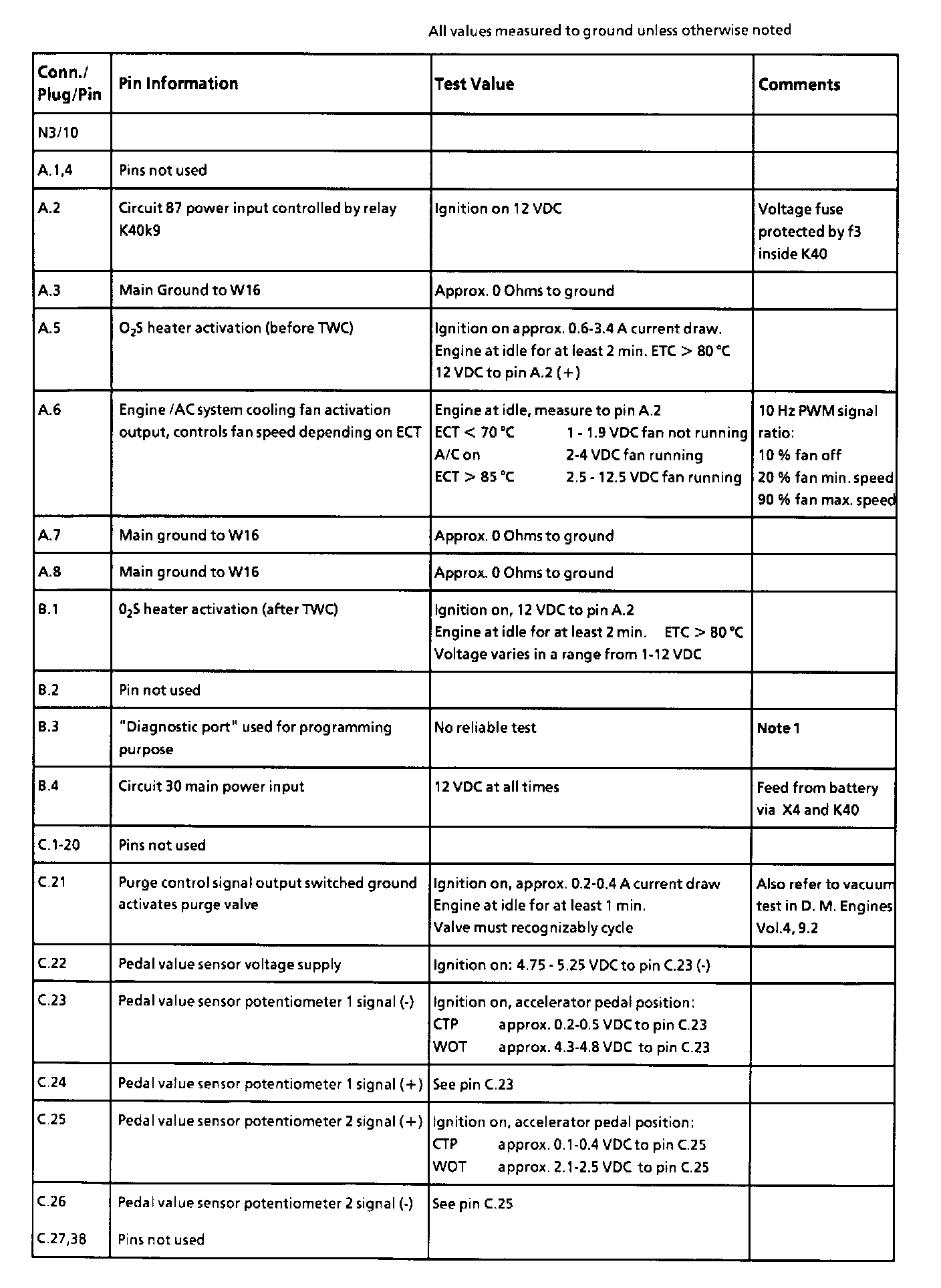

Connector N - Pin 3 Through C - Pin 38:

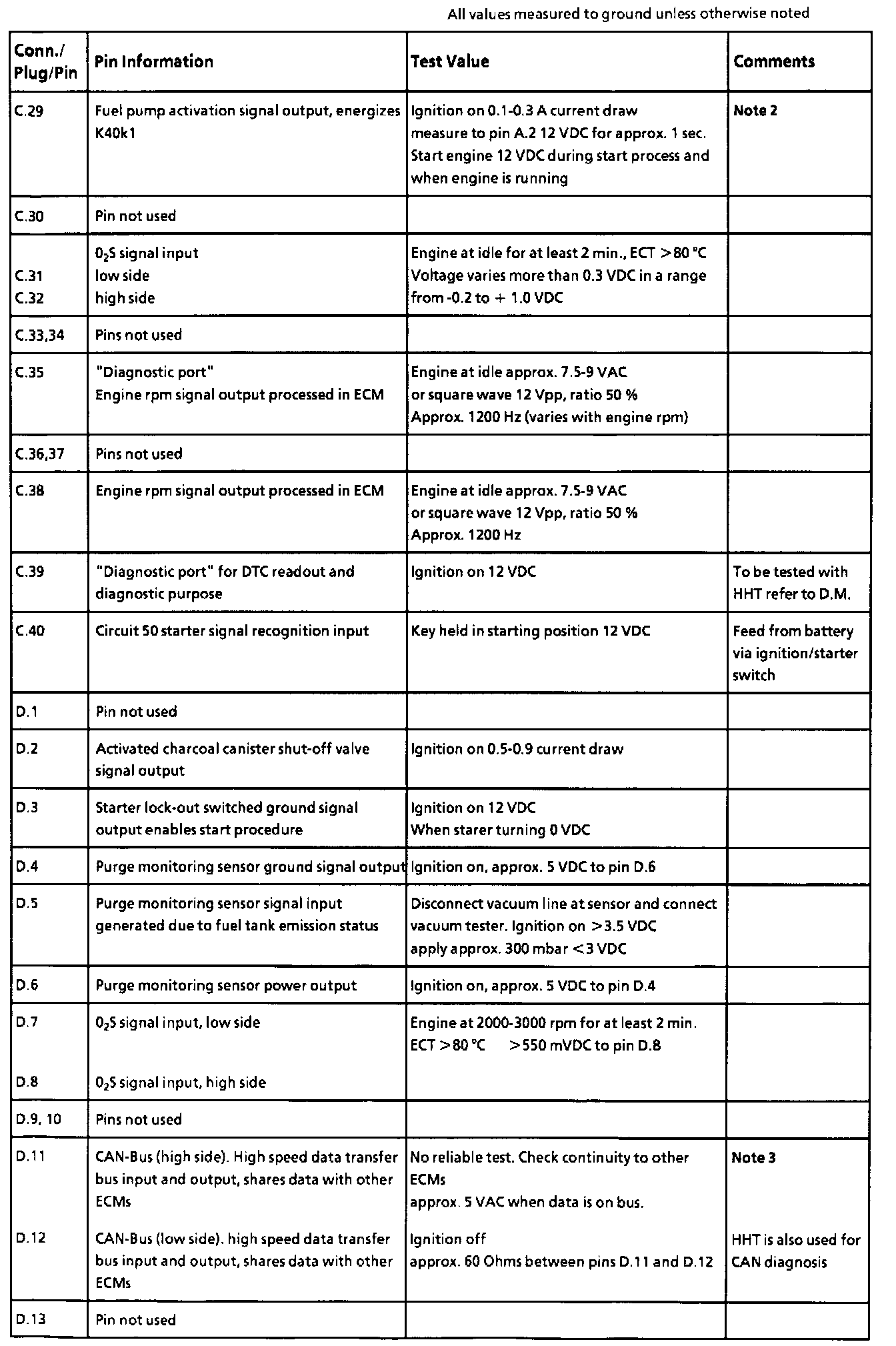

Connector C - Pin 29 Through D - Pin 13:

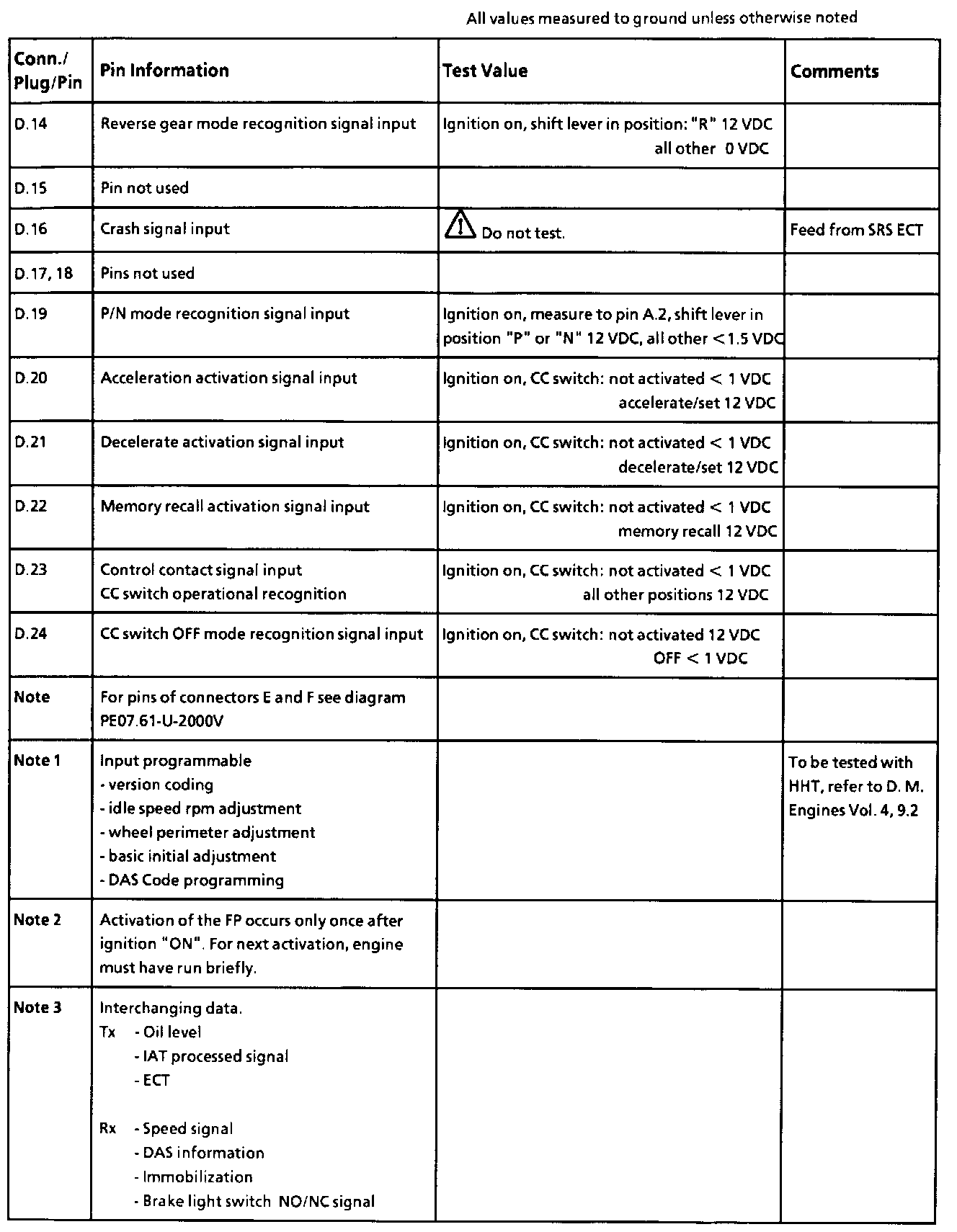

Connector D - Pin 14 Through D - Pin 24:

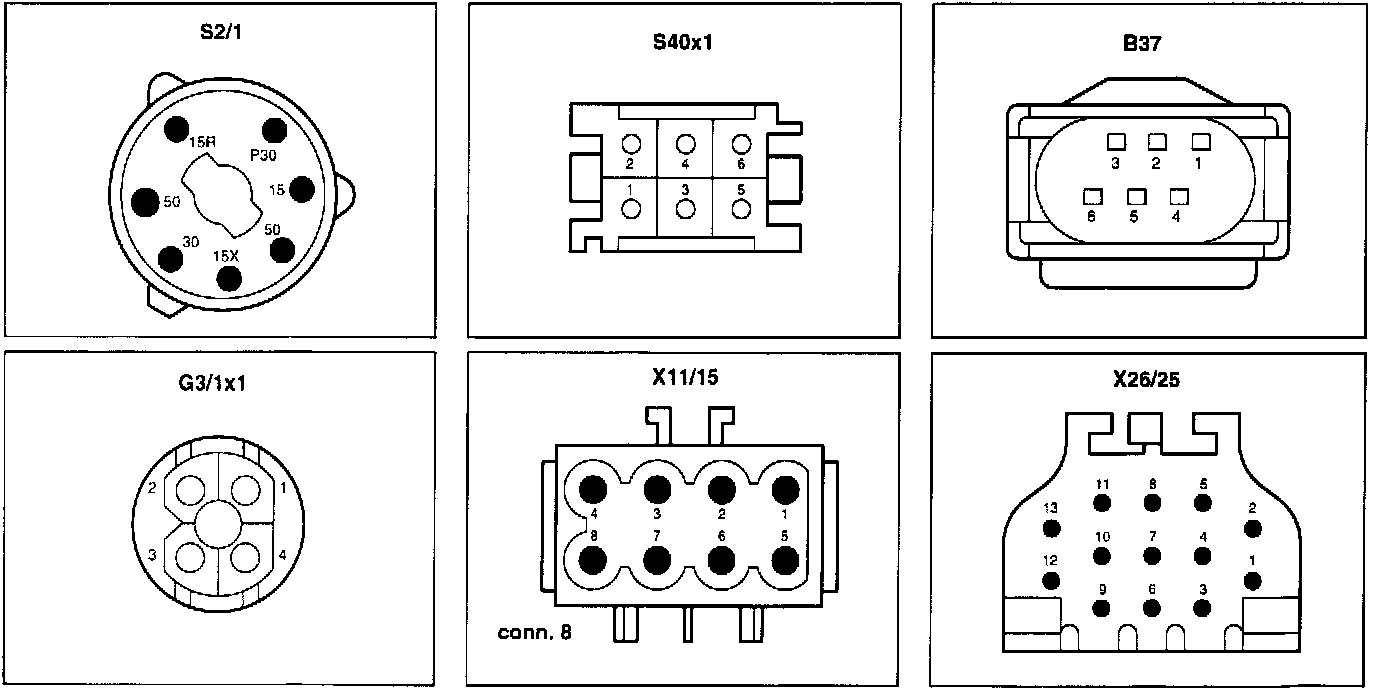

Connector Views Part 1:
Connector Views Part 2:
